Allen-Bradley 800T-FXNP16GA7
Allen-Bradley 800T-FXNP16GA7 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Push-Pull Device.
The Allen-Bradley 800T-FXNP16GA7 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Type: 30mm Push-Pull Device; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Standard Mushroom Cap; Contact block configuration: 1 NCLB, 1 NC, standard contact block (800T-XA7); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: 14 - 18 AWG (x2); Contact block thermal current rating: 10 A. The complete technical table is shown in the Specifications tab on this page.
| Contact block configuration | 1 NCLB, 1 NC, standard contact block (800T-XA7) |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Estimated Lead Time | 5 days |
| Hazardous location rating | False |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Transformer |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Mushroom Head |
| Operator cap/button material | Plastic with Aluminum spinover |
| Operator cap/button shape | Round |
| Operator cap/button size | 40 mm |
| Operator construction/material | Metal |
| Operator function | 3-Position |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator special function | Momentary-out, maintained-center, maintained-in |
| Operator Type | Standard Mushroom Cap |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Suitable for illumination | True |
| Terminations with finger safe covers | False |
| Type | 30mm Push-Pull Device |
| Type of electric connection | Screw connection |
| UPC | 781180150623 |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800T-FXNP16GA7?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-FXNP16GA7?
800T-FXNP16GA7 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800T-FXNP16GA7 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800T-FXNP16GA7 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800T-FXNP16GA7?
Key specifications include Contact block configuration: 1 NCLB, 1 NC, standard contact block (800T-XA7); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-FXNP16GA7 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800T-FXNP16 — Allen-Bradley 800T-FXNP16 Bulletin 800T 30mm non-illuminated push-pull operator with red 40mm cap,…
- 800T-FXNP16AA7 — 800T PB,30mm Push Pull Device,Mom Maint Mom, Mushroom Head,No Twist Release,120V AC…
- 800T-FXNP16GA — 800T PB,30mm Push Pull Device,Mom Maint Mom, Mushroom Head,No Twist Release,120V AC…
- 800T-FXNP16RA7 — 800T PB,30mm Push Pull Device,Mom Maint Mom, Mushroom Head,No Twist Release,120V AC…
- 800T-FXNP16WA7 — Allen-Bradley 800T-FXNP16WA7 30mm Bulletin 800T non-illuminated push-pull operator switch with two-position red…
- 800T-FXNP16XA7 — Allen-Bradley 800T-FXNP16XA7 30mm non-illuminated push-pull operator from the Bulletin 800T heavy-duty line.…
- 800T-FXNP26XA7 — 800T PB,30mm Push Pull Device,Mom Maint Mom, Mushroom Head,No Twist Release,240V AC…

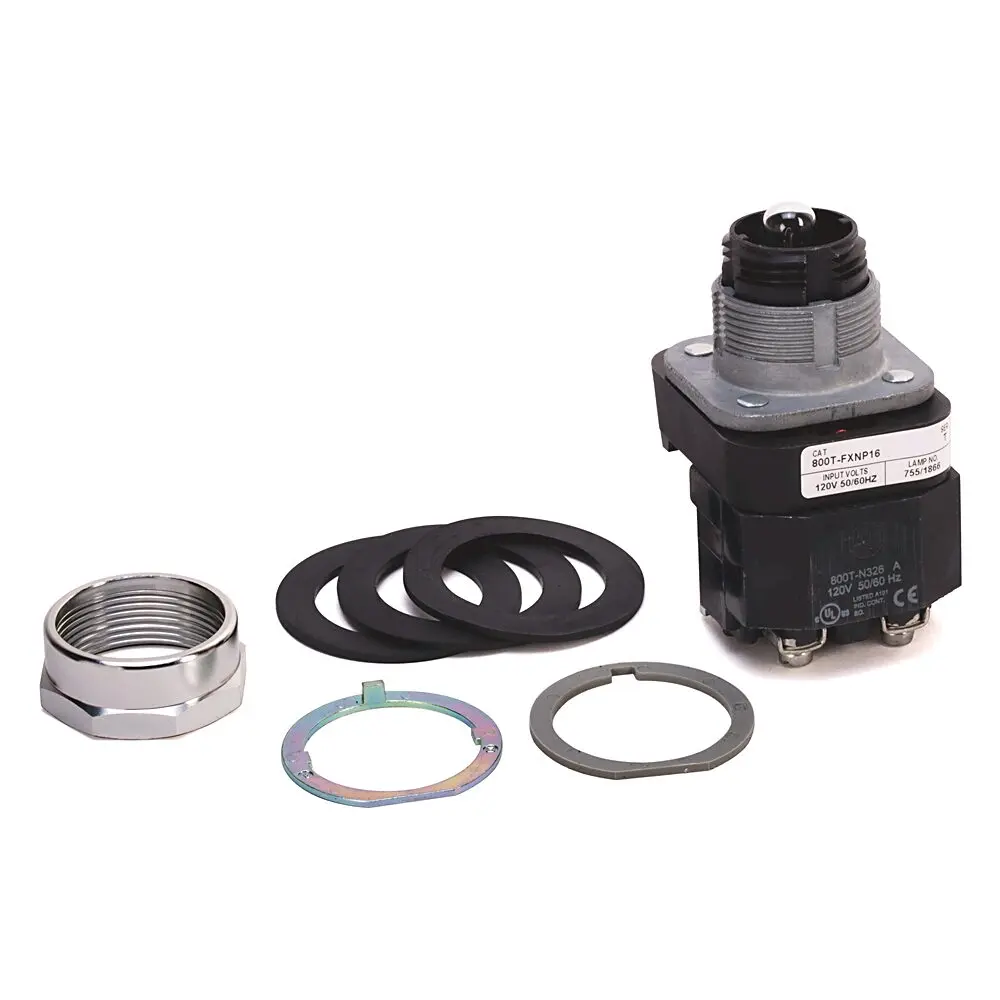

- 800T-FXNPH16AA7 — 800T PB,30mm Push Pull Device,No Twist Release,120V AC 50/60 Hz,3 Position Momentary…
