800T-A1A | Allen-Bradley | US
Allen-Bradley 800T-A1A - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Momentary Push Button.
In our catalog, the 800T-A1A from Allen-Bradley is listed under the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 30mm Momentary Push Button; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Push button; Contact block configuration: 1 NO, 1 NC, standard contact block (800T-XA); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: 14 - 18 AWG (x2); Contact block thermal current rating: 10 A. The complete technical table is shown in the Specifications tab on this page.
| Contact block configuration | 1 NO, 1 NC, standard contact block (800T-XA) |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Estimated Lead Time | 5 days |
| Hazardous location rating | False |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Flush head |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator cap/button size | 30 mm |
| Operator construction/material | Metal |
| Operator function | Momentary contact |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator Type | Push button |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | False |
| Terminations with finger safe covers | False |
| Type | 30mm Momentary Push Button |
| Type of electric connection | Screw connection |
| UPC | 781180601576 |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 800T-A1A cost?
800T-A1A is available for direct purchase at CA$74.48 (CAD), shown on this page with an Add to Cart button. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 800T-A1A?
800T-A1A is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800T-A1A discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800T-A1A — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800T-A1A?
Key specifications include Contact block configuration: 1 NO, 1 NC, standard contact block (800T-XA); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-A1A ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800T-56HB5KL8AA — Allen-Bradley 30mm Selector Switch 800T PB 800T-56HB5KL8AA
- 800T-5PY — Allen-Bradley 800T 30 mm Push-Button Pendant Enclosure 800T-5PY
- 800T-6THZY — Allen-Bradley 800T 30 mm Push-Button Enclosure 800T-6THZY
- 800T-6TZY — Allen-Bradley 800T-6TZY 800T and 800H Accessories, Push Button Enclosure,Surface,6 Holes (one vertical…
- 800T-A00 — Push Button,30mm,Momentary Contact,Flush Head,Non Illuminated Operator Only
- 800T-A1 — 800T PB,30mm Momentary Push Button,Flush Head Push Button,Flush Head,Green,Standard,Standard,Green, No Guards on…
- 800T-A1A1 — Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A1A1
- 800T-A1AR — Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A1AR
- 800T-A1B — 800T PB,30mm Momentary Push Button,Flush Head Push Button,Flush Head,Green,Standard,Standard,Green, No Guards on…
- 800T-A1BV — Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A1BV
- 800T-A1C — Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A1C
- 800T-A1CY — Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A1CY
Related Products
Allen-Bradley 800T-A2A | Allen-Bradley | US

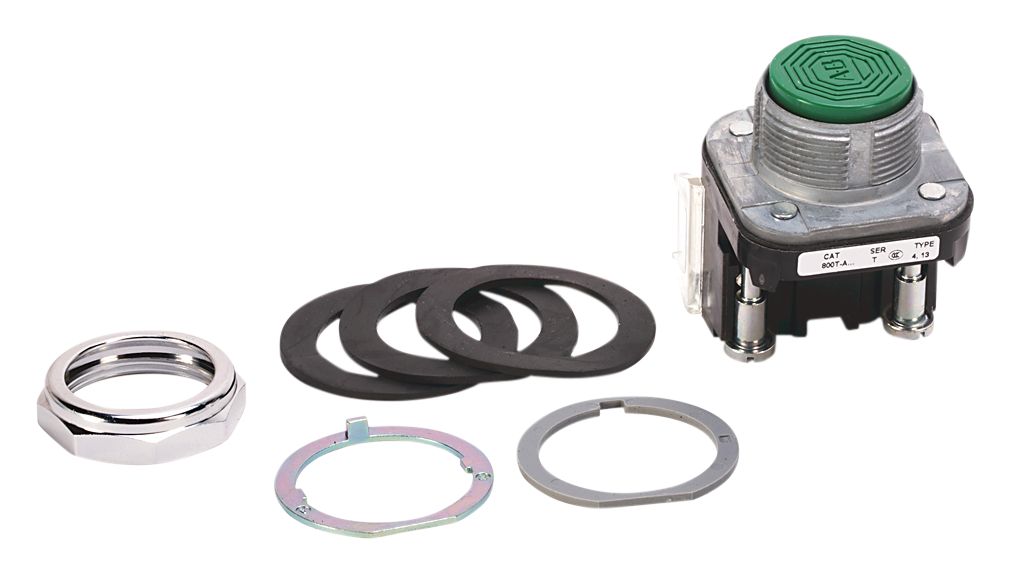

Allen-Bradley Allen-Bradley 800T-Q2A
