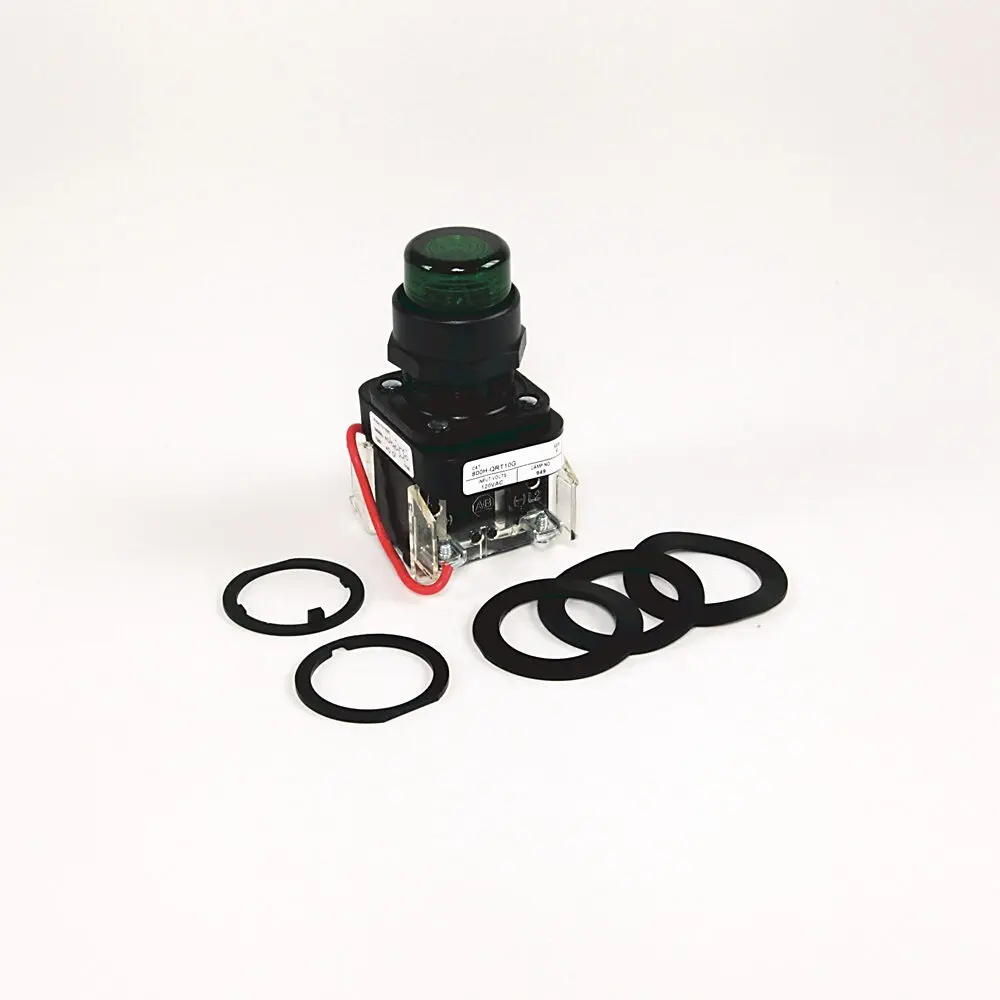

Allen-Bradley 800HC-QRTH2G — Pilot Lights
Allen-Bradley 800HC-QRTH2G - Pilot Lights - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Pilot Light.
The Allen-Bradley 800HC-QRTH2G is part of the Pilot Lights range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Pilot Light; Style: Push-to-Test Type; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Pilot light, with lA test feature; Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: 14 - 18 AWG (x2). The complete technical table is shown in the Specifications tab on this page.
| Contact block configuration | 1-NO 1-NC standard contacts |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Estimated Lead Time | 5 days |
| Hazardous location rating | False |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | LED |
| Illumination module input voltage | 12...130V AC/DC |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Full voltage |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Fresnal |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Plastic |
| Operator function | Push-to-test |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator Type | Pilot light, with lA test feature |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Style | Push-to-Test Type |
| Suitable for illumination | True |
| Terminations with finger safe covers | True |
| Type | 30mm Pilot Light |
| Type of electric connection | Screw connection |
| UPC | 885630118307 |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800HC-QRTH2G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800HC-QRTH2G?
800HC-QRTH2G is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800HC-QRTH2G discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800HC-QRTH2G — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800HC-QRTH2G?
Key specifications include Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The full specification table on this page lists every published attribute for this part.
How quickly can 800HC-QRTH2G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800HC-QR20G — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QR20G
- 800HC-QR24R — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QR24R
- 800HC-QRAH2BD1 — 800H PB,30mm Momentary Push Button,Full Voltage,LED,12 130V AC/DC,Blue,Extended Head with Guard,Finger Guards…
- 800HC-QRAH2WA2 — Allen-Bradley 800HC-QRAH2WA2 800H PB,30mm Momentary Push Button,Full Voltage,LED,12-130V AC/DC,White,Extended Head with Guard,Finger…
- 800HC-QRB24W — Allen-Bradley 30mm Momentary Push Button 800H PB 800HC-QRB24W
- 800HC-QRBH2B — 800H PB,30mm Momentary Push Button,Full Voltage,LED,12 130V AC/DC,Blue,Extended Head without Guard,Finger Guards…
- 800HC-QRBH2BA2 — Allen-Bradley 800HC-QRBH2BA2 800H PB,30mm Momentary Push Button,Full Voltage,LED,12 130V AC/DC,Blue,Extended Head without…
- 800HC-QRBH2G — 800H PB,30mm Momentary Push Button,Full Voltage,LED,12 130V AC/DC,Green,Extended Head without Guard,Finger Guards…
- 800HC-QRT10B — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QRT10B
- 800HC-QRT10R — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QRT10R
- 800HC-QRT10W — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QRT10W
- 800HC-QRT20 — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QRT20
- 800HC-QRT20G — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QRT20G
- 800HC-QRT20R — Allen-Bradley 30mm Pilot Light 800H PB 800HC-QRT20R
- 800HC-QRT24R — 800H PB,30mm Pilot Light,PTT w/ Inc. Lamp, Full Voltage,Full Voltage Type,Push to…
Related Products
Allen-Bradley 800H PB,30mm Pilot Light,PTT w/ Inc. Lamp, Full Voltage,Full…

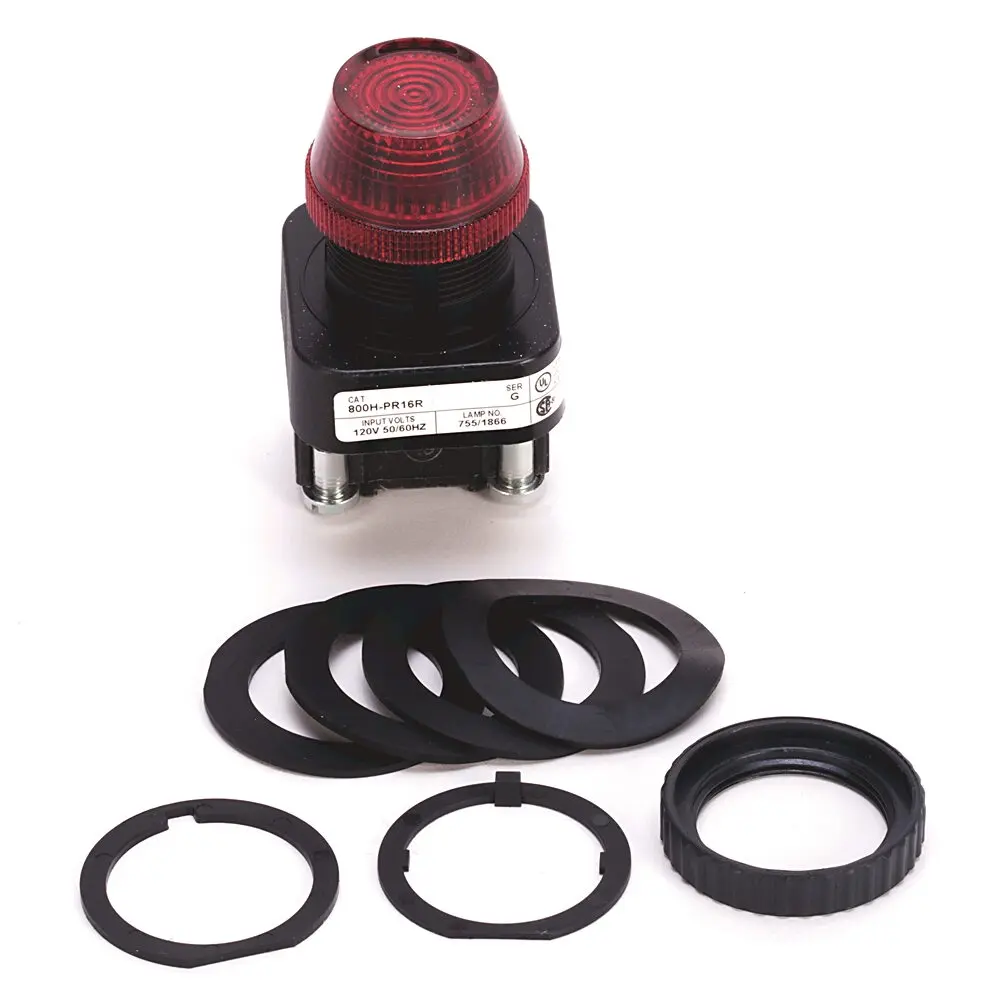

Allen-Bradley 800H PB,30mm Pilot Light,Xfmr Type W/ Incand Lamp,LED Lamp,120V…
