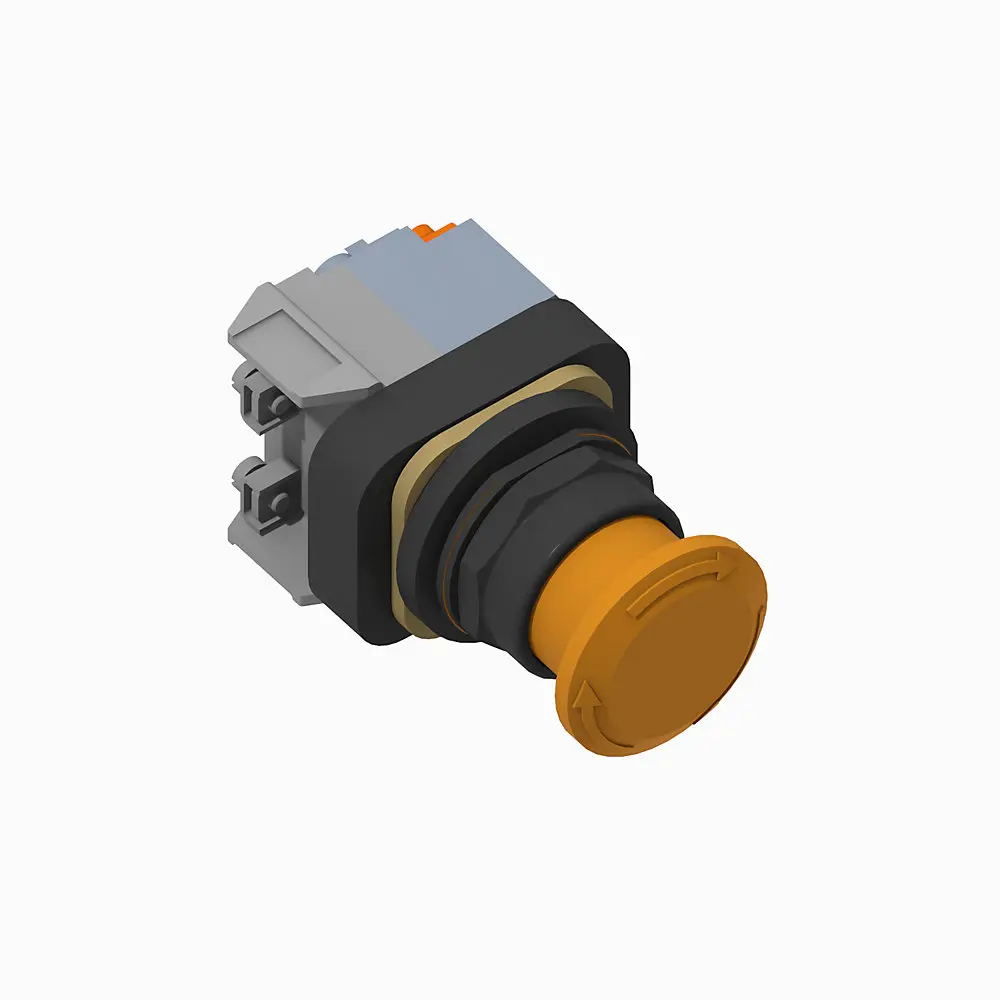

Allen-Bradley 30mm Push-Pull Device 800H PB 800H-FRXTP16AD1
Allen-Bradley 800H-FRXTP16AD1 - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Push-Pull Device.
This listing covers the Allen-Bradley 800H-FRXTP16AD1, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Push-Pull Device; Lifecycle Status: Discontinued; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Push-pull unit; Contact block configuration: 1-NO standard contact; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: 14 - 18 AWG (x2). See the Specifications tab on this page for the full technical table.
| Contact block configuration | 1-NO standard contact |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 15 - 18 AWG (x2) |
| Illumination module type | Transformer |
| Lifecycle Status | Discontinued |
| Operating Temperature | -25 °C |
| Operator cap color | Amber |
| Operator cap type | Mushroom head |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator cap/button size | 40 mm |
| Operator construction/material | Plastic |
| Operator function | 2-position |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator special function | Maintained with twist release |
| Operator Type | Push-pull unit |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type | 30mm Push-Pull Device |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800H-FRXTP16AD1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-FRXTP16AD1?
800H-FRXTP16AD1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800H-FRXTP16AD1 discontinued, and can I still get one?
Yes — our product data lists 800H-FRXTP16AD1 with a manufacturer lifecycle status of "Discontinued". You can still get one: sourcing discontinued, superseded and long-obsolete parts is core to what KKM Solutions does. We locate remaining new-old-stock through our supplier network, and where a part is genuinely unavailable we identify a form-fit-function equivalent and confirm the differences with you before you commit. Send 800H-FRXTP16AD1 through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800H-FRXTP16AD1?
Key specifications include Contact block configuration: 1-NO standard contact; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-FRXTP16AD1 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
