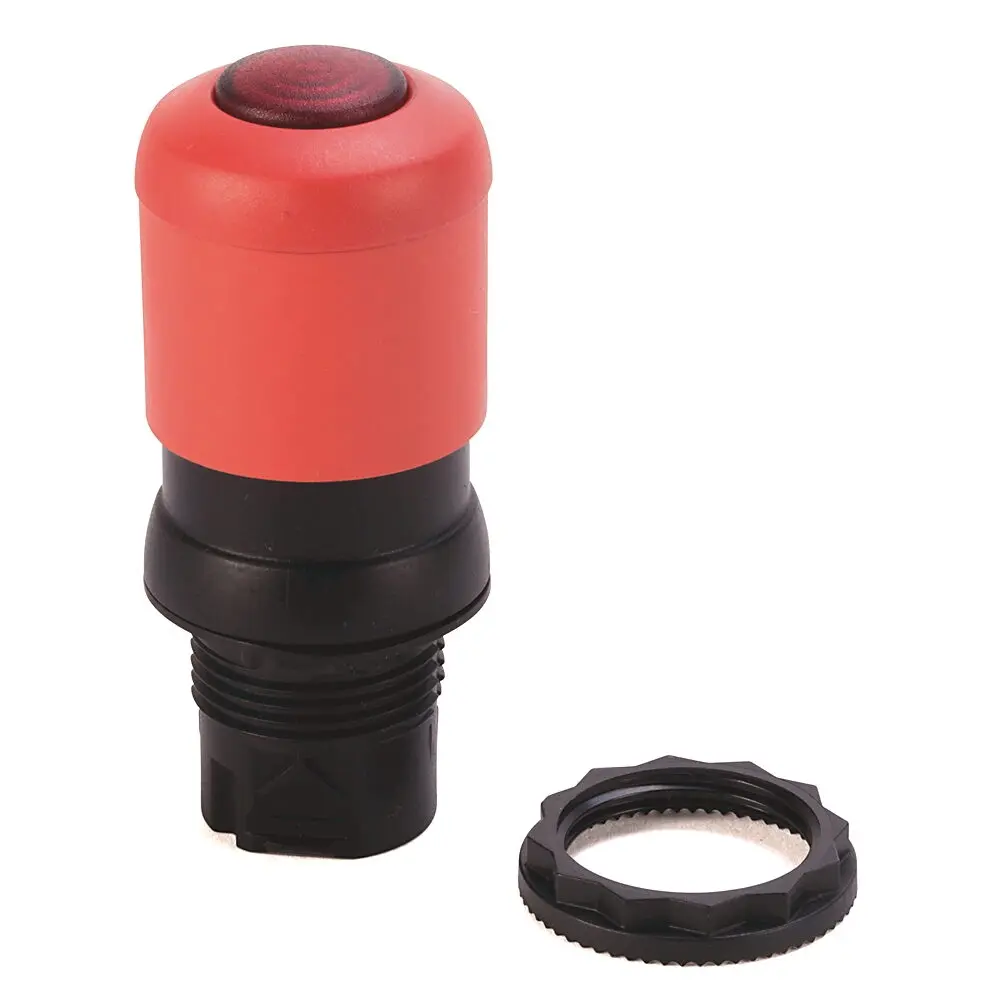

Allen-Bradley 800FP-LMP33 — 800F Push-Pull/Twist to Release, Illuminated
Allen-Bradley 800FP-LMP33 - 800F Push-Pull/Twist to Release, Illuminated - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Push Pull Operator.
In our catalog, the 800FP-LMP33 from Allen-Bradley is listed under the 800F Push-Pull/Twist to Release, Illuminated category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 22mm Push Pull Operator; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Operator Type: 30 mm illuminated push-pull; Contact block thermal current rating: 10 A; Hole diameter: 22.5 mm; Operator cap/button material: Plastic; Operator cap/button size: 30 mm illuminated push-pull; Operator cap color: Green; Operator cap type: Mushroom head; Operator construction/material: Plastic. The complete technical table is shown in the Specifications tab on this page.
| Colour button | Green |
|---|---|
| Contact block durability | 10000000 cycles |
| Contact block thermal current rating | 10 A |
| Diameter cap | 30 mm |
| Enclosure compatibility | IP69K, IP66, Type 4/4X/13 (Round plastic operator) |
| Estimated Lead Time | 44 days |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Mushroom head |
| Operator cap/button material | Plastic |
| Operator cap/button size | 30 mm illuminated push-pull |
| Operator construction/material | Plastic |
| Operator function | 22 mm push pull operator |
| Operator mechanical design life (cycles, min.) | 300000 |
| Operator Type | 30 mm illuminated push-pull |
| Shock | 100 g |
| Spring-return | False |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Suitable for illumination | True |
| Switching function latching | True |
| Type | 22mm Push Pull Operator |
| Type of button | High |
| Unlocking method | Pull-release |
| UPC | 662468097505 |
| Vibration | 10 g |
| With front ring | True |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800FP-LMP33?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FP-LMP33?
800FP-LMP33 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800FP-LMP33 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800FP-LMP33 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800FP-LMP33?
Key specifications include Colour button: Green; Contact block durability: 10000000 cycles; Contact block thermal current rating: 10 A; Diameter cap: 30 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 800FP-LMP33 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
