Allen-Bradley 800F PB,22mm Momentary Push Button,Flush Push Button,1 N.O./1 N.C.,1 N.O./1 N.C.,Blank,Standard,No Power Module (Lamp Type),Black,No Power Module,Plastic,No Power Module (Voltage),Screw Contact Block,Plastic Latch Mount,No Screw,None (Monolithic Circuit),

Allen-Bradley 800FP-F2PX11 — 800F Momentary Push Button, Non-Illuminated

Brand: Allen-Bradley SKU: 800FP-F2PX11 Mfr Part #: 800FP-F2PX11
Ships Same Day* Worldwide Shipping

Allen-Bradley 800FP-F2PX11 - 800F Momentary Push Button, Non-Illuminated - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Momentary Push Button.

Sourced to exact specCross-checked against manufacturer part data
Fast quote turnaroundOur order desk replies within 1 business day
Worldwide shippingWe ship to your site, warehouse, or freight forwarder

The Allen-Bradley 800FP-F2PX11 is part of the 800F Momentary Push Button, Non-Illuminated range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.

Published specifications for this part include Type: 22mm Momentary Push Button; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Operator Type: Push button; Contact block configuration: 1 NO/1 NC; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²); Contact block thermal current rating: 10 A; Contact block utilization category (AC): A600, AC 15 - screw termination; Contact block utilization category (DC): Q600, DC-13 - screw termination. See the Specifications tab on this page for the full technical table.

Contact block configuration 1 NO/1 NC
Contact block durability 1.0E7
Contact block mounting style Latch
Contact block operational voltage, max 600V (A600, Q600) - screw termination
Contact block termination tightening torque 6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range #18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating 10 A
Contact block type Standard
Contact block utilization category (AC) A600, AC 15 - screw termination
Contact block utilization category (DC) Q600, DC-13 - screw termination
Enclosure compatibility IP69K, IP66, Type 4/4X/13 (Round plastic operator)
Estimated Lead Time 44 days
Hole diameter 22.5 mm
Humidity ≤95% RH from 25...60 °C (77...140 °F)
Latch material Plastic
Operating Temperature -25 °C
Operator cap color (lens) Black
Operator cap text/symbol Blank
Operator cap type Flush push-button
Operator cap/button material Plastic
Operator cap/button shape Round
Operator construction/material Plastic
Operator function 22 mm momentary push button
Operator mechanical design life (cycles, min.) 1.0E7
Operator Type Push button
Packaging Standard pack (1 per package)
Shock 100 G
Standard Warranty Duration 1 year
Storage Temperature -40 °C
Suitable for illumination False
Termination style Screw
Type 22mm Momentary Push Button
UPC 662468121354
Vibration 10 G

Request a quote for this part

Email [email protected] or call (825) 454-5367 for pricing and availability.

Quotes back within 1 business day — usually the same day. Need it faster? Call (825) 454-5367, answered 24/7.

Frequently Asked Questions

How do I get pricing for 800FP-F2PX11?

KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.

Who manufactures the 800FP-F2PX11?

800FP-F2PX11 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.

Is 800FP-F2PX11 discontinued, and can I still get one?

KKM Solutions does not publish a manufacturer lifecycle status for 800FP-F2PX11 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.

What are the key specifications of 800FP-F2PX11?

Key specifications include Contact block configuration: 1 NO/1 NC; Contact block durability: 1.0E7; Contact block mounting style: Latch; Contact block operational voltage, max: 600V (A600, Q600) - screw termination. The full specification table on this page lists every published attribute for this part.

How quickly can 800FP-F2PX11 ship?

In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.

Variants & Related Part Numbers

Other Allen-Bradley part numbers in this family:

  • 800FP-F2 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2
  • 800FP-F211MX10 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F211MX10
  • 800FP-F2MX10E — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2MX10E
  • 800FP-F2MX10V — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2MX10V
  • 800FP-F2MX11 — 800F PB,22mm Momentary Push Button,Flush Push Button,1 N.O./1 N.C.,1 N.O./1 N.C.,Blank,Standard,No Power…
  • 800FP-F2PX02 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX02
  • 800FP-F2PX03 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX03
  • 800FP-F2PX10 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX10
  • 800FP-F2PX10E — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX10E
  • 800FP-F2PX10V — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX10V
  • 800FP-F2PX20 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX20
  • 800FP-F2PX21 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX21
  • 800FP-F2PX22 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX22
  • 800FP-F2PX60 — Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-F2PX60

Related Products

Allen-Bradley 800F PB,22mm Momentary Push Button,Flush Push Button,1 N.O./1 N.C.,1 N.O./1 N.C.,Blank,Standard,No Power Module (Lamp Type),Black,No Power Module,Plastic,No Power Module (Voltage),Screw Contact Block,Metal Latch Mount,No Screw,None (Monolithic Circuit),St Allen-Bradley

800F PB,22mm Momentary Push Button,Flush Push Button,1 N.O./1 N.C.,1…

SKU: 800FP-F2MX11
Same-day dispatch*
 Allen-Bradley 800F PB,22mm Momentary Push Button,Flush Push Button,START,No Power Module (Lamp Type),Green,No Power Module,Plastic,No Power Module (Voltage),No Screw,None (Monolithic Circuit),Standard Pack Allen-Bradley

800F PB,22mm Momentary Push Button,Flush Push Button,START,No Power Module…

SKU: 800FP-F301
Same-day dispatch*
 Allen-Bradley 800F PB,22mm Momentary Push Button,Flush Push Button,REVERSE,No Power Module (Lamp Type),Green,No Power Module,Plastic,No Power Module (Voltage),No Screw,None (Monolithic Circuit),Standard Pack Allen-Bradley

800F PB,22mm Momentary Push Button,Flush Push Button,REVERSE,No Power Module…

SKU: 800FP-F310
Same-day dispatch*

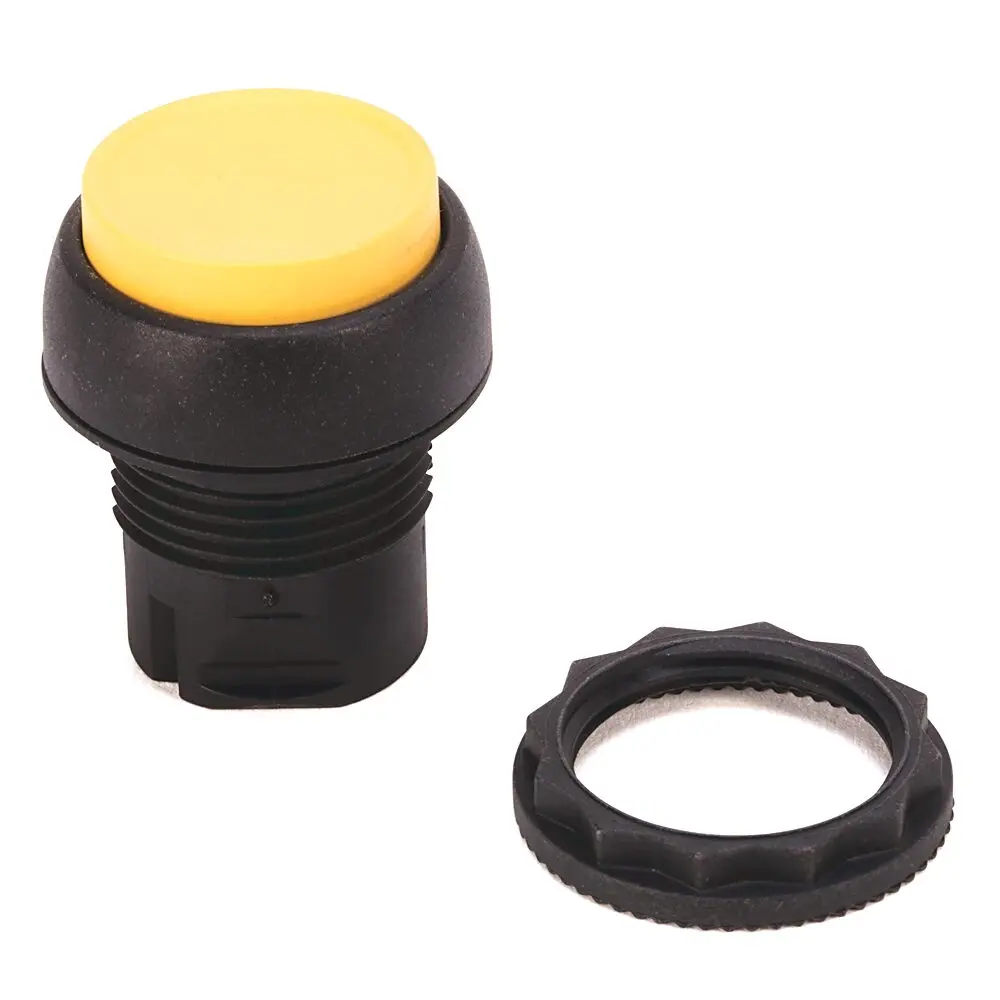

 Allen-Bradley 800F PB,22mm Momentary Push Button,Extended Push Button,Blank,No Power Module (Lamp Type),Yellow,No Power Module,Plastic,No Power Module (Voltage),No Screw,None (Monolithic Circuit),Standard Pack Allen-Bradley
