800FM-LSM23MQ3GX10 Allen-Bradley 22mm Selector Switch 800F PB
Allen-Bradley 800FM-LSM23MQ3GX10 - Selector Switches - Product Series: A; Operating Temperature: -25 °C; Storage Temperature: -40 °C.
Overview
This listing covers the Allen-Bradley 800FM-LSM23MQ3GX10, a part number in the Selector Switches category. The manufacturer's published data for this part number specifies Product Series: A and Operating Temperature: -25 °C.
Key manufacturer data on file for this item includes Storage Temperature: -40 °C; Lifecycle Status: Active; Type of control element: Short thumb-grip; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Operator Type: Illuminated selector switch; Contact block configuration: 1 NO; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²). The complete technical table is shown in the Specifications tab on this page.
Specifications
| Contact block configuration | 1 NO |
|---|---|
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Enclosure compatibility | IP66, Type 4/13 (Round metal operator) |
| Hazardous location rating | false |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | LED |
| Illumination module input voltage | 24V AC/DC |
| Illumination module mounting style | Latch |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module type | LED |
| Lamp type | Green LED |
| Latch material | Metal |
| Lifecycle Status | Active |
| Material front ring | Metal |
| Number of contacts as normally open contact | 1 |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap/button material | Metal |
| Operator construction/material | Metal |
| Operator function | Maintained, 2 position |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Illuminated selector switch |
| Packaging | Standard pack (1 per package) |
| Power module type | Integrated LED (screwless) |
| Product Series | A |
| Shock | 100 G |
| Spring-return | false |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Supply voltage | 24 V |
| Switch orientation | Standard |
| Switching function latching | true |
| Termination style | Screw |
| Type of control element | Short thumb-grip |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
| With light source | true |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 800FM-LSM23MQ3GX10 |
| Product category | Vision, Measurement & Identification |
| Manufacturer lifecycle status | Active |
| Published specifications | 48 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800FM-LSM23MQ3GX10?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-LSM23MQ3GX10?
800FM-LSM23MQ3GX10 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 800FM-LSM23MQ3GX10?
Manufacturer lifecycle status on file for 800FM-LSM23MQ3GX10: "Active" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 800FM-LSM23MQ3GX10 through the quote form on this page for pricing and availability.
What are the key specifications of 800FM-LSM23MQ3GX10?
Key specifications include Contact block configuration: 1 NO; Contact block durability: 1.0E7; Contact block mounting style: Latch; Contact block operational voltage, max: 600V (A600, Q600) - screw termination. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-LSM23MQ3GX10 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products
Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-LSM23MQ5GX10
Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-LSM23N

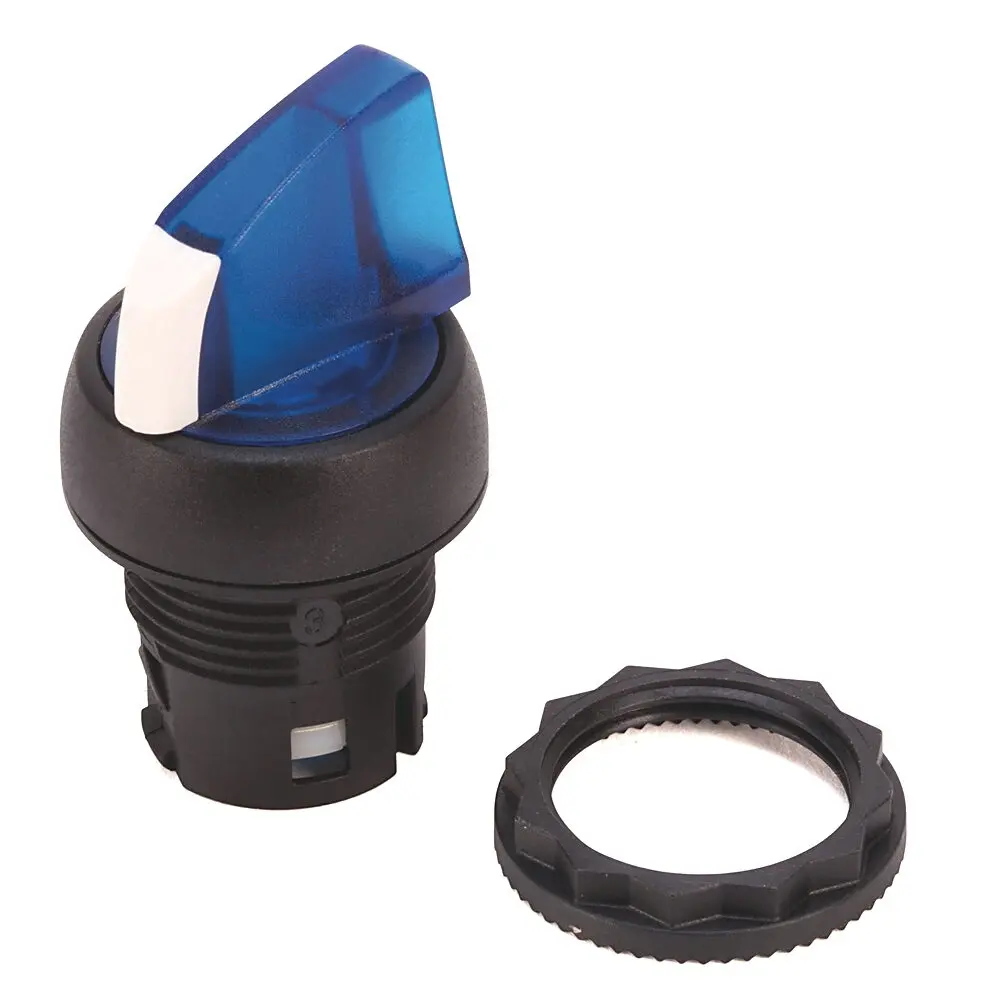

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-LSM23NMN5GX10

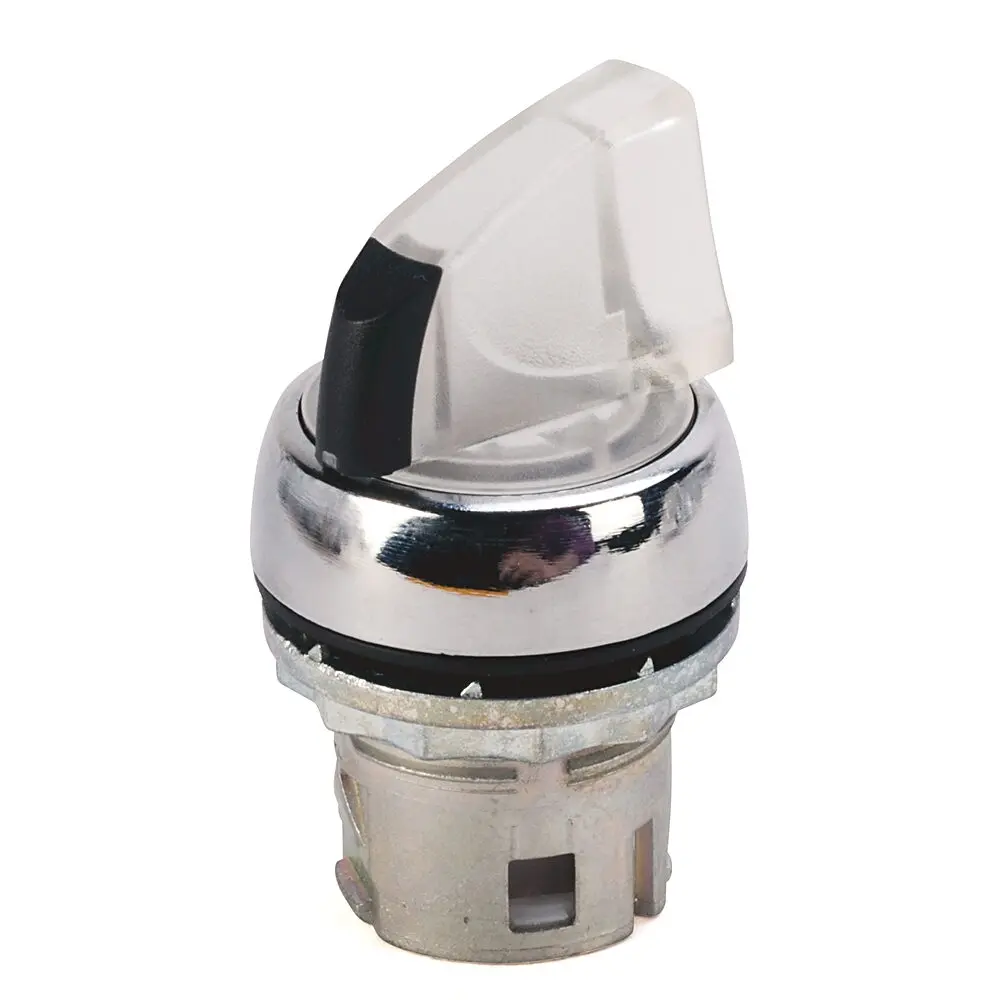

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-LSM23NMQ3GX11
