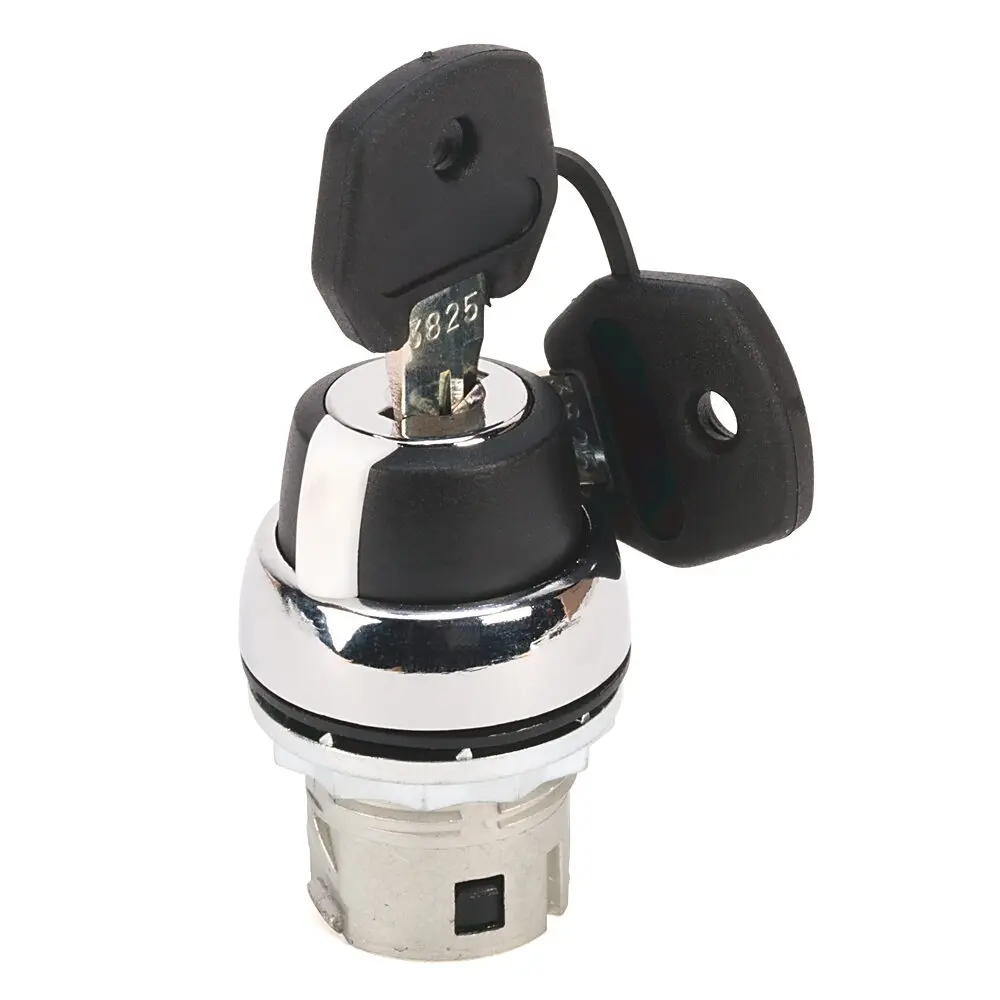

Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM21MX11
Allen-Bradley 800FM-KM21MX11 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Selector Switch.
Allen-Bradley 800FM-KM21MX11 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 22mm Selector Switch; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Type of control element: Key; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Operator Type: Keyed selector switch; Contact block configuration: 1 NO/1 NC; Contact block operational voltage, max: 600V (A600, Q600) - Screw termination. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 1 NO/1 NC |
| Contact block durability | 300000 cycles |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - Screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Key lock, standard | 3825 |
| Key removal position | Left |
| Latch material | Metal |
| Lifecycle Status | Active |
| Material front ring | Metal |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator function | Maintained, 2 position |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Keyed selector switch |
| Repair Options Available | No |
| Shock | 100 G |
| Spring-return | false |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Switching function latching | true |
| Termination style | Screw |
| Type | 22mm Selector Switch |
| Type of control element | Key |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
| With front ring | true |
| With light source | false |
Frequently Asked Questions
How do I get pricing for 800FM-KM21MX11?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-KM21MX11?
800FM-KM21MX11 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800FM-KM21MX11?
Key specifications include Build America, Buy America: No; Contact block configuration: 1 NO/1 NC; Contact block durability: 300000 cycles; Contact block mounting style: Latch. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-KM21MX11 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 22mm Pilot Light 800F PB 800FD-P6N5
Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM21MX23

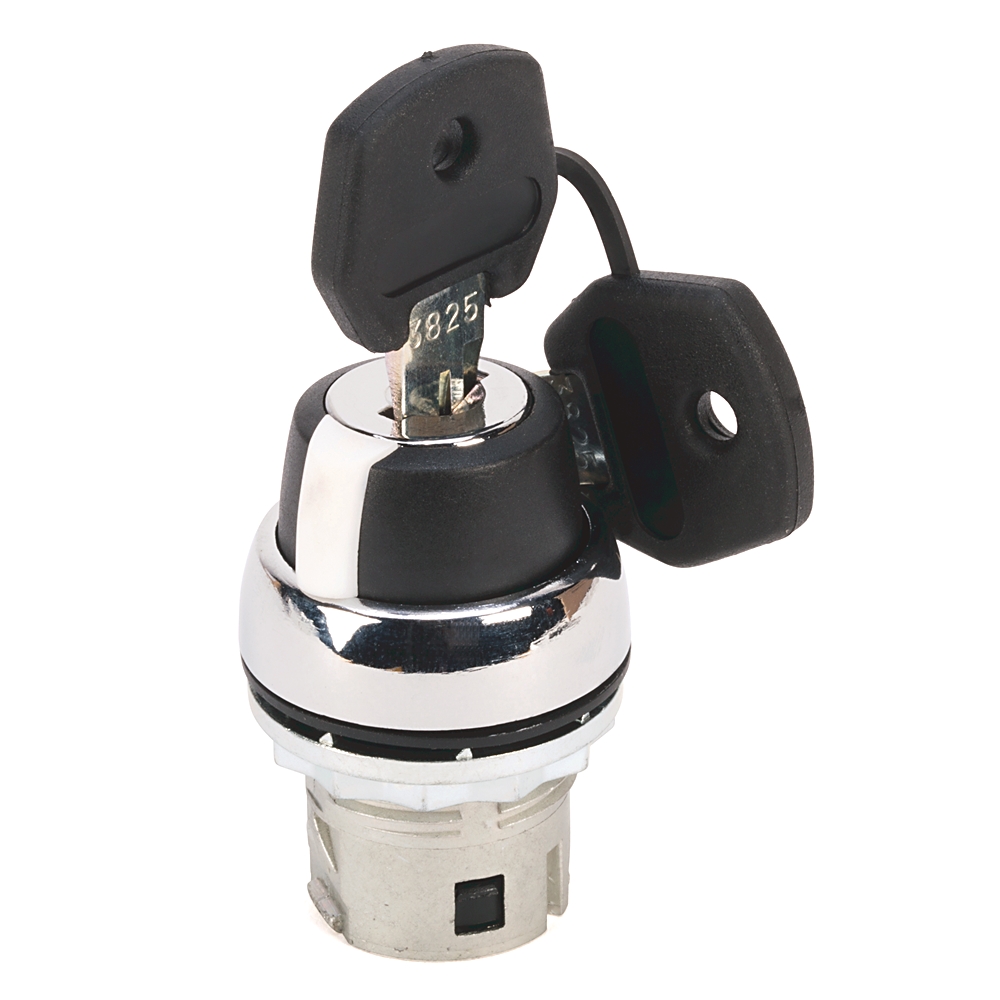

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM21MX30
