Allen-Bradley 800F-MX11B — Selector Switches
Allen-Bradley 800F-MX11B - Selector Switches - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Back of Panel Composite.
In our catalog, the 800F-MX11B from Allen-Bradley is listed under the Selector Switches category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 22mm Back of Panel Composite; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Contact block configuration: 1 NO/1 NC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²); Illumination lamp type: No power module; Illumination module input voltage: No power module; Illumination module type: No power module; Number of contacts as normally closed contact: 1. See the Specifications tab on this page for the full technical table.
| Contact block configuration | 1 NO/1 NC |
|---|---|
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block type | NC early break |
| Estimated Lead Time | 30 days |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | No power module |
| Illumination module input voltage | No power module |
| Illumination module type | No power module |
| Latch material | Metal |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Operating Temperature | -25 °C |
| Operator mounting hole dimension | 22.5 mm |
| Shock | 100 g |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Termination style | Screw |
| Type | 22mm Back of Panel Composite |
| Type of electric connection | Screw connection |
| UPC | 885630263366 |
| Vibration | 10 g |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800F-MX11B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800F-MX11B?
800F-MX11B is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800F-MX11B discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800F-MX11B — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800F-MX11B?
Key specifications include Contact block configuration: 1 NO/1 NC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²); Contact block type: NC early break. The full specification table on this page lists every published attribute for this part.
How quickly can 800F-MX11B ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800F-MA — Allen-Bradley 800F-MA Amber
- 800F-MN3PX01 — Allen-Bradley operator device 800F-MN3PX01
- 800F-MN5RX01L — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MN5RX01L
- 800F-MQ5RQ11 — Allen-Bradley 800F-MQ5RQ11 800F PB,22mm Back of Panel Composite,Spring Clamp Contact Block,Standard,Spring Clamp…
- 800F-MX01B — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX01B
- 800F-MX01L — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX01L
- 800F-MX01S — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX01S
- 800F-MX10 — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX10
- 800F-MX10E — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX10E
- 800F-MX10V — 800F PB,22mm Back of Panel Composite,Screw Contact Block,Low Voltage,No Operator,No Power Module,1…
- 800F-MX11L — 800F PB,22mm Back of Panel Composite,Screw Contact Block,NCC Late Break,No Operator,No Power…
- 800F-MX11V — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX11V
- 800F-MX12 — 800F PB,22mm Back of Panel Composite,Standard,Screw Contact Block,No Operator,No Power Module,1 N.O./2…
- 800F-MX12L — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX12L
- 800F-MX12V — Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MX12V
- 800F-MX13 — 800F PB,22mm Back of Panel Composite,Standard,Screw Contact Block,No Operator,No Power Module,1 N.O./3…
- 800F-MY — Allen-Bradley 800F-MY Yellow
Related Products
Allen-Bradley 800F PB,22mm Back of Panel Composite,Standard,Screw Contact Block,No Operator,No…
Allen-Bradley 800F PB,22mm Selector Switch,Selector Switch,No Power Module (Lamp Type),Maintained,…
Allen-Bradley 800F PB,22mm Selector Switch,Selector Switch,3 N.O./1 N.C.,3 N.O./1 N.C.,Standard,No…

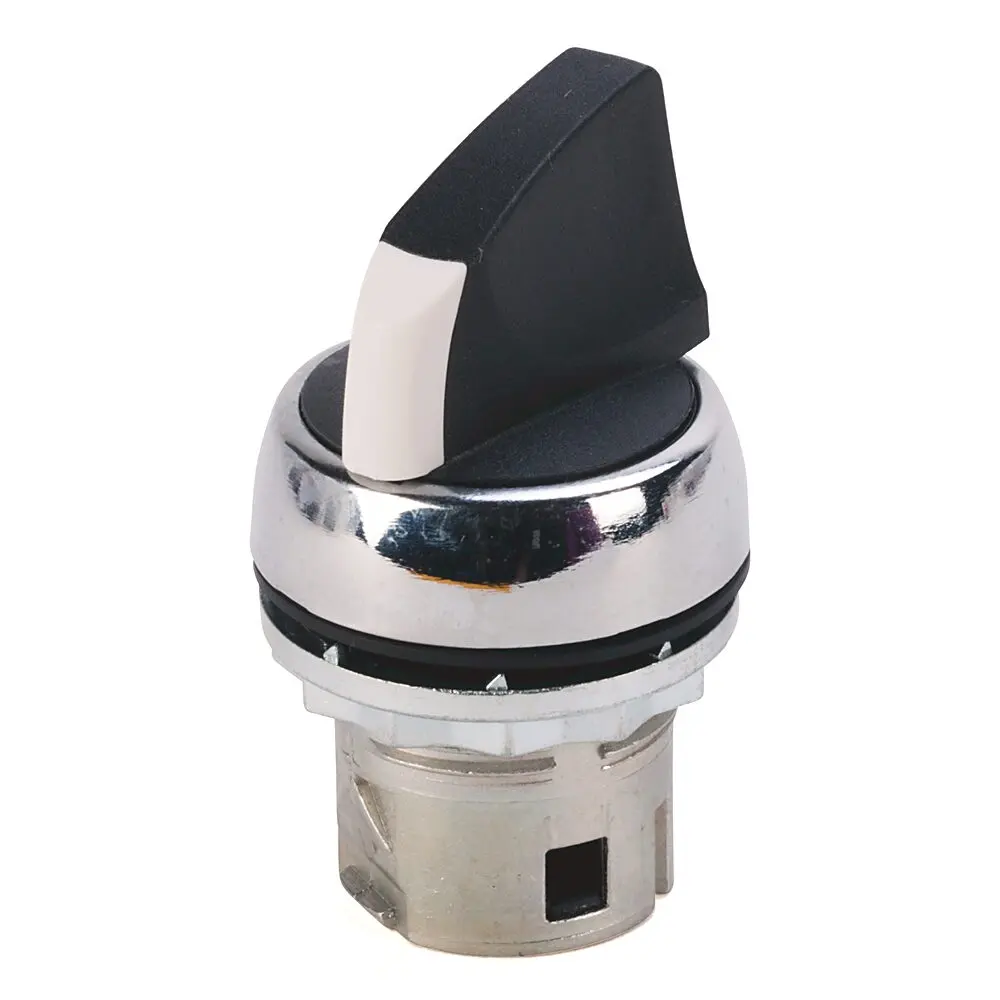

Allen-Bradley Operator, 3 Position Selector Switch, Black Standard Knob, Non…
