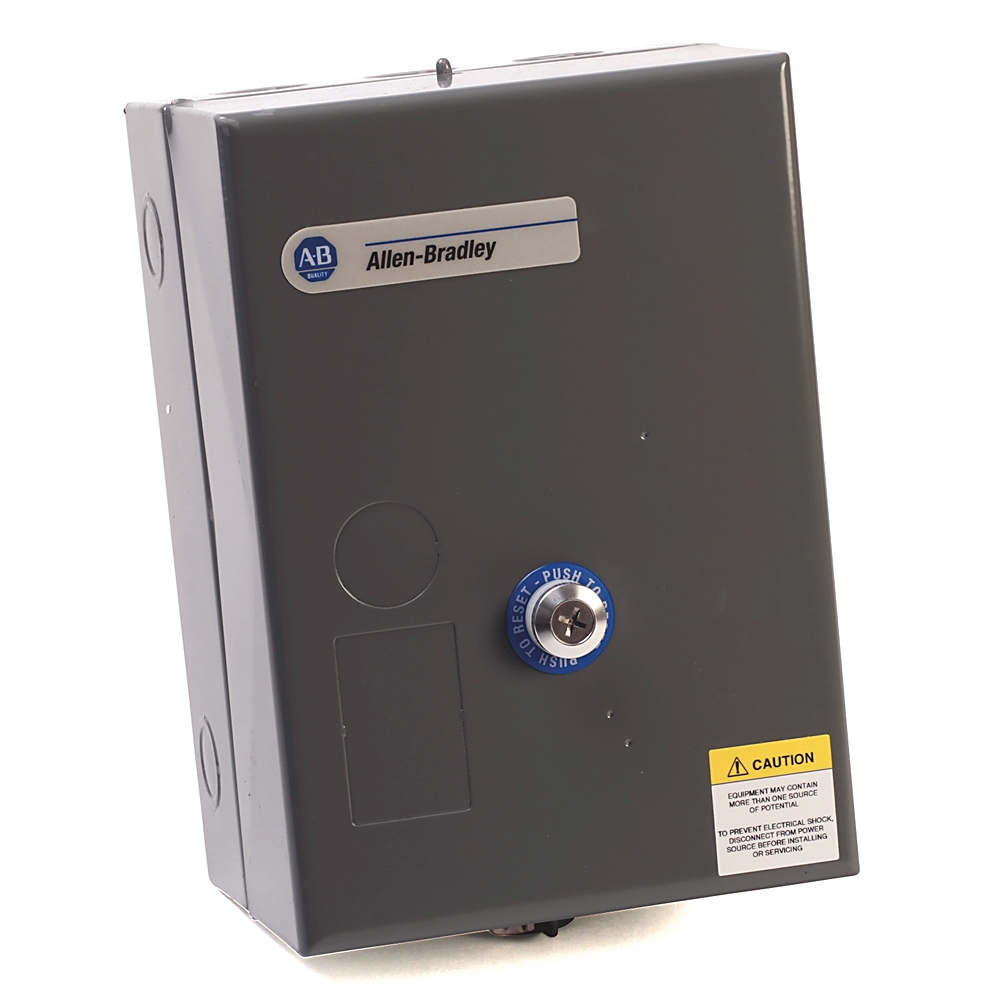

509-AAA-1-4G-90011 Allen-Bradley NEMA Size 0 Non-Reversing Starter
Allen-Bradley 509-AAA-1-4G-90011 - NEMA Motor Starters - Width: 6.75 mm; Height: 9.67 mm; Operating Temperature: -25 °C.
Overview
The Allen-Bradley 509-AAA-1-4G-90011 is part of the NEMA Motor Starters range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 6.75 in and Height: 9.67 in.
Published specifications for this part include Operating Temperature: -25 °C; Lifecycle Status: Active; Enclosure Type: NEMA 1 General Purpose,NEMA 1 General Purpose; Degree of protection (NEMA): 1; Depth: 2.81 in; External reset possible: true; Factory installed models: START-STOP push button; Hp rating: 3 Hp; Number of indicator lights: 1; Overload relay: Eutectic overload; Rated control supply voltage at AC 50 Hz: 220 V; Rated control supply voltage at AC 60 Hz: 240 V. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Circuit closing inrush current peak including offset, max | 140 A |
| Coil operating limits | 85...110% |
| Continuous current | 18 A |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 1 |
| Depth | 2.81 in |
| Enclosure Type | NEMA 1 General Purpose,NEMA 1 General Purpose |
| Enclosure type rating | NEMA 1 general purpose |
| External reset possible | true |
| Factory installed models | START-STOP push button |
| Heat dissipation | 5.9 W |
| Height | 9.67 in |
| Hp rating | 3 Hp |
| Lifecycle Status | Active |
| Load voltage | 230V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| NEMA size | NEMA 0 |
| Number of auxiliary contacts, max | 8 |
| Number of indicator lights | 1 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 16 ms |
| Operating time, pick-up | 21 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | Eutectic overload |
| Power contact material | Silver Alloy |
| Rated control supply voltage at AC 50 Hz | 220 V |
| Rated control supply voltage at AC 60 Hz | 240 V |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Service limit current rating | 21 A |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Width | 6.75 in |
| Wire size | For power terminals: 14...10 AWG |
| With fuse | false |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 509-AAA-1-4G-90011 |
| Product category | NEMA Contactors & Starters |
| Manufacturer lifecycle status | Active |
| Published specifications | 44 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 509-AAA-1-4G-90011?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 509-AAA-1-4G-90011?
509-AAA-1-4G-90011 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 509-AAA-1-4G-90011?
Manufacturer lifecycle status on file for 509-AAA-1-4G-90011: "Active" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 509-AAA-1-4G-90011 through the quote form on this page for pricing and availability.
What are the key specifications of 509-AAA-1-4G-90011?
Key specifications include Altitude: 10000 ft before derating; Auxiliary contact material: Silver; Circuit closing inrush current peak including offset, max: 140 A; Coil operating limits: 85...110%. The full specification table on this page lists every published attribute for this part.
How quickly can 509-AAA-1-4G-90011 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
