Allen-Bradley 42EF-G1RCA-G4
Allen-Bradley 42EF-G1RCA-G4 - industrial components - Sensing Distance: Depends on fiber optic mm; Operating Temperature: -25...70 °C (-13...158 °F) 132V @ AC/DC; Relative Humidity: 5...95% (noncondensing).
The Allen-Bradley 42EF-G1RCA-G4 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Sensing Distance: Depends on fiber optic mm and Operating Temperature: -25...70 °C (-13...158 °F) 132V @ AC/DC.
Yellow (for DC models, output and margin LEDs alternate flashing when SCP is active), OFF: output de-energized, label: output de-energized, ON: output energized, label: output energized, Flashing: short circuit protection (SCP) active
Key manufacturer data on file for this item includes Relative Humidity: 5...95% (noncondensing); Housing material: Mindel™; Degree of protection (IP): IP67; Material housing: Other; Shock: 30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2; Vibration: 10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2; Connection type: 4 pin AC micro QD on pigtail; Protection type: Short circuit, reverse polarity, false pulse, overload; Indication: LED; Type of electric connection: Connector M12; Response time: Depends on fiber optic cable; Light source: Infrared. The complete technical table is shown in the Specifications tab on this page.
| Ambient light immunity | Incandescent light 5000 lux |
|---|---|
| AWG-number | 22 AWG |
| Connection type | 4 pin AC micro QD on pigtail |
| Cover material | Udel™ |
| Current consumption | 35 mA DC max, 15 mA AC max |
| Degree of protection (IP) | IP67 |
| Estimated Lead Time | 99 days |
| Housing material | Mindel™ |
| Indication | LED |
| Leakage Current | DC: 0.1 mA, max, AC: 0.4 mA, max |
| LED status | Yellow (for DC models, output and margin LEDs alternate flashing when SCP is active), OFF: output de-energized, label: output de-energized, ON: output energized, label: output energized, Flashing: short circuit protection (SCP) active |
| Lens Material | Acrylic |
| Light source | Infrared |
| List of degrees of protection (IP) | IP67 (IEC 529), 1200 psi (8270 kPa) washdown |
| List of degrees of protection (NEMA) | 6P, 4X |
| Load current | 100 mA |
| Material housing | Other |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Max. output current | 100 mA |
| Operating Temperature | -25...70 °C (-13...158 °F) 132V @ AC/DC |
| Operating voltage | 21.6...264V @ AC/DC |
| Protection type | Short circuit, reverse polarity, false pulse, overload |
| Relative Humidity | 5...95% (noncondensing) |
| Response time | Depends on fiber optic cable |
| Sensing Distance | Depends on fiber optic mm |
| Sensing mode type | Fiber optic large aperture |
| Sensitivity adjustment | Single-turn knob |
| Setting procedure | Manual adjustment |
| Shock | 30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2 |
| Standard Warranty Duration | 1 year |
| Type of electric connection | Connector M12 |
| Type of light | Infrared light |
| Type of switching output | Other |
| UPC | 662468595865 |
| Vibration | 10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2 |
| Voltage type | AC/DC |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 42EF-G1RCA-G4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 42EF-G1RCA-G4?
42EF-G1RCA-G4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 42EF-G1RCA-G4 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 42EF-G1RCA-G4 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 42EF-G1RCA-G4?
Key specifications include Ambient light immunity: Incandescent light 5000 lux; AWG-number: 22 AWG; Connection type: 4 pin AC micro QD on pigtail; Cover material: Udel™. The full specification table on this page lists every published attribute for this part.
How quickly can 42EF-G1RCA-G4 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 42EF-G1RCA-A2 — RightSight Photosensor,18 mm Cylindrical,Front Through Hole,Fiber Optic Large Aperture,Infrared,Depends on the fiber…
Related Products
Allen-Bradley RightSight Photosensor,18 mm Cylindrical,Front Through Hole,Fiber Optic Large Aperture,Infrared,Depends…
Allen-Bradley Photoelectric Sensor,Polarized Retroreflective,3 3 m Sensing Range,Visible Red LED,Light…
Allen-Bradley RightSight Photosensor,18 mm Cylindrical,Front Through Hole,Fixed Focus Diffuse,Visible Red,43.00…
Allen-Bradley RightSight Photosensor,18 mm Cylindrical,Front Through Hole,Polarized Retroreflective,Visible Red,3,000 mm,Not…

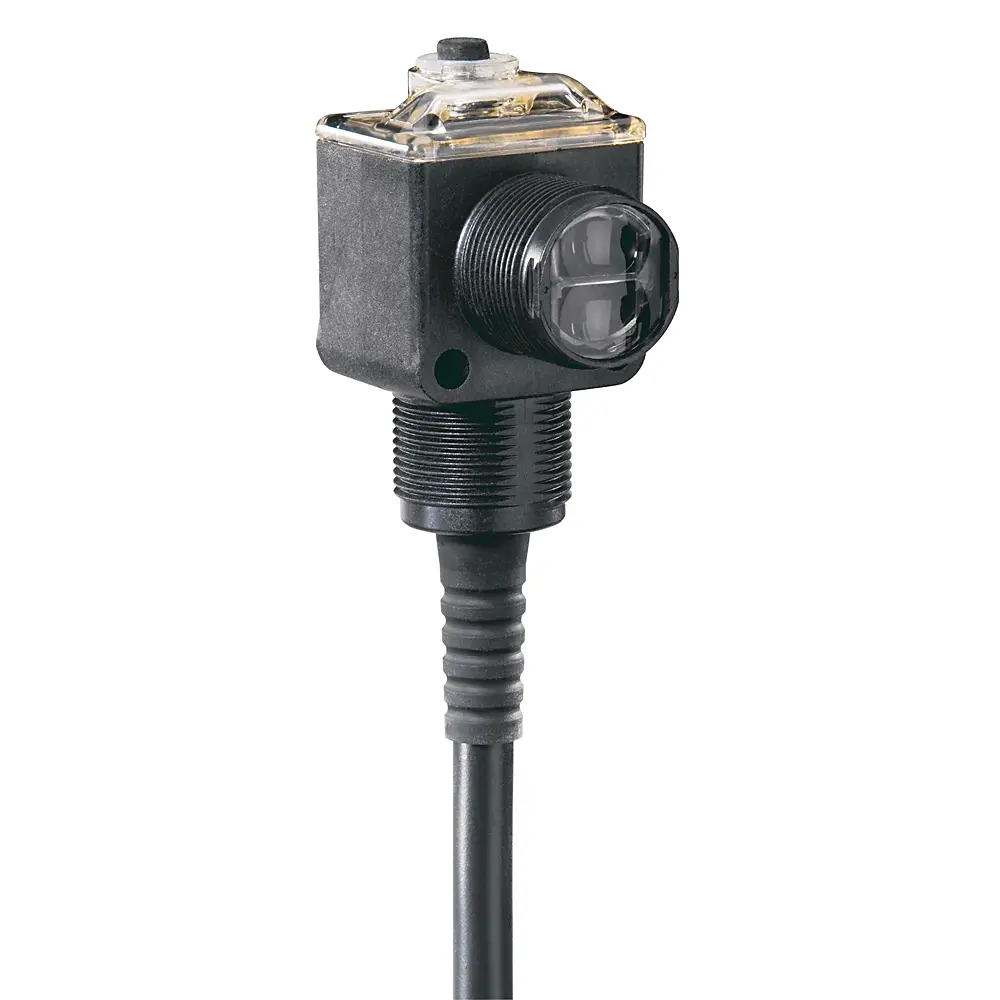

Allen-Bradley RightSight Photosensor,18 mm Cylindrical,Front Through Hole,Standard Diffuse,Infrared,300 mm,Manually Adjustable,F,AC/DC…
