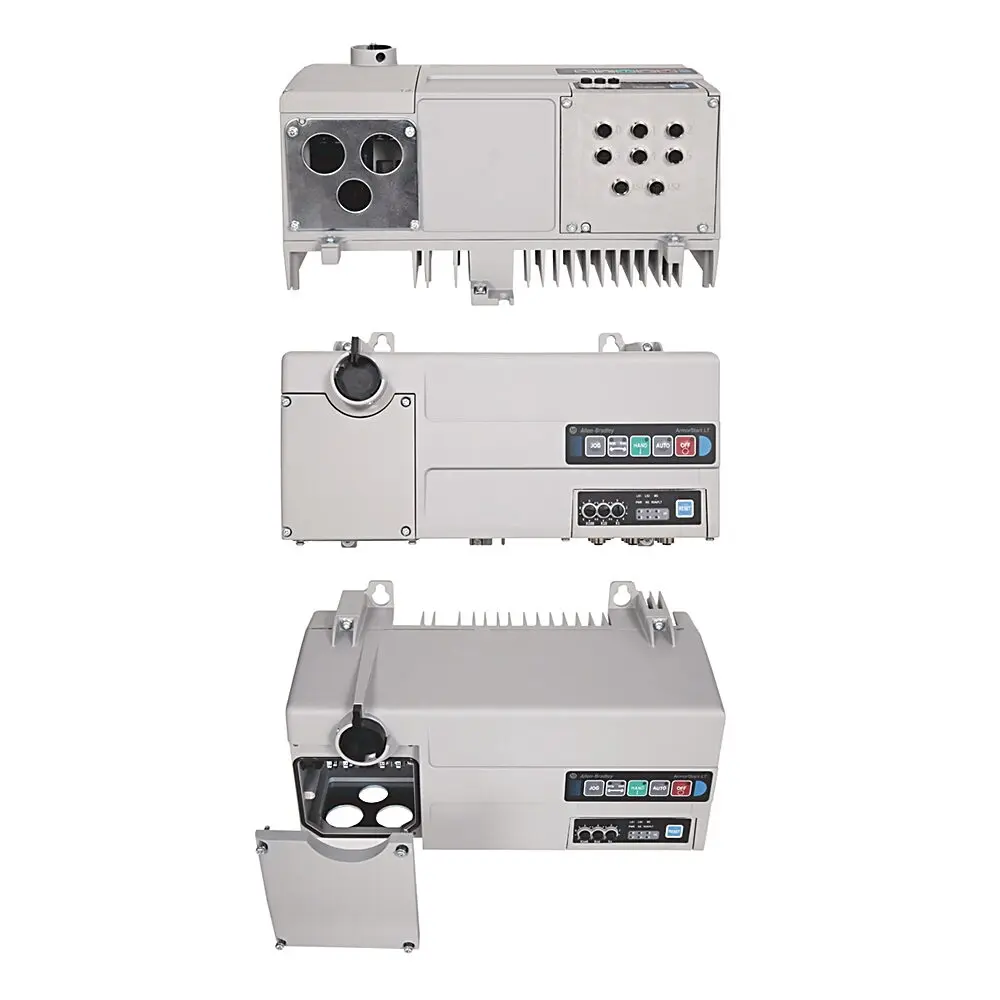

Allen-Bradley 294E-FD4P2Z-G2-3-SB — Variable Frequency Drives (VFD)
KKM Solutions is an independent parts distributor, not an authorized Allen-Bradley dealer — how we source.
Allen-Bradley 294E-FD4P2Z-G2-3-SB - Variable Frequency Drives (VFD) - Width: 381 mm; Height: 219.32 mm; Degree of protection (IP): IP66.
Overview
Part number 294E-FD4P2Z-G2-3-SB from Allen-Bradley, listed in Variable Frequency Drives (VFD). Specifications on file: Altitude 1000 m; Application Power circuit: three-phase; Application in industrial area permitted True; Class 1 connection API Network connections: 2...3200 ms. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the 294E-FD4P2Z-G2-3-SB from Allen-Bradley is listed under the Variable Frequency Drives (VFD) category. The manufacturer's published data for this part number specifies Width: 381 mm and Height: 219.32 mm.
Control circuit (external source): 19.2...26.4V DC @ unswitched power supply requirements
Published specifications for this part include Degree of protection (IP): IP66; Degree of protection (NEMA): 4; Depth: 202.27 mm; Altitude: 1000 m; Mechanical life operations: Disconnect: 200000; Number of poles: Power circuit: 3; Shipping weight, approx: 7.3 kg; Rated impulse voltage (Uimp): Power circuit: 4 kV; Tightening torque: Source brake: 4.8 ± 2 in-lb (0.5 ± 0.2 Nm); Application in industrial area permitted: True; Carrier frequency: Power circuit: 2...10 kHz, drive rating based on 4 kHz; Efficiency: Power circuit: 97.5% typical. See the Specifications tab on this page for the full technical table.
Specifications
| Acceleration/deceleration | Power circuit: two independently progmable acceleration and deceleration times. Each time can be progmed from 0...600 s in 0.1 s increments. |
|---|---|
| Address conflict detection (ACD) | IP v4 address conflict detection for EtherNet/IP devices |
| Altitude | 1000 m |
| Application | Power circuit: three-phase |
| Application in industrial area permitted | True |
| Carrier frequency | Power circuit: 2...10 kHz, drive rating based on 4 kHz |
| Class 1 connection API | Network connections: 2...3200 ms |
| Class 3 connection API | Network connections: 100...10000 ms |
| Concurrent explicit messages, max (CIP Class 3) | Network connections: 6 |
| Concurrent sessions | Web server: 20 |
| Concurrent TCP connections | Network connections: maximum of 5 encapsulated messages over both TCP and UDP |
| Conducted emission | EN 61800-3, C3 |
| Consume instance (command) | Default of 4 words (instance 154) |
| Control ride through | Power circuit: minimum ride through is 0.5 s - typical value is 2 s |
| Current, max | Control circuit (external source): 450 mA @ unswitched power supply requirements |
| Current, nom | Control circuit (external source): 275 mA @ switched and unswitched power supply requirements |
| Data | Transported over both TCP and UDP |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4 |
| Depth | 202.27 mm |
| Device level ring support | Beacon performance, IEEE 1588 transparent clock |
| DeviceLogix I/O response | Input ratings: 2 ms @ 500 Hz |
| DHCP timeout | 30 s |
| Dielectric withstand | Power circuit: 2500V AC per IEC |
| Disconnect lock out | Maximum of 3/8 in (9.5 mm) diam lock shackle or hasp |
| Disconnect LOTO locks | Up to 2 locks or hasps are supported |
| Web server: support simple mail transfer protocol (SMTP) | |
| Efficiency | Power circuit: 97.5% typical |
| Electrostatic discharge | 4 kV contact and 8 kV air |
| Estimated Lead Time | 5 days |
| Ethernet cable | Category 5e: shielded or unshielded |
| Ethernet communication rate | 10/100 Mbps, half or full-duplex |
| Ethernet connector | M12, D code, female, with Ethernet keying, 4 pin |
| Ethernet network topologies supported | Star, tree, linear and ring |
| Ethernet ports | 2 (embedded switch) |
| EtherNet/IP ODVA – conformance testing | EtherNet/IP interoperability performance - per A9 PF 2.1 |
| Fast transient | 2 kV (power), 2 kV (PE), 1 kV (communications and control) |
| Faultless power ride through | Power circuit: 10 ms |
| Fuse rating | CC, J, or T fuse (40 A, maximum) |
| Gland plate options | ArmorConnect power media connection (no cable) |
| Height | 219.32 mm |
| Humidity | 5...95% noncondensing |
| I/O connections, max (CIP Class 1) | Network connections: supports up to 2 class 1 CIP connections [exclusive owner (data) or listen-only]. One connection per PLC. Listen only connection requires a data connection to be established. |
| Input bounce filter (software configurable) | OFF-ON or ON-OFF: 0.5 ms + 64 ms |
| Input connection type | Single keyed M12, quick disconnect |
| Input current (each) | Control circuit (external source): 50 mA @ unswitched power supply requirements |
| Input filtering | 100 µs |
| Input OFF-state voltage | 5V DC |
| Input ON-state current (pin 4) | 2.6mA @ 24V DC |
| Input ON-state voltage (pin 4), nom | 10...26.4V DC @ 24V DC |
| Input per connection | 1/each |
| Input power terminals | Power circuit: L1, L2, L3 |
| Input supply voltage | Unswitched power A3/A2 |
| Insulation voltage | Rated 250V AC |
| Insulation voltage (Ui) | Output ratings: rated 2000V AC per IEC |
| IP configuration | Static, DHCP or BOOTP |
| IPS option | Control circuit (internal source): an internal 50 W power supply sources 24V DC for input, outputs and logic control (3-phase line power of 400Y/230V...480Y/277V @ 50/60Hz is required) |
| Mains frequency | 50/60 Hz |
| Max. output frequency | 400 Hz |
| Mechanical life operations | Disconnect: 200000 |
| Message support | Unicast or multicast |
| Motor cable length, max | Power circuit: 10 m (32 ft)(CE application), Power circuit: 14 m (45.9 ft) (non-CE application) |
| Motor control features | Power circuit: flying start, V/F ratio, bus regulator, 4 preset speeds |
| Motor control type | Power circuit: slip compensation (Volts/Hz) |
| Motor power terminals | Power circuit: T1, T2, T3 |
| Number of input devices, max | 6 |
| Number of inputs (x 50 mA) | Control circuit (external source): user defined @ switched and unswitched power supply requirements |
| Number of outputs (x 500 mA) | Control circuit (external source): user defined @ switched and unswitched power supply requirements |
| Number of outputs, max | 6 |
| Number of poles | Power circuit: 3 |
| Operating dielectric withstand | 2000V AC per IEC |
| Operating frequency | Power circuit: 50/60 Hz (±10%) |
| Operating Temperature | -20...40 °C (-4...104 °F), up to 50 °C (122 °F) without derating, when properly rated line reactors are installed in branch circuit |
| Output blocking voltage, max | 35V DC |
| Output connection type | Single keyed M12, quick disconnect |
| Output current (each) | Control circuit (external source): 500 mA @ switched power supply requirements |
| Output frequency | Power circuit: 0...400 Hz progmable |
| Output load types | Resistive or light inductive |
| Output OFF-state leakage current, max | 1 µa |
| Output operating current (Ie), nom | 500 mA per point |
| Output overcurrent protection | 1.5 A (the sum of all outputs cannot exceed this value) |
| Output per connection | 1/each |
| Output state | Normally open (NO) |
| Output supply voltage (switched power) | A1/A2 |
| Output surge suppression | Integrated diode to help protect against switching loads |
| Output thermal current (Ithe), max | 500 mA per point |
| Output utilization category | DC-1, DC-13 per IEC |
| Over voltage | Power circuit: 380...480V AC input - trip occurs at 810V DC bus voltage (equivalent to 575V AC incoming line) |
| Overload type | Power circuit: 150% @ 60s or 200% @ 3s @ solid-state I²t |
| Overvoltage category | Power circuit: III |
| Overvoltage protection | Control circuit (external source): reverse-polarity protected |
| Packet rate (pps) | 500 packets-per-s (2000 µs), Tx, 500 packets-per-s (2000 µs), Rx |
| PE (earth ground) terminal | Power circuit: 4 PE terminals |
| Pollution degree | 3 |
| Power | Control circuit (external source): 6.6 W @ switched and unswitched power supply requirements |
| Power Rating | Source brake: 10A @ 600V AC |
| Power Supply | Control circuit (external source): NEC Class 2 |
| Power, max | Control circuit (external source): 6.6 W + (24V DC x user defined) @ switched and unswitched power supply requirements |
| Produce instance (status) | Default of 16 words (instance 156) |
| Radiated emissions | EN 61800-3, C3 |
| Radio frequency conducted disturbance immunity | 10V @ 150kHz...80 MHz |
| Radio frequency electromagnetic field | EN 55011 Class group 2, 10V/m, 80 MHz...1 GHz |
| Rated impulse voltage (Uimp) | Power circuit: 4 kV |
| Rated input operation voltage | 24V DC |
| Rated operating input current, max | Power circuit: 6.5A @ 400V AC, 50 Hz, 2.0 Hp (1.5 kW) |
| Rated operating voltage | Control circuit (external source): 24V DC (+10%, -20%) |
| Rated operating voltage, max | Power circuit: 400Y/230...480Y/277 (-15%, +10%) |
| Rated output operating voltage (Ue) | 19.2...26.4V DC |
| Request packet interval (RPI) | Network connections: 20 ms default (2 ms minimum) |
| Reset mode | Power circuit: automatic/manual |
| RMS symmetrical amperes | 10 kA @ 480Y/277 (short circuit current rating) |
| Security | Web server: login and password configurable |
| Sensor input operating voltage | 19.2...26V DC |
| Sensor sourcing input current (pin 1), max | 50 mA per point (maximum 300 mA total for sourcing one device) |
| Shipping weight, approx | 7.3 kg |
| Shock | Opsal: 30 G, exceeds IEC 60947-1 |
| Short circuit coordination | Type 1 |
| Sockets, max | 150 |
| Source brake (EM brake) current | Power circuit: maximum load current of 3 A |
| Speed regulation - open loop with slip compensation | Power circuit: ±2% of base speed across a 40:1 speed range |
| Standard Warranty Duration | 1 year |
| Stop modes | Power circuit: multiple progmable stop modes including, rA, coast, DC-brake, rA to hold, and S-curve |
| Storage and transportation temperature | -25 °C |
| Supporting protocol for EtherNet/IP | True |
| Surge transient | 1 kV (12) L-L, 2 kV (2) L-N (earth) |
| Tightening torque | Source brake: 4.8 ± 2 in-lb (0.5 ± 0.2 Nm) |
| Trip Class | Power circuit: Class 10 protection with speed sensitive response and power-down overload retention function |
| Trip rating | Power circuit: 200% hardware limit, 300% instantaneous fault |
| Type of inputs | 24V DC current sinking |
| Type of outputs | DC sourcing |
| Under voltage | Power circuit: 380...480V AC Input - trip occurs at 390V DC bus voltage (equivalent to 275V AC incoming line) |
| UPC | 884951912311 |
| User options 1 | HAND-OFF-AUTO selector keypad |
| User options 2 | M25 source brake contactor connector |
| Vibration | Opsal: 2.5 G @ tested to MIL-STD-810G, exceeds IEC 60947-1 |
| Voltage | Control circuit (external source): 19.2...26.4V DC @ unswitched power supply requirements |
| Web server | HTTP 1.1 |
| Webpage features | Web server: status, diagnostics and configuration tabs |
| Width | 381 mm |
| Wire size | Source brake: #16 ... AWG (1.0...4.0 mm²) per terminal |
| Wire strip length | 0.35 ±0.01 in (9 ±2 mm) |
| Wire Type | Multi-strand copper wire |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 294E-FD4P2Z-G2-3-SB |
| Product category | Variable Frequency Drives (VFD) |
| Country of origin | Mexico |
| Published specifications | 142 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 294E-FD4P2Z-G2-3-SB?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 294E-FD4P2Z-G2-3-SB?
294E-FD4P2Z-G2-3-SB is an Allen-Bradley part, sourced to the exact manufacturer specification.
What is the lifecycle status of 294E-FD4P2Z-G2-3-SB?
No published lifecycle status is on file for 294E-FD4P2Z-G2-3-SB. Allen-Bradley lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 294E-FD4P2Z-G2-3-SB?
Key specifications include Acceleration/deceleration: Power circuit: two independently progmable acceleration and deceleration times. Each time can be progmed from 0...600 s in 0.1 s increments.; Address conflict detection (ACD): IP v4 address conflict detection for EtherNet/IP devices; Altitude: 1000 m; Application: Power circuit: three-phase. The full specification table on this page lists every published attribute for this part.
How quickly can 294E-FD4P2Z-G2-3-SB ship?
Lead time is quoted per part and confirmed on your quote.
