Allen-Bradley PowerFlex 700 AC Drive 52 A 20 Hp 20B 20BB052A0AYNAEC1
Allen-Bradley 20BB052A0AYNAEC1 - AC Drive - Operating Temperature: 50 °C @ 325V DC; Storage Temperature: -40 °C; Relative Humidity: 5...95% noncondensing.
In our catalog, the 20BB052A0AYNAEC1 from Allen-Bradley is listed under the AC Drive category. The manufacturer's published data for this part number specifies Operating Temperature: 50 °C @ 325V DC and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Relative Humidity: 5...95% noncondensing; Lifecycle Status: Discontinued; Sub Brand: PowerFlex 700 AC Drive; Degree of protection (IP): IP20; Degree of protection (NEMA): 1; Altitude: 1000 m (3300 ft.) maximum without derating; Brake IGBT: Brake IGBT Installed; Brake Resistor: No Internal; Feedback Options: Standard Encoder; Filter Options: W/ EMC Filt & ComModeChoke; Internal Communication Module: EtherNet/IP; Efficiency: 97.5% at rated A, nominal line volts. See the Specifications tab on this page for the full technical table.
| Altitude | 1000 m (3300 ft.) maximum without derating |
|---|---|
| Brake IGBT | Brake IGBT Installed |
| Brake Resistor | No Internal |
| Custom Drive/Firmware | No Custom Firmware |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Efficiency | 97.5% at rated A, nominal line volts |
| Feedback Options | Standard Encoder |
| Filter Options | W/ EMC Filt & ComModeChoke |
| Input frequency tolerance | 47 Hz |
| Integrated breaking resistance | false |
| Internal Communication Module | EtherNet/IP |
| Lifecycle Status | Discontinued |
| Line voltage, nom | 240V @ 200...240V drive rating, 230V nominal motor voltage |
| Mains frequency | 60 Hz |
| Mains voltage | 240 V |
| Max. output frequency | 420 Hz |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Operating Temperature | 50 °C @ 325V DC |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Storage Temperature | -40 °C |
| Sub Brand | PowerFlex 700 AC Drive |
| Supporting protocol for CAN | true |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for LON | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| With control element | true |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 20BB052A0AYNAEC1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20BB052A0AYNAEC1?
20BB052A0AYNAEC1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 20BB052A0AYNAEC1 discontinued, and can I still get one?
Yes — our product data lists 20BB052A0AYNAEC1 with a manufacturer lifecycle status of "Discontinued". You can still get one: sourcing discontinued, superseded and long-obsolete parts is core to what KKM Solutions does. We locate remaining new-old-stock through our supplier network, and where a part is genuinely unavailable we identify a form-fit-function equivalent and confirm the differences with you before you commit. Send 20BB052A0AYNAEC1 through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 20BB052A0AYNAEC1?
Key specifications include Altitude: 1000 m (3300 ft.) maximum without derating; Brake IGBT: Brake IGBT Installed; Brake Resistor: No Internal; Custom Drive/Firmware: No Custom Firmware. The full specification table on this page lists every published attribute for this part.
How quickly can 20BB052A0AYNAEC1 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:

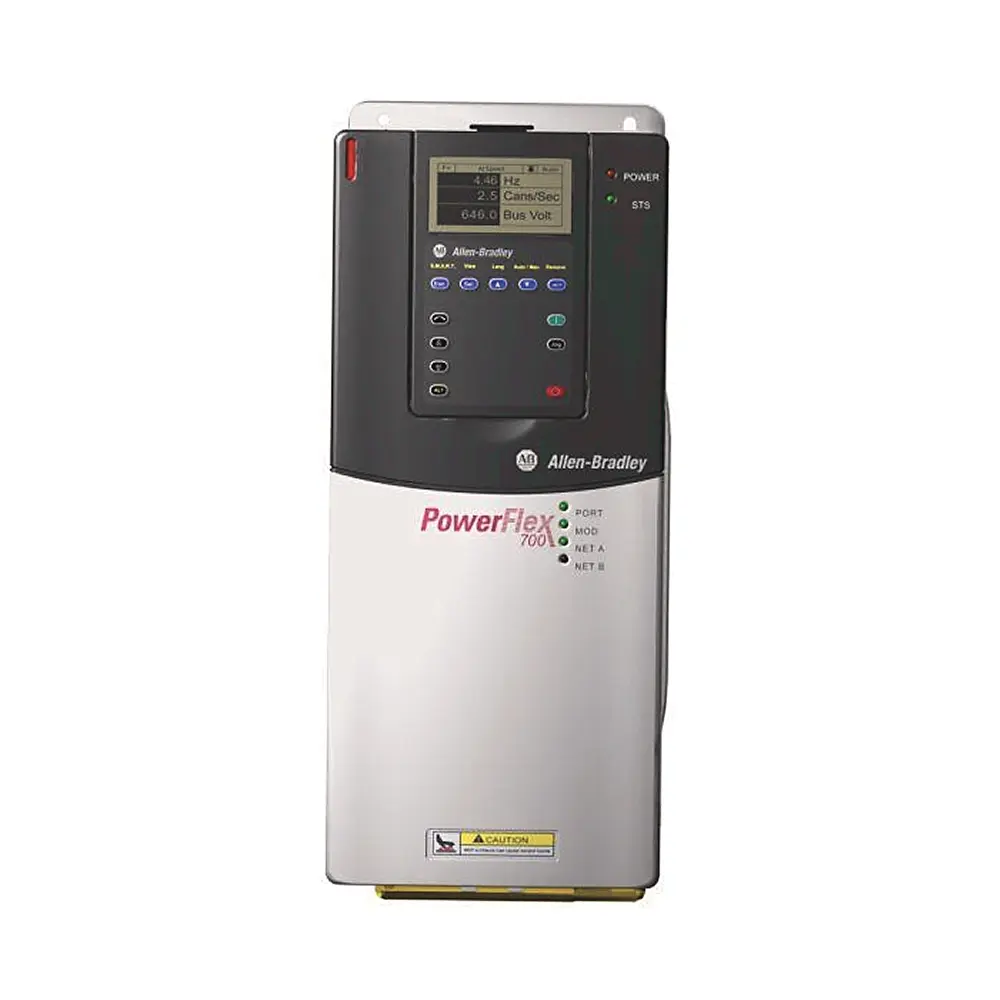

- 20BB052A0AYNADD1NNAD — Allen-Bradley PowerFlex 700 AC Drive 52 A 20 Hp 20B 20BB052A0AYNADD1NNAD
