Allen-Bradley 20AD3P4C0AYNNNC0
Allen-Bradley 20AD3P4C0AYNNNC0 - industrial components - Storage Temperature: -40 °C; Relative Humidity: 5...95% noncondensing; Sub Brand: PowerFlex 70 AC Drive.
In our catalog, the 20AD3P4C0AYNNNC0 from Allen-Bradley is listed under the industrial components category. The manufacturer's published data for this part number specifies Storage Temperature: -40 °C and Relative Humidity: 5...95% noncondensing.
Key manufacturer data on file for this item includes Sub Brand: PowerFlex 70 AC Drive; Degree of protection (IP): IP66; Degree of protection (NEMA): 4X; Altitude: 1000 m (3300 ft.) maximum without derating; Brake IGBT: Brake IGBT Installed; Brake Resistor: No Internal; Control: Enhanced Control with 24V I/O; Application in domestic- and commercial area permitted: True; Application in industrial area permitted: True; Efficiency: 97.5% at rated A, nominal line volts; Input frequency tolerance: 47 Hz; Integrated breaking resistance: False. See the Specifications tab on this page for the full technical table.
| Altitude | 1000 m (3300 ft.) maximum without derating |
|---|---|
| Application in domestic- and commercial area permitted | True |
| Application in industrial area permitted | True |
| Brake IGBT | Brake IGBT Installed |
| Brake Resistor | No Internal |
| Control | Enhanced Control with 24V I/O |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Efficiency | 97.5% at rated A, nominal line volts |
| Estimated Lead Time | 21 days |
| Input frequency tolerance | 47 Hz |
| Integrated breaking resistance | False |
| Internal dynamic brake resistors | 115 ohm |
| Mains frequency | 50 Hz |
| Mains voltage | 480 V |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Sub Brand | PowerFlex 70 AC Drive |
| Supporting protocol for CAN | True |
| Supporting protocol for DeviceNet | True |
| Supporting protocol for EtherNet/IP | True |
| Supporting protocol for Modbus | True |
| Supporting protocol for PROFIBUS | True |
| Supporting protocol for TCP/IP | True |
| UPC | 820919389351 |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| Voltage tolerance | -10 % |
| With control element | True |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 20AD3P4C0AYNNNC0?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20AD3P4C0AYNNNC0?
20AD3P4C0AYNNNC0 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 20AD3P4C0AYNNNC0 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 20AD3P4C0AYNNNC0 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 20AD3P4C0AYNNNC0?
Key specifications include Altitude: 1000 m (3300 ft.) maximum without derating; Application in domestic- and commercial area permitted: True; Application in industrial area permitted: True; Brake IGBT: Brake IGBT Installed. The full specification table on this page lists every published attribute for this part.
How quickly can 20AD3P4C0AYNNNC0 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 20AD3P4C0AYNANC0 — Allen-Bradley 20AD3P4C0AYNANC0 PowerFlex 70 AC drive, 5 HP (3.7 kW), 480V three-phase…
Related Products

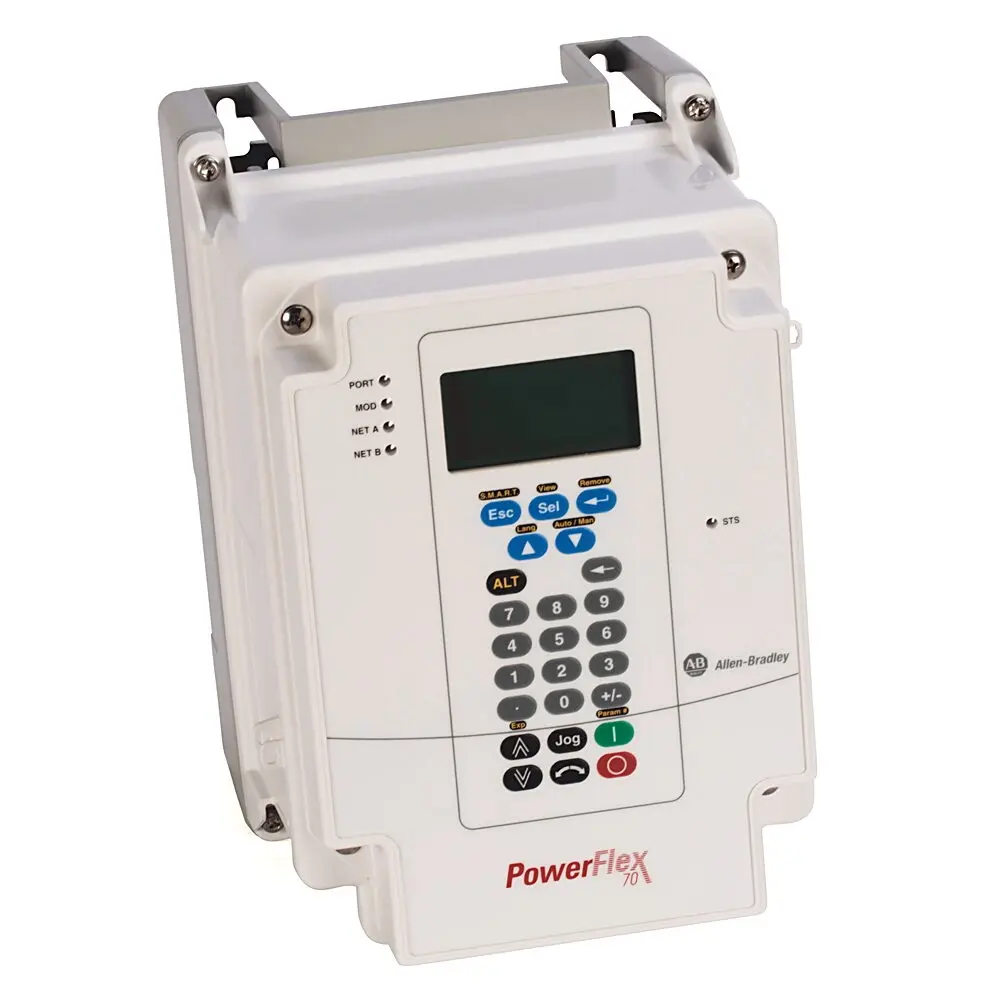

Allen-Bradley 20A,2.1 A at 1 Hp,480V AC Three Phase,IP66/NEMA/UL 4X/12…
