Allen-Bradley 20AB070C3AYNANC0
Allen-Bradley 20AB070C3AYNANC0 - industrial components - Storage Temperature: -40 °C; Relative Humidity: 5...95% noncondensing; Enclosure Type: Wall/machine mount-IP66/NEMA Type 4X/12 (indoor use).
In our catalog, the 20AB070C3AYNANC0 from Allen-Bradley is listed under the industrial components category. The manufacturer's published data for this part number specifies Storage Temperature: -40 °C and Relative Humidity: 5...95% noncondensing.
Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments
Key manufacturer data on file for this item includes Enclosure Type: Wall/machine mount-IP66/NEMA Type 4X/12 (indoor use); Sub Brand: PowerFlex 70 AC Drive; Degree of protection (IP): IP66; Degree of protection (NEMA): 4X; Altitude: 1000 m (3300 ft.) maximum without derating; Encoder Type: Incremental, dual channel; Brake IGBT: Brake IGBT installed; Brake Resistor: No Internal; Control: Enhanced Control with 24V I/O; Filter Options: W/ EMC Filt & ComModeChoke; Internal Communication Module: No Communication Module; AC input overvoltage trip: 285V AC @ 240V. See the Specifications tab on this page for the full technical table.
| AC input overvoltage trip | 285V AC @ 240V |
|---|---|
| AC input undervoltage trip | 138V AC @ 240V |
| Acceleration/deceleration | Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments |
| Altitude | 1000 m (3300 ft.) maximum without derating |
| Application in domestic- and commercial area permitted | True |
| Application in industrial area permitted | True |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust, If the drive is not going to be installed immediately, store the drive where it is not exposed to a corrosive atmosphere |
| Brake IGBT | Brake IGBT installed |
| Brake Resistor | No Internal |
| Bus overvoltage trip | 405V DC @ 240V |
| Bus undervoltage fault level | 160V DC @ 240V |
| Bus undervoltage output shutoff | 153V DC @ 240V |
| Bus voltage, nom | 324V DC @ 240V |
| Carrier frequency | Standard control: 2, 3, 4, 5, 6, 7, 8, 9, and 10 kHz, vector control: 2, 4, 8, and 12 kHz, drive rating based on 4 kHz |
| Circuit breaker current rating, max | 300A @ 208V AC, 3-phase |
| Control | Enhanced Control with 24V I/O |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Control method | Sine coded PWM with progmable carrier frequency. Ratings apply to all drives |
| Control options | Enhanced control with 24V I/O |
| Cooling fan operation | Frames B, D, and E: fan operates when power is applied and in run condition |
| Current limit capability | Proactive current limit progmable from 20...160% of rated output current, Independently progmable proportional and integral gain |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Depth, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 219.8 mm |
| Displacement power factor (all drives) | 0.98 across speed range |
| Documentation | Manual |
| Drive full power range | 230...264V @ 200...240V drive rating, 230V nominal motor voltage |
| Drive operating range | 180...264V @ 200...240V drive rating, 230V nominal motor voltage |
| Drive overcurrent trip | Software current limit: 20...160% of rated current |
| Drive to motor power ratio, max | Recommended not greater than 2:1 ratio |
| Drive to motor power ratio, min | Recommended not less than 1:2 ratio |
| Dual element time delay fuse current rating | 90...175A @ 208V AC, 3-phase |
| Efficiency | 97.5% at rated A, nominal line volts |
| Enclosure Type | Wall/machine mount-IP66/NEMA Type 4X/12 (indoor use) |
| Encoder duty cycle | 50% ±10% |
| Encoder quadrature | 90° ±27° |
| Encoder supply | 5V/12V configurable ±5% |
| Encoder Type | Incremental, dual channel |
| Estimated Lead Time | 21 days |
| External watts loss | 650.7 W @ 240V @ 25Hp normal duty |
| Feedback option | No ftdback |
| Filter Options | W/ EMC Filt & ComModeChoke |
| Frequency accuracy | Digital input: within ±0.01% of set output frequency |
| Frequency control-speed regulation | With slip compensation (Volts per Hz mode): 0.5% of base speed across 40:1 speed range, 40:1 operating range, 10 rad/sec bandwidth |
| Ground fault trip | Phase-to-ground on drive output |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Height, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 555.8 mm |
| Human interface model | LCD display, full numeric keypad |
| Input current rating | 72.3A @ 208V AC, 3-phase |
| Input frequency tolerance | 47 Hz |
| Input phases | Three-phase input provides full rating for all drives. single-phase ops provides 50% of rated current |
| Input power rating | 26.8 kVA @ 240V AC, 3-phase |
| Integrated breaking resistance | False |
| Intermittent overload | 110% overload capability for up to 1 min, 150% overload capability for up to 3 s |
| Internal Communication Module | No Communication Module |
| Internal EMC filtering | S environment filter per CE EMC directive (89/336/EEC) |
| Internal watts loss | 51.6 W @ 240V @ 25Hp normal duty |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Line voltage, nom | 240V @ 200...240V drive rating, 230V nominal motor voltage |
| Logic control ride-thru | 0.5 s minimum, 2 s typical |
| Mains frequency | 60 Hz |
| Mains voltage | 240 V |
| Motor circuit protector current rating, max | 100A @ 240V AC, 3-phase |
| Motor overload protection | Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272 |
| Motor voltage, nom | 230V @ 200...240V drive rating, 240V nominal line voltage |
| Non-time delay fuse current rating | 90...300A @ 208V AC, 3-phase |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Output current rating | 78.2 A, 25 Hp normal duty, frame E (208V @ 60Hz input) |
| Output current rating, 1 min | 93.1A @ 208V AC, 3-phase |
| Output current rating, 3 sec | 62A @ 208V AC, 1-phase |
| Output current rating, continuous | 78.2A @ 208V AC, 3-phase |
| Output frequency range | Standard control: 0...400 Hz, enhanced control: 0...500 Hz |
| Output voltage range | 0 to rated motor voltage |
| Pollution degree 1 according to EN 61800-5-1 | No pollution occurs, only dry non-conductive pollution occurs, and has no influence |
| Pollution degree 2 according to EN 61800-5-1 | Normally only non-conductive pollution occurs, Occasionally a temporary conductivity, caused by condensation is expected when the drive is out of ops |
| Pollution degree 3 according to EN 61800-5-1 | Conductive pollution occurs, dry non-conductive pollution occurs and becomes conductive due to condensation |
| Pollution degree 4 according to EN 61800-5-1 | The pollution generates persistent conductivity caused, for exAle, by conductive dust, rain or snow |
| Power ride-thru | 15 ms at full load |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Selectable motor control | Sensorless vector with full tuning. Standards V/Hz with full custom capability and vector control |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Short circuit current rating, max | Maximum short circuit current rating to match specified fuse/circuit breaker capability |
| Short circuit rating, max | 200000 A symmetrical |
| Short circuit trip | Phase-to-phase on drive output |
| Speed control-speed regulation | Without ftdback (Vector Control mode): 0.1% of base speed across 120:1 speed range, 120:1 operating range, 30 rad/sec bandwidth |
| Standard Warranty Duration | 1 year |
| Stop modes | Multiple progmable stop modes including - RA, Coast, DC-brake, Fast brake, RA-to-hold and S-curve |
| Storage Temperature | -40 °C |
| Sub Brand | PowerFlex 70 AC Drive |
| Supporting protocol for CAN | True |
| Supporting protocol for DeviceNet | True |
| Supporting protocol for EtherNet/IP | True |
| Supporting protocol for Modbus | True |
| Supporting protocol for PROFIBUS | True |
| Supporting protocol for TCP/IP | True |
| Surrounding air temperature, max | IP66, NEMA/UL Type 4X/12(indoor): 0...40 °C (32...104 °F) without derating |
| Surrounding environment pollution degree | All enclosures are acceptable for pollution degree 1 and 2, an enclosure that meets or exceeds IP54, NEMA/UL type 12, is required for pollution degree 3 and 4 |
| Torque regulation | Without ftdback +/-10%, with ftdback +/-5% |
| Total watts loss | 702.3 W @ 240V @ 25Hp normal duty |
| UPC | 820919443268 |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| Voltage tolerance | -10 % |
| Weight, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 18.6 kg |
| Width, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 280.3 mm |
| With control element | True |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 20AB070C3AYNANC0?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20AB070C3AYNANC0?
20AB070C3AYNANC0 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 20AB070C3AYNANC0 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 20AB070C3AYNANC0 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 20AB070C3AYNANC0?
Key specifications include AC input overvoltage trip: 285V AC @ 240V; AC input undervoltage trip: 138V AC @ 240V; Acceleration/deceleration: Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments; Altitude: 1000 m (3300 ft.) maximum without derating. The full specification table on this page lists every published attribute for this part.
How quickly can 20AB070C3AYNANC0 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 20AB070C3AYNANG0 — Allen-Bradley PowerFlex 70 AC Drive 70 A at 25 Hp 20A 20AB070C3AYNANG0
Related Products
Allen-Bradley 20A,70 A at 25 Hp,208/240V AC Three Phase,IP20/NEMA/UL 1,No…
Allen-Bradley 20A,6.8 A at 2 Hp,208/240V AC Three Phase,IP20/NEMA/UL 1,No…

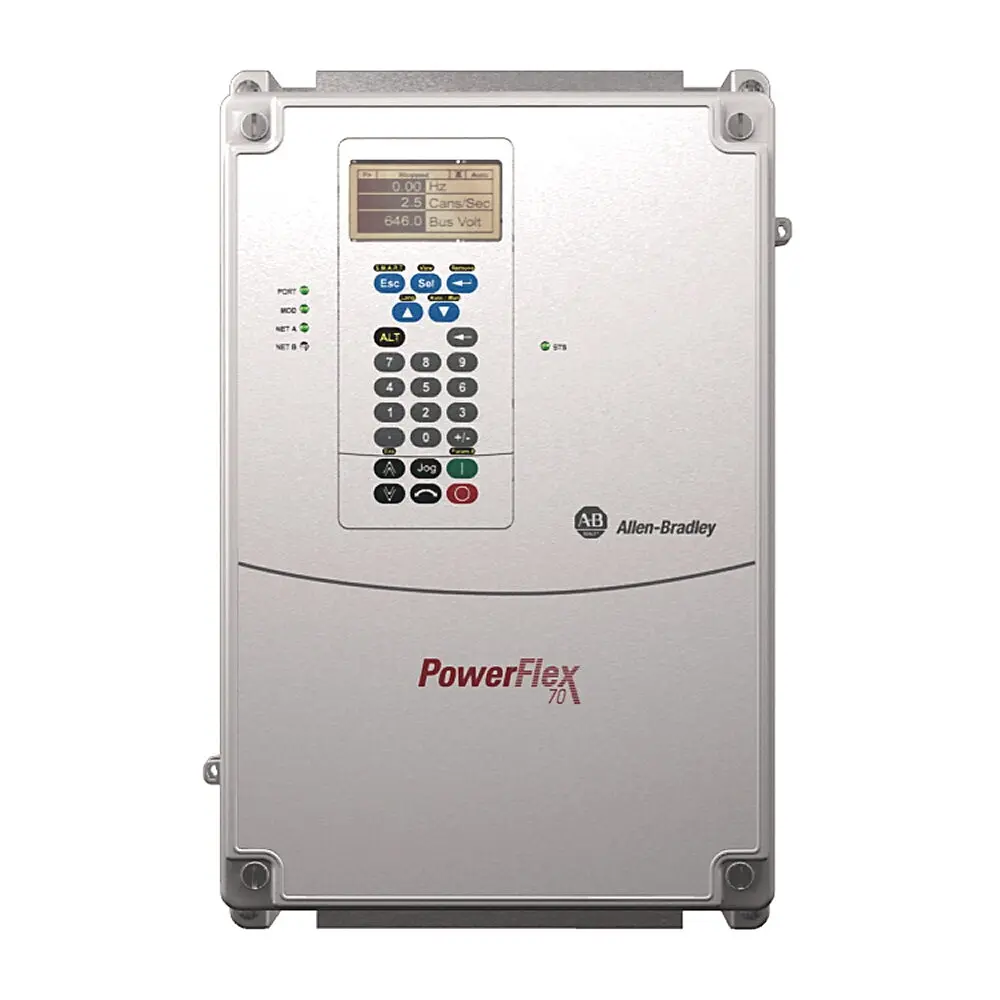

Allen-Bradley 20A,54 A at 20 Hp,208/240V AC Three Phase,IP66/NEMA/UL 4X/12…
