20AB054A0NYNAEC0 Allen-Bradley PowerFlex 70 AC Drive 54 A at 20 Hp 20A
KKM Solutions is an independent parts distributor, not an authorized Allen-Bradley dealer — how we source.
Allen-Bradley 20AB054A0NYNAEC0 - AC Drive - Storage Temperature: -40 °C; Relative Humidity: 5...95% noncondensing; Lifecycle Status: End of Life.
Overview
Part number 20AB054A0NYNAEC0 from Allen-Bradley, listed in Variable Frequency Drives (VFD). Specifications on file: AC input overvoltage trip 285V AC @ 240V; AC input undervoltage trip 138V AC @ 240V; Application in domestic- and commercial area permitted true; Application in industrial area permitted true. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the Allen-Bradley 20AB054A0NYNAEC0, a part number in the AC Drive category. The manufacturer's published data for this part number specifies Storage Temperature: -40 °C and Relative Humidity: 5...95% noncondensing.
Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments
Key manufacturer data on file for this item includes Lifecycle Status: End of Life; Enclosure Type: Panel mount-IP20/NEMA Type 1; Sub Brand: PowerFlex 70 AC Drive; Degree of protection (IP): IP20; Degree of protection (NEMA): 1; Altitude: 1000 m (3300 ft.) maximum without derating; Encoder Type: Incremental, dual channel; Brake IGBT: Brake IGBT installed; Brake Resistor: Without drive mounted brake resistor; Control: Enhanced Control with 24V I/O; Feedback Options: No ftdback; Filter Options: W/ EMC Filt & ComModeChoke. See the Specifications tab on this page for the full technical table.
Specifications
| AC input overvoltage trip | 285V AC @ 240V |
|---|---|
| AC input undervoltage trip | 138V AC @ 240V |
| Acceleration/deceleration | Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments |
| Altitude | 1000 m (3300 ft.) maximum without derating |
| Application in domestic- and commercial area permitted | true |
| Application in industrial area permitted | true |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust, If the drive is not going to be installed immediately, store the drive where it is not exposed to a corrosive atmosphere |
| Brake IGBT | Brake IGBT installed |
| Brake Resistor | Without drive mounted brake resistor |
| Bus overvoltage trip | 405V DC @ 240V |
| Bus undervoltage fault level | 160V DC @ 240V |
| Bus undervoltage output shutoff | 153V DC @ 240V |
| Bus voltage, nom | 324V DC @ 240V |
| Carrier frequency | Standard control: 2, 3, 4, 5, 6, 7, 8, 9, and 10 kHz, vector control: 2, 4, 8, and 12 kHz, drive rating based on 4 kHz |
| Circuit breaker current rating, max | 200A @ 240V AC, 3-phase |
| Control | Enhanced Control with 24V I/O |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Control method | Sine coded PWM with progmable carrier frequency. Ratings apply to all drives |
| Control options | Enhanced control with 24V I/O |
| Cooling fan operation | Frames B, D, and E: fan operates when power is applied and in run condition |
| Current limit capability | Proactive current limit progmable from 20...160% of rated output current, Independently progmable proportional and integral gain |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Depth, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 219.8 mm |
| Displacement power factor (all drives) | 0.98 across speed range |
| Documentation | No manual |
| Drive full power range | 230...264V @ 200...240V drive rating, 230V nominal motor voltage |
| Drive operating range | 180...264V @ 200...240V drive rating, 230V nominal motor voltage |
| Drive overcurrent trip | Software current limit: 20...160% of rated current |
| Drive to motor power ratio, max | Recommended not greater than 2:1 ratio |
| Drive to motor power ratio, min | Recommended not less than 1:2 ratio |
| Dual element time delay fuse current rating | 80...125A @ 208V AC, 3-phase |
| Efficiency | 97.5% at rated A, nominal line volts |
| Enclosure Type | Panel mount-IP20/NEMA Type 1 |
| Encoder duty cycle | 50% ±10% |
| Encoder quadrature | 90° ±27° |
| Encoder supply | 5V/12V configurable ±5% |
| Encoder Type | Incremental, dual channel |
| External watts loss | 494.6 W @ 240V @ 20Hp normal duty |
| Feedback option | No ftdback |
| Feedback Options | No ftdback |
| Filter Options | W/ EMC Filt & ComModeChoke |
| Frequency accuracy | Digital input: within ±0.01% of set output frequency |
| Frequency control-speed regulation | With slip compensation (Volts per Hz mode): 0.5% of base speed across 40:1 speed range, 40:1 operating range, 10 rad/sec bandwidth |
| Ground fault trip | Phase-to-ground on drive output |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Height, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 555.8 mm |
| Human interface model | No HIM-blank plate |
| Input current rating | 57.5A @ 208V AC, 3-phase |
| Input frequency tolerance | 47 Hz |
| Input phases | Three-phase input provides full rating for all drives. single-phase ops provides 50% of rated current |
| Input power rating | 20.7 kVA @ 240V AC, 3-phase |
| Integrated breaking resistance | false |
| Intermittent overload | 110% overload capability for up to 1 min, 150% overload capability for up to 3 s |
| Internal Communication Module | EtherNet/IP |
| Internal EMC filtering | s environment filter per CE EMC directive (89/336/EEC) |
| Internal watts loss | 44.9 W @ 240V @ 20Hp normal duty |
| Lifecycle Status | End of Life |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Line voltage, nom | 240V @ 200...240V drive rating, 230V nominal motor voltage |
| Logic control ride-thru | 0.5 s minimum, 2 s typical |
| Mains frequency | 60 Hz |
| Mains voltage | 240 V |
| Motor circuit protector current rating, max | 100A @ 240V AC, 3-phase |
| Motor overload protection | Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272 |
| Motor voltage, nom | 230V @ 200...240V drive rating, 240V nominal line voltage |
| Non-time delay fuse current rating | 80...200A @ 208V AC, 3-phase |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Output current rating | 56 A, 20 Hp normal duty, frame E (208V @ 60Hz input) |
| Output current rating, 1 min | 72.4A @ 208V AC, 3-phase |
| Output current rating, 3 sec | 96.6A @ 208V AC, 3-phase |
| Output current rating, continuous | 62.1A @ 208V AC, 3-phase |
| Output frequency range | Standard control: 0...400 Hz, enhanced control: 0...500 Hz |
| Output voltage range | 0 to rated motor voltage |
| Pollution degree 1 according to EN 61800-5-1 | No pollution occurs, only dry non-conductive pollution occurs, and has no influence |
| Pollution degree 2 according to EN 61800-5-1 | Normally only non-conductive pollution occurs, Occasionally a temporary conductivity, caused by condensation is expected when the drive is out of ops |
| Pollution degree 3 according to EN 61800-5-1 | Conductive pollution occurs, dry non-conductive pollution occurs and becomes conductive due to condensation |
| Pollution degree 4 according to EN 61800-5-1 | The pollution generates persistent conductivity caused, for exAle, by conductive dust, rain or snow |
| Power ride-thru | 15 ms at full load |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Selectable motor control | Sensorless vector with full tuning. Standards V/Hz with full custom capability and vector control |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Short circuit current rating, max | Maximum short circuit current rating to match specified fuse/circuit breaker capability |
| Short circuit rating, max | 200000 A symmetrical |
| Short circuit trip | Phase-to-phase on drive output |
| Speed control-speed regulation | Without ftdback (Vector Control mode): 0.1% of base speed across 120:1 speed range, 120:1 operating range, 30 rad/sec bandwidth |
| Stop modes | Multiple progmable stop modes including - RA, Coast, DC-brake, Fast brake, RA-to-hold and S-curve |
| Storage Temperature | -40 °C |
| Sub Brand | PowerFlex 70 AC Drive |
| Supporting protocol for CAN | true |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Surrounding air temperature, max | IP20, NEMA/UL Type 1: 0...50 °C (32...122 °F) without derating |
| Surrounding environment pollution degree | All enclosures are acceptable for pollution degree 1 and 2, an enclosure that meets or exceeds IP54, NEMA/UL type 12, is required for pollution degree 3 and 4 |
| Torque regulation | Without ftdback +/-10%, with ftdback +/-5% |
| Total watts loss | 539.5 W @ 240V @ 20Hp normal duty |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| Voltage tolerance | -10 % |
| Weight, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 18.6 kg |
| Width, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 280.3 mm |
| With control element | true |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 20AB054A0NYNAEC0 |
| Product category | Variable Frequency Drives (VFD) |
| Manufacturer lifecycle status | End of Life |
| Published specifications | 113 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 20AB054A0NYNAEC0?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20AB054A0NYNAEC0?
20AB054A0NYNAEC0 is an Allen-Bradley part, sourced to the exact manufacturer specification.
What is the lifecycle status of 20AB054A0NYNAEC0, and can I still get one?
Manufacturer lifecycle status on file for 20AB054A0NYNAEC0: "End of Life" — the value published in the product data we hold; Allen-Bradley's own product page is authoritative and may be newer. You can still get one: sourcing discontinued, superseded and long-obsolete parts is core to what KKM Solutions does. We locate remaining new-old-stock through our supplier network, and where a part is genuinely unavailable we identify a form-fit-function equivalent and confirm the differences with you before you commit. Send 20AB054A0NYNAEC0 through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 20AB054A0NYNAEC0?
Key specifications include AC input overvoltage trip: 285V AC @ 240V; AC input undervoltage trip: 138V AC @ 240V; Acceleration/deceleration: Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments; Altitude: 1000 m (3300 ft.) maximum without derating. The full specification table on this page lists every published attribute for this part.
How quickly can 20AB054A0NYNAEC0 ship?
Lead time is quoted per part and confirmed on your quote.
Related Products
Allen-Bradley Allen-Bradley PowerFlex 70 AC Drive 20A 20AB2P2C3AYNNNG0
Allen-Bradley Allen-Bradley PowerFlex 70 AC Drive 4.2 A at 1…
Allen-Bradley Allen-Bradley PowerFlex 70 AC Drive 4.2 A at 1…
Allen-Bradley Allen-Bradley PowerFlex 70 AC Drive 6.8 A at 2…
Allen-Bradley Allen-Bradley PowerFlex 70 AC Drive 6.8 A at 2…

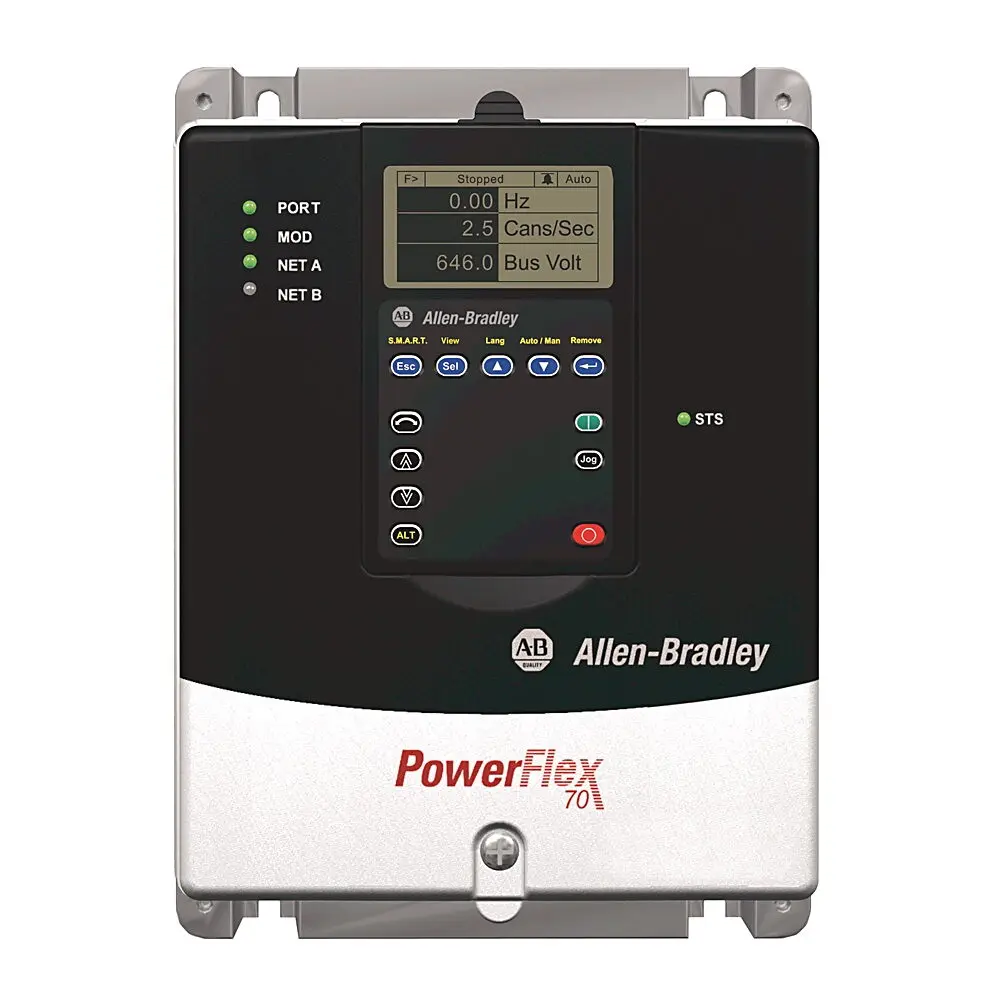

Allen-Bradley Allen-Bradley PowerFlex 70 AC Drive 9.6 A at 3…
