1783-BMS4S2SGL Allen-Bradley US
Allen-Bradley 1783-BMS4S2SGL - Layer 2 Managed Ethernet Switches - Width: 8 cm mm; Height: 12.95 cm mm; Conformal Coating: False.
Overview
In our catalog, the 1783-BMS4S2SGL from Allen-Bradley is listed under the Layer 2 Managed Ethernet Switches category. The manufacturer's published data for this part number specifies Width: 8 cm mm and Height: 12.95 cm mm.
Key manufacturer data on file for this item includes Conformal Coating: False; Degree of protection (IP): IP30; Depth: 12.19 cm; Protection type: Alarm not rated; Mounting method: DIN rail (top hat rail); Selectable start times: T4; Combo ports: 0; Network: Ethernet; RJ45 ports: 0; SFP slots: 4 FE +2 GE; Port: 6; UPC: 885630886893. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Alarm relay at 30V DC | 1 A |
|---|---|
| Alarm relay at 48V DC | 0.5 A |
| Approximate weight | 1.22 kg |
| CIP Sync | False |
| Combo ports | |
| Conformal Coating | False |
| Degree of protection (IP) | IP30 |
| Depth | 12.19 cm |
| Emissions, CISPR11 (IEC 61000-6-4) | Class A |
| ESD immunity, IEC 61000-4-2, air discharges | 8 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 6 kV |
| Ethernet | True |
| Fiber ports | |
| Firmware type | Lite |
| Height | 12.95 cm |
| Housing base material | Open-style |
| Layer 2 | False |
| Layer 3 | False |
| Magnetic pulse immunity, IEC 61000-4-9 (A/m) | 300 |
| Manageable | True |
| Maximum insulation, DC power connection | 1.2 mm |
| Mounting method | DIN rail (top hat rail) |
| NAT | False |
| Network | Ethernet |
| Nominal position | T4 |
| Number of ports 10/100 Mbps SFP | 4 |
| Number of ports 10/100/1000 Mbps SFP | 2 |
| PoE ports | |
| Port | 6 |
| Power consumption at 24V DC, 40 ˚C | 12.5 W |
| Power consumption, maximum | 14 W |
| Power dissipation | 14 W |
| Power input at 12 - 48V DC, class 2/SELV | 0.5 A |
| Protection type | Alarm not rated |
| RJ45 ports | |
| Screw torque, ground terminal, maximum | 0.4 nm |
| Screw torque, power and alarm terminals | 0.23 nm |
| Selectable start times | T4 |
| SFP slots | 4 FE +2 GE |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 50 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Standard Warranty Duration | 1 year |
| SW Type | Lite |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -40 °C |
| Temperature, surrounding air, maximum | 60 °C |
| Total number of ports | 6 |
| UPC | 885630886893 |
| Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz | 2 g |
| Voltage variation IEC 61000-4-29, interruption on DC power ports | 10 ms |
| Width | 8 cm |
| Wire size, ground connection, stranded copper wire, minimum | 4 mm² |
| Wire strip length, alarm connection | 6.3±0.5 |
| Wire strip length, DC power connection | 6.3±0.5 |
| Wiring category on console ports | 3 |
| Wiring category on DC power and alarm ports | 2 |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1783-BMS4S2SGL |
| Product category | Ethernet Switches |
| Published specifications | 55 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1783-BMS4S2SGL?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1783-BMS4S2SGL?
1783-BMS4S2SGL is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 1783-BMS4S2SGL?
We do not hold a published lifecycle status for 1783-BMS4S2SGL. Allen-Bradley's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 1783-BMS4S2SGL?
Key specifications include Alarm relay at 30V DC: 1 A; Alarm relay at 48V DC: 0.5 A; Approximate weight: 1.22 kg; CIP Sync: False. The full specification table on this page lists every published attribute for this part.
How quickly can 1783-BMS4S2SGL ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products
Allen-Bradley 1783-BMS4S2SGA | Allen-Bradley | US
Allen-Bradley 1783-BMS10CGN | Allen-Bradley | US
Allen-Bradley 1783-MS10T | Allen-Bradley | US
Allen-Bradley 1783-MX08T | Allen-Bradley | US
Allen-Bradley 1783-BMS10CGA | Allen-Bradley | US

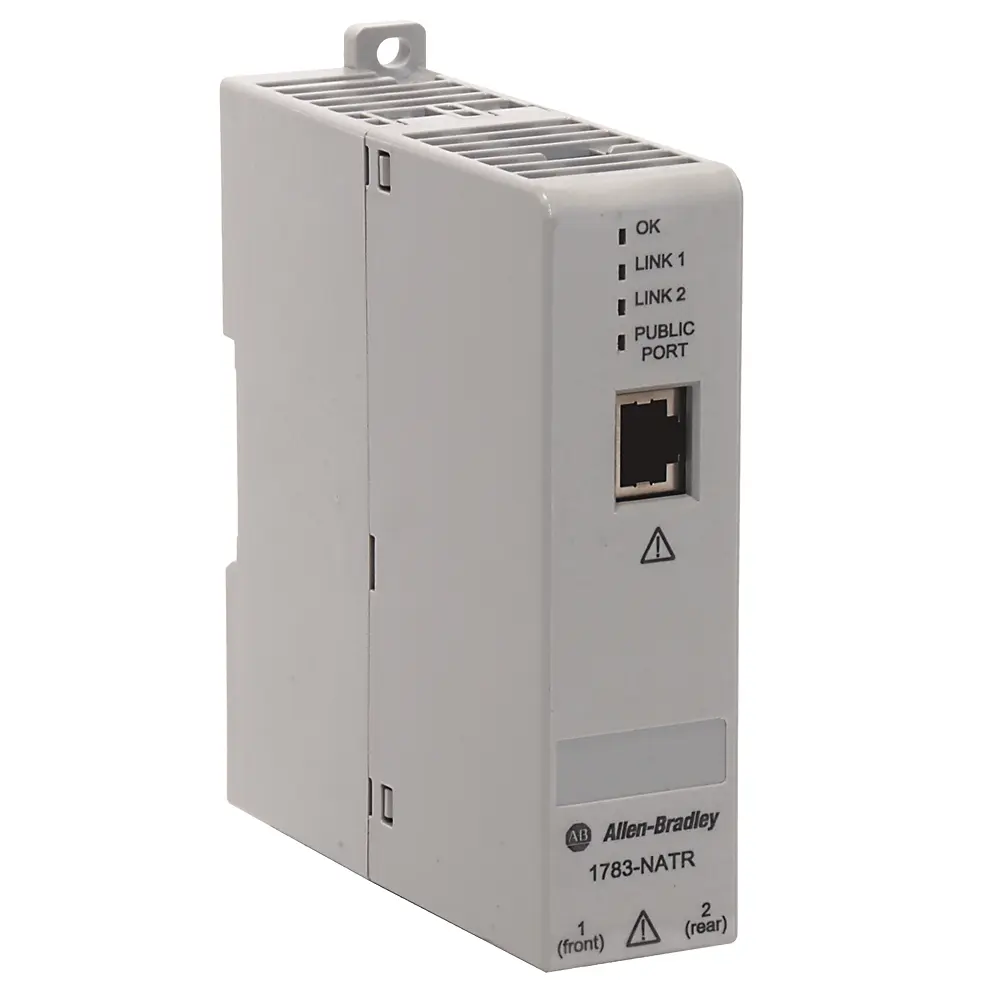

Allen-Bradley 1783-NATR | Allen-Bradley | US
