Allen-Bradley 1756-OX8I
Allen-Bradley 1756-OX8I - Control Relays - Operating Temperature: 0 to 60 °C; Relative Humidity: 5...95% noncondensing; Enclosure Type: None (open-style).
Overview
Allen-Bradley 1756-OX8I — Control Relays. Key specifications: Operating Temperature: 0 to 60 °C · Relative Humidity: 5...95% noncondensing · Enclosure Type: None (open-style) · Switching frequency, max: 1 ops/3 s (0.3 Hz at rated load) · Shock: Operating: 30 G, Non operating: 50 G · Surrounding air temperature, max: 60 °C · Vibration: 2 G @ 10...500 Hz · Number Of Channels: 8. Sourced to exact manufacturer specification and quoted per order by KKM Solutions — request pricing and availability.
Specifications
| Bounce time, mean | 1.2 µs |
|---|---|
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Contact current rating | 1A @ 5...30V DC, 0.5A @ 48V DC, 0.22A @ 125V DC, 1.5A @ 120V AC, 50/60 Hz, 0.75A @ 240V AC, 50/60 Hz |
| Current draw | 100mA @ 5.1V, 100mA @ 24V |
| Digital inputs configurable | False |
| Digital outputs configurable | False |
| EFT/B immunity | ±4kV @ 5kHz on signal ports |
| Emissions | IEC 61000-6-4 |
| Enclosure Type | None (open-style) |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Estimated Lead Time | 5 days |
| Expected contact life | 300 kHz, resistive, 100 kHz, inductive |
| Fusing | Not protected. A fused IFM is recommended to help protect outputs |
| Initial contact resistance, max | 100 mΩ @ 6V @ 1A |
| Isolation | 250 V continuous between outputs |
| Isolation voltage | 250V (continuous), basic insulation type, outputs-to-backplane, and output-to-output |
| Load current per point, min | 10 mA |
| Module keying | Electronic, software configurable |
| Nonoperating temperature | -40 °C |
| North American temperature code | T4A |
| Number Of Channels | 8 |
| Off-state leakage current per point, max | 0 mA |
| Operating Temperature | 0 to 60 °C |
| Operating voltage | 5...125V DC @ 10...240V AC |
| Oscillatory surge withstand | IEEE C37.90.1: 3kV |
| Output delay time | OFF to ON: 13 ms maximum, ON to OFF: 13 ms maximum |
| Outputs | 8 N.O., 8 N.C. individually isolated (two points per group) |
| Pilot duty | C300, R150 |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| Redundancy | False |
| Relative Humidity | 5...95% noncondensing |
| RTB keying | User-defined mechanical |
| Scheduled outputs | Synchronization within 16.7 s max, reference to the coordinated system time |
| Shock | Operating: 30 G, Non operating: 50 G |
| Short-circuit protection, outputs available | False |
| Slot width | 1 |
| Standard Warranty Duration | 1 year |
| States in fault mode per point | Hold last state, On or Off (Off is default) |
| States in program mode per point | Hold last state, On or Off (Off is default) |
| Suitable for safety functions | False |
| Surge transient immunity | ±1 kV line-line (DM) and ±2 kV line-earth (CM) on signal ports |
| Surrounding air temperature, max | 60 °C |
| Switching frequency, max | 1 ops/3 s (0.3 Hz at rated load) |
| Thermal dissipation | 10.57 btu/h |
| Total backplane power | 2.9 W |
| Type of digital output | Relay |
| Type of electric connection | Screw connection |
| Type of voltage (input voltage) | DC |
| UPC | 612598171477 |
| Vibration | 2 G @ 10...500 Hz |
| Voltage type of supply voltage | DC |
| Wire category | Wire category: 1 |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1756-OX8I |
| KKM catalog reference | Allen-Bradley-1756-OX8I |
| Product category | Control Relays |
| Country of origin | Malaysia |
| Published specifications | 52 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 1756-OX8I cost?
1756-OX8I is listed at CA$577.11 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 1756-OX8I?
1756-OX8I is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 1756-OX8I discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 1756-OX8I — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 1756-OX8I?
Key specifications include Bounce time, mean: 1.2 µs; Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz; Contact current rating: 1A @ 5...30V DC, 0.5A @ 48V DC, 0.22A @ 125V DC, 1.5A @ 120V AC, 50/60 Hz, 0.75A @ 240V AC, 50/60 Hz; Current draw: 100mA @ 5.1V, 100mA @ 24V. The full specification table on this page lists every published attribute for this part.
How quickly can 1756-OX8I ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 1756-OA16 — 1756-OA16 | Allen-Bradley | US
- 1756-OB16E — 1756-OB16E | Allen-Bradley | US
- 1756-OB8 — Allen-Bradley 1756-OB8 ControlLogix 8 Point 12/24VDC Digital Output Module New
- 1756-OF8 — 1756-OF8 | Allen-Bradley | US
- 1756-OF8IH — Allen-Bradley 1756-OF8IH ControlLogix, 8 point, Analog Output Module, HART, Isolated, Current, 36…
- 1756-OF8IHK — Allen-Bradley 1756-OF8IHK Output Module, ControlLogix, Analog, 8 Point, HART Protocol,Current, Isolated, Conformal…
- 1756-OF8IK — Allen-Bradley 1756-OF8IK
- 1756-OF8K — Allen-Bradley ControlLogix 8 Pt A/O I or V Module 1756-OF8K
- 1756-OG16 — Allen-Bradley 1756-OG16 ControlLogix 16-point digital output module, 0-5 VDC TTL sinking (low…
- 1756-OH8I — Allen-Bradley 1756-OH8I ControlLogix 8-point isolated relay output module for the 1756 I/O…
- 1756-ON8 — Output Module,Digital,10 30V AC,8 Point at 2 A Output,8 Point,20 Pin
- 1756-OV16E — 1756-OV16E | Allen-Bradley | US
- 1756-OV32E — Allen-Bradley 1756-OV32E
- 1756-OW16 — Allen Bradley AB Allen Bradley 1756-OW16 ControlLogix 16 Pt Relay Output Module
- 1756-OW16I — 1756-OW16I | Allen-Bradley | US
- 1756-OW16IK — Allen Bradley Allen-Bradley 1756-OW16IK
Related Products
ABB TA42DU25-20
Keyence Keyence SL-T11R
Siemens Siemens 6ED1055-4MH08-0BA1

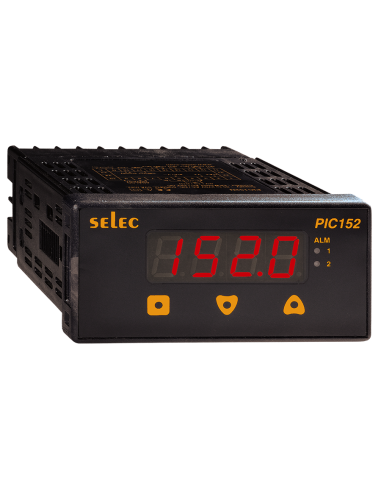

Altech Altech PIC152N-B-4-CU Panel Mount (46x92mm) Advacned Process Indicator
