1606-XLS120E | Allen-Bradley | US
Allen-Bradley 1606-XLS120E - DIN Rail Mount DC Power Supplies - Width: 40 mm; Height: 124 mm; Weight: 620 g.
Overview
In our catalog, the 1606-XLS120E from Allen-Bradley is listed under the DIN Rail Mount DC Power Supplies category. The manufacturer's published data for this part number specifies Width: 40 mm and Height: 124 mm.
The specification set recorded for this part number covers Weight: 620 g; Operating Temperature: -25 °C; Sub Brand: Power Supply XLS; Degree of protection (IP): IP20; Degree of protection (NEMA): Other; Depth: 117 mm; Rail mounting possible: True; Efficiency: 92.7% typical; Input Voltage: 100...240V @ AC, 47...63 Hz; Power Factor: 0.91 typical; Type of electric connection: Spring clA connection; Output Voltage: 24...28V DC. See the Specifications tab on this page for the full technical table.
Specifications
| DC OK relay contact | True |
|---|---|
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Depth | 117 mm |
| Derating | 3 w/°c |
| Direct mounting possible | False |
| Efficiency | 92.7% typical |
| Estimated Lead Time | 5 days |
| External input fuse, min | B-6 A or C-3 A |
| Height | 124 mm |
| Hold-up time | 33 to 59 ms |
| Input inrush current | 9 A/11 A |
| Input inrush current limiter | Active |
| Input Voltage | 100...240V @ AC, 47...63 Hz |
| Lifetime, min | 89 kh (+40 °C) |
| MTBF | 831 kh (40 °C, SN29500) |
| Nominal value output voltage 1 | 24 V |
| Non-operating temperature range | -40 to 85 °C |
| Operating Temperature | -25 °C |
| Operational range | 88...360V DC |
| Output Voltage | 24...28V DC |
| Output voltage stabilized | True |
| Power Factor | 0.91 typical |
| Power losses | 9.4 W typical |
| Power output | 120 W |
| Rail mounting possible | True |
| Rated input current | 1.4A @ 100V AC |
| Rated output current | 5A @ 24V DC |
| Rated supply voltage at DC | 110 V |
| Reserve power (typ. 4 s) | 7.5A @ 24V DC |
| Secondary voltage adjustable | True |
| Special Feature | Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine) |
| Special functions | No special function |
| Stabilized | True |
| Standard Warranty Duration | 1 year |
| Sub Brand | Power Supply XLS |
| Sub group | Performance family |
| Type of electric connection | Spring clA connection |
| UPC | 781180617409 |
| Voltage type of supply voltage | AC/DC |
| Wall mounting possible | True |
| Weight | 620 g |
| Width | 40 mm |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1606-XLS120E |
| Product category | DIN Rail Power Supplies |
| Published specifications | 43 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 1606-XLS120E cost?
1606-XLS120E is available for direct purchase at CA$508.82 (CAD), shown on this page with an Add to Cart button. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 1606-XLS120E?
1606-XLS120E is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 1606-XLS120E discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 1606-XLS120E — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 1606-XLS120E?
Key specifications include DC OK relay contact: True; Degree of protection (IP): IP20; Degree of protection (NEMA): Other; Depth: 117 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 1606-XLS120E ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 1606-XLS120EA — Allen Bradley Allen-Bradley 1606-XLS120EA Power Supply Module
- 1606-XLS180B — Allen-Bradley 1606-XLS180B
- 1606-XLS240-UPS — Allen-Bradley 1606-XLS240-UPS
- 1606-XLS240-UPSC — Allen-Bradley 1606-XLS240-UPSC
- 1606-XLS240-UPSD — Allen-Bradley 1606-XLS240-UPSD Power Module,Bulletin 1606,Specialty Module,UPS,22.5 30VDC Input, 12 and 22.25VDC Output,…
- 1606-XLS240-UPSE — Uninteruptible Power Supply,DC,Extended Runtime,17Ah 130Ah battery
- 1606-XLS240E — 1606-XLS240E | Allen-Bradley | US
- 1606-XLS240E-D — Allen-Bradley 1606-XLS240E-D
- 1606-XLS240EA — Allen-Bradley 1606-XLS240EA
- 1606-XLS240EC — Allen-Bradley 1606-XLS240EC Bulletin 1606 switched-mode power supply delivers 24V DC at 10A…
- 1606-XLS240F — Allen-Bradley 1606-XLS240F Power Supply,Bulletin 1606 XLS Performance,100 240VAC or 110 150VDC Input,…
- 1606-XLS240K — Allen-Bradley 1606-XLS240K
- 1606-XLS480E-3C — Allen-Bradley 1606-XLS480E-3C conformally coated high-performance DIN rail power supply, 480W output, 24V…
- 1606-XLS80E — Allen-Bradley 1606-XLS80E
- 1606-XLSBATASSY1 — Allen-Bradley 1606-XLSBATASSY1 battery assembly provides backup power support for Bulletin 1606-XLS switched-mode…
- 1606-XLSRED80 — Allen-Bradley 1606-XLSRED80
Related Products

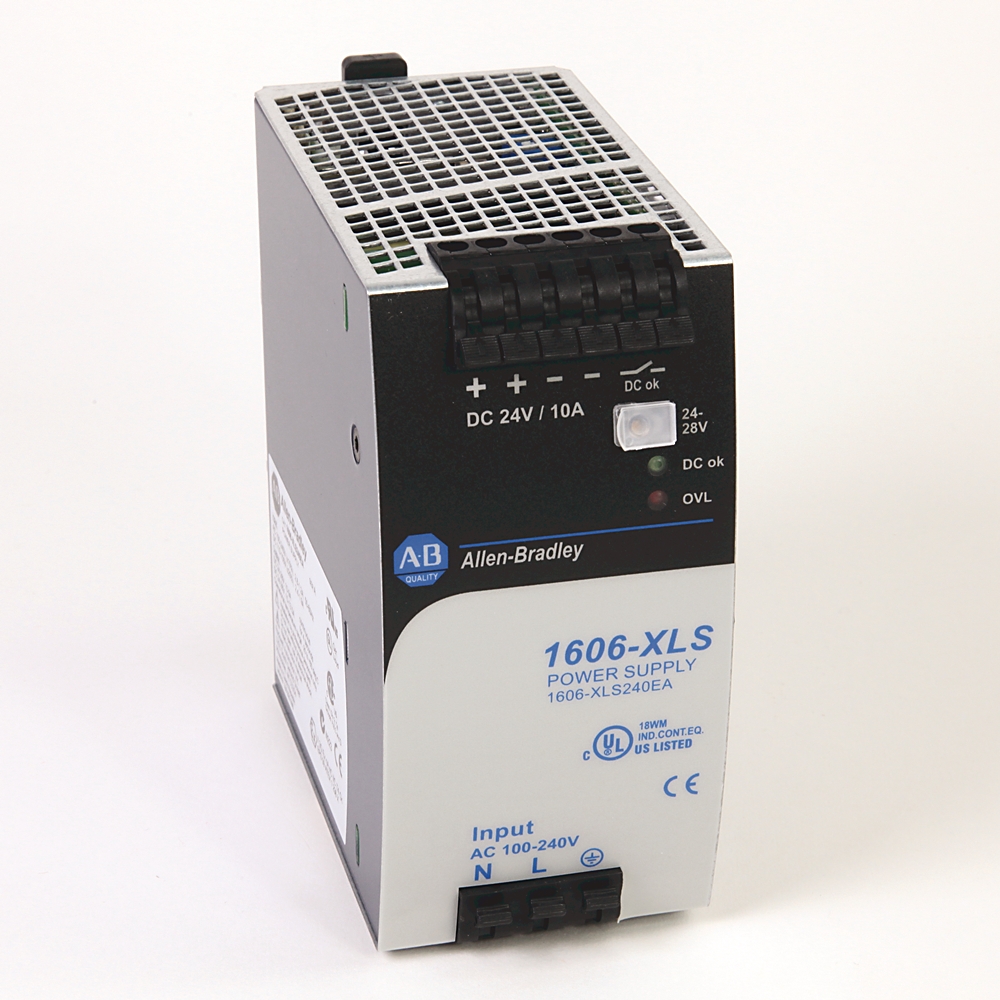

Allen-Bradley 1606-XLS240E | Allen-Bradley | US
