1606-XLE120EE Allen-Bradley XLE 120 W Essential Power Supply New
Allen-Bradley 1606-XLE120EE - Panel Mount & Open Frame Power Supplies - Width: 32 mm; Height: 124 mm; Weight: 500 g.
Overview
Allen-Bradley 1606-XLE120EE — Panel Mount & Open Frame Power Supplies. Specs: Width: 32 mm · Height: 124 mm · Weight: 500 g · Operating Temperature: -10 °C · Storage Temperature: -25 °C · Relative Humidity: 5 to 95 % · Sub Brand: Power Supply XLE · Degree of protection (IP): IP20. Quoted per order by KKM Solutions.
Specifications
| 1st secondary output voltage | 24 V |
|---|---|
| Adjustment range | 24 V |
| Degree of protection (IP) | IP20 |
| Depth | 117 mm |
| Derating | 3 w/°c |
| Direct mounting possible | False |
| Efficiency | 90.2% typical |
| Estimated Lead Time | 5 days |
| External input fuse, min | B-16 A or C-10 A |
| Height | 124 mm |
| Hold-up time | >80 ms @ 120V |
| Input inrush current | 30 A |
| Input inrush current limiter | NTC |
| Lifetime, min | 72 kh (+40 °C) |
| Max. output current 1 | 5 A |
| MTBF | 940 kh (40 °C, SN29500) |
| Nominal value output current 1 | 5 A |
| Nominal value output voltage 1 | 24 V |
| Operating Temperature | -10 °C |
| Operational range | 180…264V AC |
| Output voltage stabilized | True |
| Power Factor | 0.5 typical |
| Power losses | 13.2 W typical |
| Power output | 120 W |
| Power reserves | 20 % |
| Rail mounting possible | True |
| Rated input current | 2.6 A |
| Rated output current | 5A @ 24V |
| Rated supply voltage at AC 50 Hz | 200 V |
| Rated supply voltage at AC 60 Hz | 200 V |
| Relative Humidity | 5 to 95 % |
| Secondary voltage adjustable | True |
| Shock | 30 G, 6ms 20 G, 11ms |
| Special family function | Dynamic 120% power boost under 45C Degree |
| Stabilized | True |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -25 °C |
| Sub Brand | Power Supply XLE |
| Sub group | Essential line |
| Type of electric connection | Screw connection |
| UPC | 662074643882 |
| Vibration | 2 g |
| Voltage type of supply voltage | AC |
| Wall mounting possible | True |
| Weight | 500 g |
| Width | 32 mm |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1606-XLE120EE |
| KKM catalog reference | Allen-Bradley-1606-XLE120EE |
| Product category | Panel Mount & Open Frame Power Supplies |
| Published specifications | 46 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 1606-XLE120EE cost?
1606-XLE120EE is listed at CA$254.70 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 1606-XLE120EE?
1606-XLE120EE is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 1606-XLE120EE?
We do not hold a published lifecycle status for 1606-XLE120EE. Allen-Bradley's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 1606-XLE120EE?
Key specifications include 1st secondary output voltage: 24 V; Adjustment range: 24 V; Degree of protection (IP): IP20; Depth: 117 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 1606-XLE120EE ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products

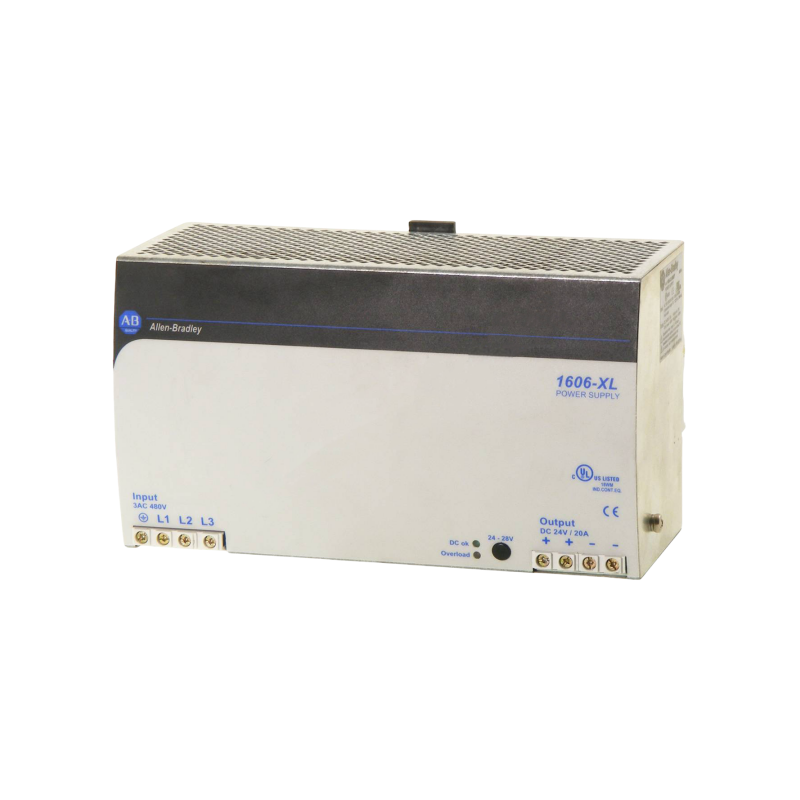

Allen-Bradley Allen-Bradley 1606-XL480E Power Supply XL 480W New Original
