Allen-Bradley RJ45 Ethernet Media 1585J-M8TBJM-99
Allen-Bradley 1585J-M8TBJM-99 - industrial components - Voltage: RJ45 Gbit cordset/patchcord: 600 V V; Operating Temperature: RJ45 cordset/patchcord: -20...60 °C (-4...140 °F); Category: 5E.
The Allen-Bradley 1585J-M8TBJM-99 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Voltage: RJ45 Gbit cordset/patchcord: 600 V V and Operating Temperature: RJ45 cordset/patchcord: -20...60 °C (-4...140 °F).
Weld splatter, sunlight, andoil-resistant, UL CM, CMX, cUL CM, standard TIA 568-B, high flex rated
The specification set recorded for this part number covers Category: 5E; Lifecycle Status: Active; Degree of protection (IP): IP20; Construction: Standard; Data Transfer Rate: 100BASE-TX, 100 Mbit/s; First End Connector: RJ45; First End Description: Straight male; Number of Conductors: 8 conductors (4-pair); Second End Connector: RJ45 Connector; Second End Description: Straight male; AWG-size: 24 AWG; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring. The complete technical table is shown in the Specifications tab on this page.
| AWG-size | 24 AWG |
|---|---|
| Cable bandwidth | 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring |
| Cable outer diameter | 5.6 mm |
| Cable rating | Weld splatter, sunlight, andoil-resistant, UL CM, CMX, cUL CM, standard TIA 568-B, high flex rated |
| Cable type | Teal, unshielded twisted pair, TPE, high-flex, 24 AWG |
| Category | 5E |
| Connector | RJ45 red Gbit cordset/patchcord: RJ45 male to RJ45 male, Cat 5e |
| Construction | Standard |
| Crossover | Standard |
| Data Transfer Rate | 100BASE-TX, 100 Mbit/s |
| Degree of protection (IP) | IP20 |
| First End Connector | RJ45 |
| First End Description | Straight male |
| Length | 99 m |
| Length, approx | 48.94 mm |
| Lifecycle Status | Active |
| Material connector housing, connection 1 | Plastic |
| Number of Conductors | 8 conductors (4-pair) |
| Operating Temperature | RJ45 cordset/patchcord: -20...60 °C (-4...140 °F) |
| Outer diameter, nom | RJ45 cordset/patchcord: 5.84 mm (0.23 in.) ±10% |
| Second End Connector | RJ45 Connector |
| Second End Description | Straight male |
| Secondary end connector | RJ45 connector |
| Special characteristic | Standard |
| Type of connector connection 1 | RJ45 8(8) |
| Voltage | RJ45 Gbit cordset/patchcord: 600 V V |
Frequently Asked Questions
How do I get pricing for 1585J-M8TBJM-99?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1585J-M8TBJM-99?
1585J-M8TBJM-99 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1585J-M8TBJM-99?
Key specifications include AWG-size: 24 AWG; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring; Cable outer diameter: 5.6 mm; Cable rating: Weld splatter, sunlight, andoil-resistant, UL CM, CMX, cUL CM, standard TIA 568-B, high flex rated. The full specification table on this page lists every published attribute for this part.
How quickly can 1585J-M8TBJM-99 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley RJ45 Ethernet Media 1585J-M8TGJM-0M3
Allen-Bradley Allen-Bradley RJ45 Ethernet Media 1585J-M8TBJM-9

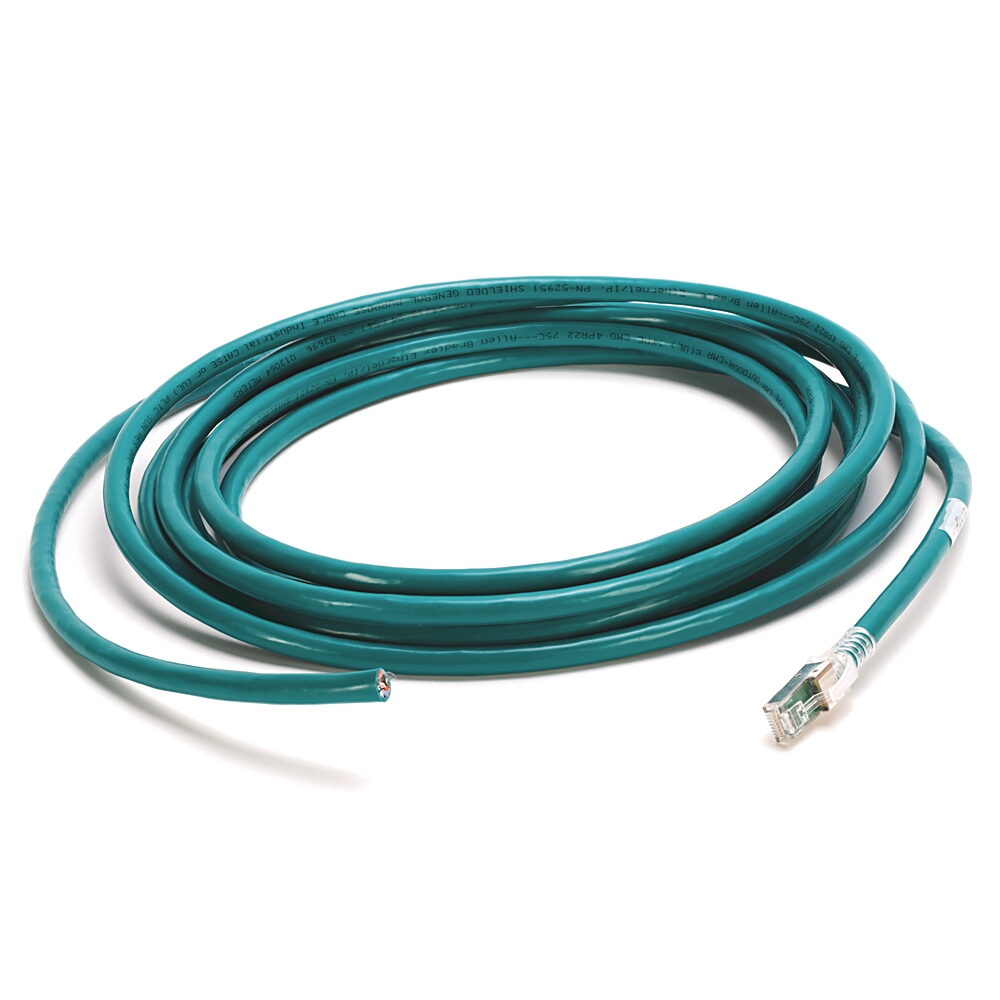

Allen-Bradley Allen-Bradley RJ45 Ethernet Media 1585J-M8TGJM-0M5
Allen-Bradley Allen-Bradley RJ45 Ethernet Media 1585J-M8TB-2

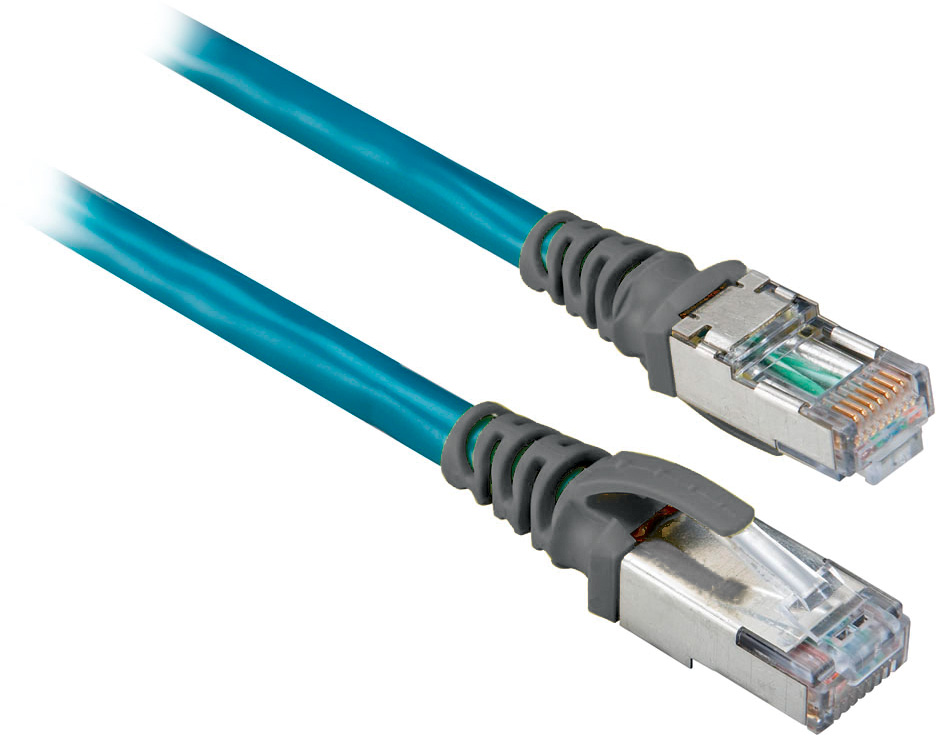

Allen-Bradley Allen-Bradley RJ45 Ethernet Media 1585J-M8TGJM-10
