Allen-Bradley 1585D-M4UBJM-0M6 — Cable Connectors
Allen-Bradley 1585D-M4UBJM-0M6 - Cable Connectors category.
Allen-Bradley 1585D-M4UBJM-0M6 is a Cable Connectors catalog item from Allen-Bradley.
Specification data for this part number is available on request from our order desk.
| AWG-size | 26 AWG |
|---|---|
| Bend radius | 10 x cable diam |
| Cable bandwidth | 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring |
| Cable outer diameter | 5.84 mm |
| Cable rating | C (ETL) US TYPE CMX, TIA 568B |
| Cable type | Teal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG |
| Category | 6 |
| Construction | Standard |
| Crossover | Standard |
| Degree of protection (IP) | IP67 |
| Estimated Lead Time | 43 days |
| First End Description | Straight male |
| Length | 0.6 m ft |
| Length, approx | 47 mm |
| Material | Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass |
| Material connector housing, connection 1 | Plastic |
| Mounting | Front-mount |
| Number of Conductors | 4 conductors (2-pair) |
| Operating Temperature | '-40 to 75 °C |
| Second End Description | Straight male |
| Secondary end connector | RJ45 connector |
| Special characteristic | Standard |
| Standard Warranty Duration | 1 year |
| Type of connector connection 1 | M12 |
| UPC | 885630037776 |
| Voltage | 300 V V |
Frequently Asked Questions
How much does 1585D-M4UBJM-0M6 cost?
The estimated price shown on this page (CA$802.94 CAD) is a reference figure only and can change. Send the quote form on this page with your quantity, or email [email protected], for current pricing and stock availability.
Who manufactures the 1585D-M4UBJM-0M6?
1585D-M4UBJM-0M6 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1585D-M4UBJM-0M6?
Key specifications include AWG-size: 26 AWG; Bend radius: 10 x cable diam; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring; Cable outer diameter: 5.84 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 1585D-M4UBJM-0M6 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bridgeport Bridgeport 686-XM Large Size Strap Connector, 2 in Trade,…
Harger Harger 205 4-Bolt Cable Connector, Copper
Panduit Panduit FADSCZAQ-L Duplex Fiber Optic Adapter, SC Duplex Connector,…
Allen-Bradley Allen-Bradley 2090-CPBM7DF-14AF01 Cable,Continuous Flexible,Power and Brake,600V,Motor End SpeedTec DIN…

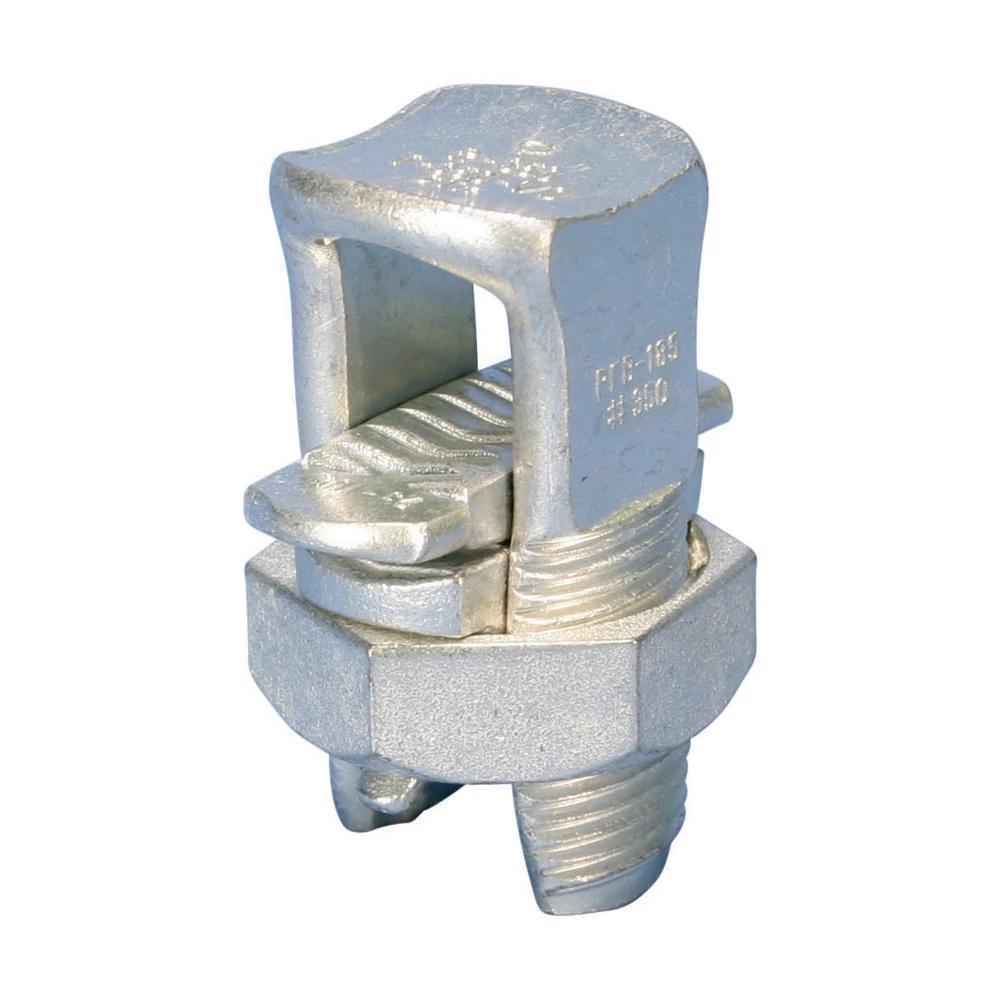

nVent nVent ERICO ESBP350 Dual Rated Split Bolt Connector, 3/0…
