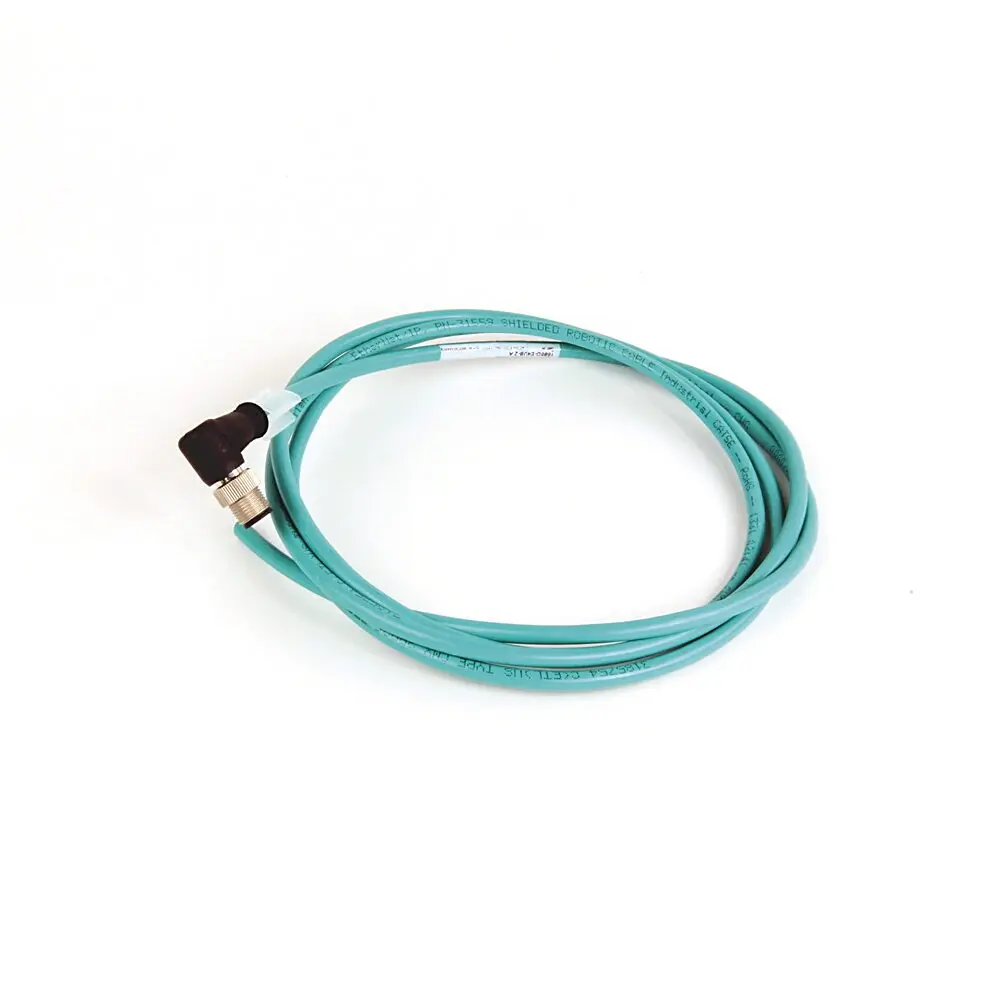

Allen-Bradley Ethernet Media,Micro D Code, QD Style,Standard,Right Angle Male,4 conductors (2 pair),Teal Shld 26AWG Flex LSZH PUR,100BASE TX, 100 Mbit/s,No connector ,flying leads,No Connector,standard,Build To Order Cable Lengths,20.00 EA ,Standard

Allen-Bradley 1585D-E4UB-20 — 1585 EtherNet Media

Brand: Allen-Bradley SKU: 1585D-E4UB-20 Mfr Part #: 1585D-E4UB-20
Ships Same Day* Worldwide Shipping

Allen-Bradley 1585D-E4UB-20 - 1585 EtherNet Media - Length: 20 m ft; Mounting: Front-mount; Voltage: 300 V V.

Sourced to exact specCross-checked against manufacturer part data
Fast quote turnaroundOur order desk replies within 1 business day
Worldwide shippingWe ship to your site, warehouse, or freight forwarder

This listing covers the Allen-Bradley 1585D-E4UB-20, a part number in the 1585 EtherNet Media category. The manufacturer's published data for this part number specifies Length: 20 m ft and Mounting: Front-mount.

Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass

Published specifications for this part include Voltage: 300 V V; Operating Temperature: '-40 to 75 °C; Category: 6; Degree of protection (IP): IP67; First End Connector: Micro D-Code, QD Style; First End Description: Right angle male, key ON top, cable pointing rightward; Number of Conductors: 4 conductors (2-pair); Second End Description: No Connector; AWG-size: 26 AWG; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring; Cable outer diameter: 5.84 mm; Cable rating: C (ETL) US TYPE CMX, TIA 568B. See the Specifications tab on this page for the full technical table.

AWG-size 26 AWG
Bend radius 10 x cable diam
Cable bandwidth 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring
Cable outer diameter 5.84 mm
Cable rating C (ETL) US TYPE CMX, TIA 568B
Cable type Teal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG
Category 6
Crossover Standard
Degree of protection (IP) IP67
Estimated Lead Time 43 days
First End Connector Micro D-Code, QD Style
First End Description Right angle male, key ON top, cable pointing rightward
Length 20 m ft
Material Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass
Material connector housing, connection 1 Plastic
Mounting Front-mount
Number of Conductors 4 conductors (2-pair)
Operating Temperature '-40 to 75 °C
Second End Description No Connector
Secondary end connector No connector, flying leads
Special characteristic Standard
Standard Warranty Duration 1 year
Type of connector connection 1 M12
UPC 887172407741
Voltage 300 V V

Request a quote for this part

Email [email protected] or call (825) 454-5367 for pricing and availability.

Quotes back within 1 business day — usually the same day. Need it faster? Call (825) 454-5367, answered 24/7.

Frequently Asked Questions

How do I get pricing for 1585D-E4UB-20?

KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.

Who manufactures the 1585D-E4UB-20?

1585D-E4UB-20 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.

Is 1585D-E4UB-20 discontinued, and can I still get one?

KKM Solutions does not publish a manufacturer lifecycle status for 1585D-E4UB-20 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.

What are the key specifications of 1585D-E4UB-20?

Key specifications include AWG-size: 26 AWG; Bend radius: 10 x cable diam; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring; Cable outer diameter: 5.84 mm. The full specification table on this page lists every published attribute for this part.

How quickly can 1585D-E4UB-20 ship?

In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
