Smart Motor Controller,361A,600V, 3 Phase, 50/60Hz,100...240V AC,Open
Allen-Bradley 150-C361NCD - industrial components - Width: 290 mm (11.42 in) mm; Height: 600 mm (23.62 in) mm; Enclosure: Open type.
The Allen-Bradley 150-C361NCD is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 290 mm (11.42 in) mm and Height: 600 mm (23.62 in) mm.
69kA @ 600V, maximum current 600 A time delay Class J or Class L fuse for line connected motors
Key manufacturer data on file for this item includes Enclosure: Open type; Function: Single direction; Weight: 45.8 kg; Operating Temperature: Open: -5 to 50 °C (23 to 122 °F); Sub Brand: SMC-3; Degree of protection (IP): IP2X; Depth: 298 mm (11.73 in); Rated control supply voltage at AC 50 Hz: 100 V; Rated control supply voltage at AC 60 Hz: 100 V; Voltage type for actuating: AC/DC; Altitude: 2000 m; Number of poles: Equipment is designed for 3-phase only for power circuit. The complete technical table is shown in the Specifications tab on this page.
| Altitude | 2000 m |
|---|---|
| Break | TB-97, -98 (OVLD/Fault): 72VA for auxiliary contacts |
| Cable size | 0.2...2.5 mm2 (24...14 AWG) for control terminals |
| Controller type | SMC-3 |
| Conventional thermal current (Ith) | TB-97, -98 (OVLD/Fault): 1 A for auxiliary contacts |
| Degree of protection (IP) | IP2X |
| Delta connected motor current | 208...625A @ 500/575V AC, 3-phase |
| Delta connected motor power, max | 450 kW @ 500V AC @ 50Hz, 3-phase |
| Depth | 298 mm (11.73 in) |
| Dielectric withstand | 2500V AC per IEC for power circuit |
| DV/DT protection | 1000V/µs for power circuit |
| EMC emission levels | Radiated emission: Class A per IEC |
| EMC immunity levels | Surge transient: per EN/IEC 60947-4-2 per IEC |
| Enclosure | Open type |
| Estimated Lead Time | 31 days |
| Fan power rating | 60 VA |
| Function | Single direction |
| Height | 600 mm (23.62 in) mm |
| High capacity available fault current, max | 69kA @ 600V, maximum current 600 A time delay Class J or Class L fuse for line connected motors |
| Humidity | 5...95% noncondensing |
| Input OFF-state current | <10 mA, <12 mA @ input off-state voltage (IN1, IN2) for control circuit |
| Input OFF-state voltage (IN1, IN2), max | 40V AC @ 17V DC/12V AC for control circuit |
| Input ON-state current (IN1, IN2) | 9.8mA @ 120V AC/19.6mA @ 240V AC for control circuit, 7.3mA @ 24V AC/DC for control circuit |
| Input ON-state voltage, during start (IN1, IN2) | 85V AC @ 19.2V DC/19.2V AC minimum for control circuit |
| Insulation voltage | Rated 600V AC per UL/CSA/NEMA for power circuit |
| Integrated motor overload protection | True |
| Internal bypass | True |
| Line connected motor current | 120...361A @ 500/575V AC, 3-phase |
| Line connected motor power, max | 200...350Hp @ 575V AC, 60 Hz, 3-phase |
| Make | TB-97, -98 (OVLD/Fault): 432VA for auxiliary contacts |
| Mounting hole size | 11.5 mm |
| Number of contacts | TB-97, -98 (OVLD/Fault): 1 for auxiliary contacts |
| Number of poles | Equipment is designed for 3-phase only for power circuit |
| Operating frequency | 50/60 Hz per UL/CSA/NEMA for power circuit |
| Operating Temperature | Open: -5 to 50 °C (23 to 122 °F) |
| Overload Current | 120 A |
| Overvoltage category | III per IEC for side mount auxiliary contacts |
| Pollution degree | 2 |
| Power pole holes | Two M12 x 1.75 diam holes per power pole for load power terminals |
| Rated control power during start with fan | 200mA @ 120V AC/120mA @ 240V AC, 600mA @ 24V AC/DC |
| Rated control supply voltage at AC 50 Hz | 100 V |
| Rated control supply voltage at AC 60 Hz | 100 V |
| Rated impulse voltage | 6 kV for power circuit |
| Rated operating voltage Ue | 200 V |
| Rated operational current, max | TB-97, -98 (OVLD/Fault): 0.6A @ 120V AC and 0.3A @ 240V AC for auxiliary contacts |
| Rated operational voltage | 250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts |
| Rated surrounding temperature range without derating | -5 °C |
| Repetitive peak voltage | 1600V per UL/CSA/NEMA for power circuit |
| Selectable current limit | 150%, 250%, 350%, and 450% of full load current |
| Selectable initial torque | 15%, 25%, 35%, and 65% of locked rotor torque |
| Selectable kick start - 450% FLA | 0, 0.5, 1.0, or 1.5 s |
| Selectable overload trip class | Trip Class 10, 15, or 20 |
| Selectable soft stop | Off, 100%, 200%, or 300% of the start time setting when wired |
| Selectable start times | 2, 5, 10, 15, 20, 25, or 30 s |
| Shock | Opsal: 15 G |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Short-circuit protection device list | Non-time delay Thermal magnetic circuit breaker High capacity time delay class CC/J/L |
| Standard available fault current, max | 30 kA @ maximum standard fuse 1600 A for delta device opsal current rating |
| Standard controller feature | Soft stop |
| Standard Warranty Duration | 1 year |
| Steady state heat dissipation | 194 W |
| Storage and transportation temperature | -25 °C |
| Sub Brand | SMC-3 |
| Tightening torque | 0.45...0.9 Nm (4.0...8.0 in-lb) for control terminals |
| Type of contacts | TB-97, -98 (OVLD/Fault): Normally Open (N.O.) for auxiliary contacts |
| Type of control circuit | TB-97, -98 (OVLD/Fault): Electromagnetic relay for auxiliary contacts |
| Type of current | TB-97, -98 (OVLD/Fault): AC/DC for auxiliary contacts |
| UPC | 662074693009 |
| Utilization category | TB-23, -24 (normal/up-to-speed), TB-33, -34 (normal/up-to-speed): C300/R150 per UL/CSA/NEMA for Side mount auxiliary contacts |
| Vibration | Opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement |
| Voltage type for actuating | AC/DC |
| Weight | 45.8 kg |
| Width | 290 mm (11.42 in) mm |
| With display | False |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 150-C361NCD?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 150-C361NCD?
150-C361NCD is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 150-C361NCD discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 150-C361NCD — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 150-C361NCD?
Key specifications include Altitude: 2000 m; Break: TB-97, -98 (OVLD/Fault): 72VA for auxiliary contacts; Cable size: 0.2...2.5 mm2 (24...14 AWG) for control terminals; Controller type: SMC-3. The full specification table on this page lists every published attribute for this part.
How quickly can 150-C361NCD ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 150-C361NBR — Allen-Bradley 150-C361NBR
Related Products

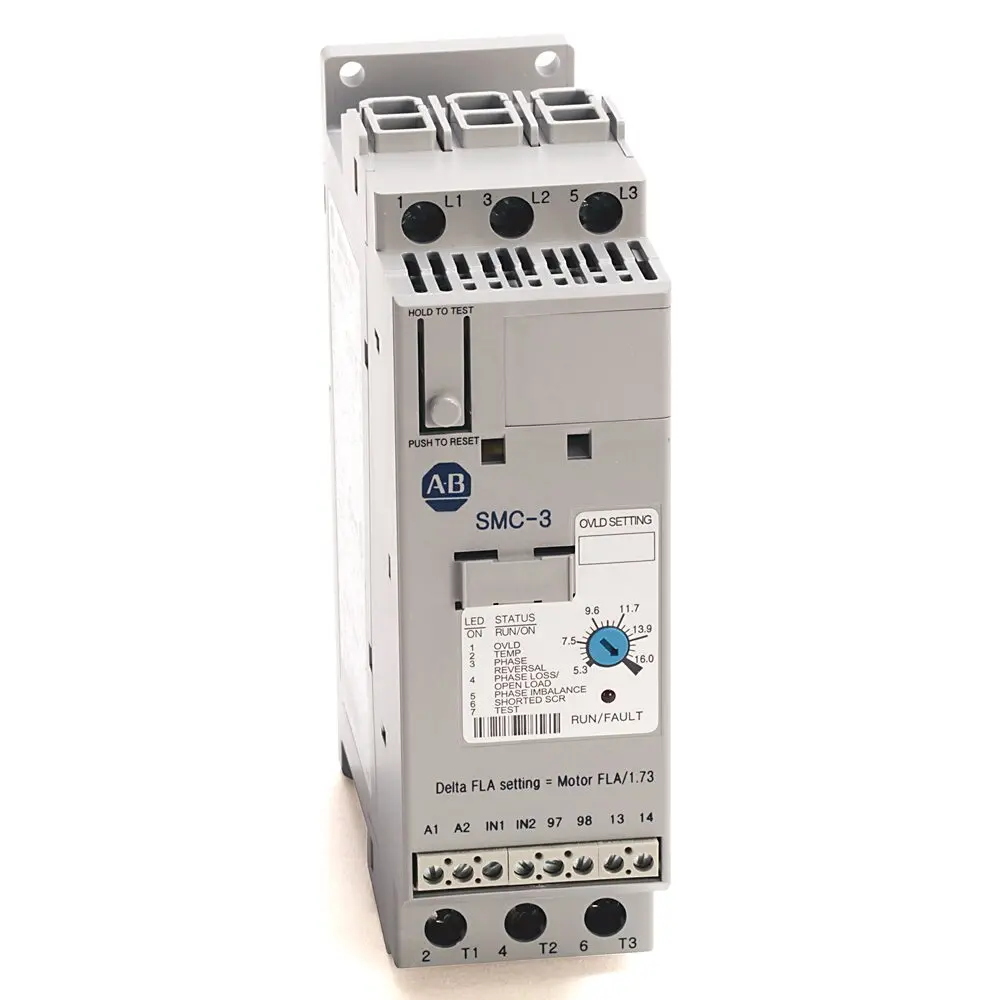

Allen-Bradley Solid State Motor Controller, 27 A,KONE
