Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-BF3R2-414
Allen-Bradley 1494G-BF3R2-414 - industrial components - Width: 10.5 in mm; Height: 13.31 in mm; Relative Humidity: 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1.
This listing covers the Allen-Bradley 1494G-BF3R2-414, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 10.5 in mm and Height: 13.31 in mm.
Switches, mechanisms and accessory kits: zinc-plated steel, RoHS compliant finish
The specification set recorded for this part number covers Relative Humidity: 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1; Ambient temperature: Storage: -40...65 °C (-40...149 °F); Lifecycle Status: Active; Enclosure Type: NEMA 3R/4/12 painted; Degree of protection (NEMA): 4; Depth: 8.25 in; Factory installed models: Fuse cover for disconnect; Hp rating: 7.5Hp @ 230V/60 Hz per UL/CSA/NEMA; Type of electrical connection of main circuit: Screw connection; Altitude: 2000 m per IEC 947-1; Auxiliary contact electrical ratings: AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC; Conductor size: #14...8 AWG (1.5...10 mm2). The complete technical table is shown in the Specifications tab on this page.
| Altitude | 2000 m per IEC 947-1 |
|---|---|
| Ambient temperature | Storage: -40...65 °C (-40...149 °F) |
| Auxiliary contact electrical ratings | AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC |
| Conductor size | #14...8 AWG (1.5...10 mm2) |
| Continuous current rating (Ithe) | 30A @ 600V AC per UL/CSA/NEMA |
| Degree of protection (NEMA) | 4 |
| Depth | 8.25 in |
| Device construction | Complete device in housing |
| Dielectric strength | 2200V @ 1min |
| Electrical interlock ratings | Standard contact 2 N.O. and 2 N.C.: 20A @ 480V AC, 0.25A @ 250V DC per NEMA/EEMAC |
| Electrical life cycle | 6000 ops at rated current |
| Enclosure Type | NEMA 3R/4/12 painted |
| Factory installed models | Fuse cover for disconnect |
| Fuse clips | Class R fuse clips |
| Fuse voltage | 240V AC |
| Height | 13.31 in mm |
| Hp rating | 7.5Hp @ 230V/60 Hz per UL/CSA/NEMA |
| KW rating (AC23), max | IEC applications: 5.5 kW @ 220V/50 Hz |
| Lifecycle Status | Active |
| Material | Switches, mechanisms and accessory kits: zinc-plated steel, RoHS compliant finish |
| Max. rated operation voltage Ue AC | 600 V |
| Mechanical life operations | 10000 |
| Motor drive optional | false |
| Number of poles | 3 |
| Rated insulation voltage (Ui) | 600V per UL / 660V per IEC |
| Rated permanent current Iu | 30 A |
| Recommended torque | Lug to terminal: 20 in-lb |
| Relative Humidity | 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1 |
| Shipping weight, approx | 60 lb |
| Short circuit withstand capability | 200000A @ 600V AC: with Class J or Class R fuses |
| Switching frequency, max | 300 ops/m |
| Terminals | #10-32 screw and self-lifting pressure plate |
| Type of control element | Long turning handle |
| Type of electrical connection of main circuit | Screw connection |
| Version as main switch | true |
| Voltage release optional | false |
| Width | 10.5 in mm |
Frequently Asked Questions
How do I get pricing for 1494G-BF3R2-414?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1494G-BF3R2-414?
1494G-BF3R2-414 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1494G-BF3R2-414?
Key specifications include Altitude: 2000 m per IEC 947-1; Ambient temperature: Storage: -40...65 °C (-40...149 °F); Auxiliary contact electrical ratings: AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC; Conductor size: #14...8 AWG (1.5...10 mm2). The full specification table on this page lists every published attribute for this part.
How quickly can 1494G-BF3R2-414 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

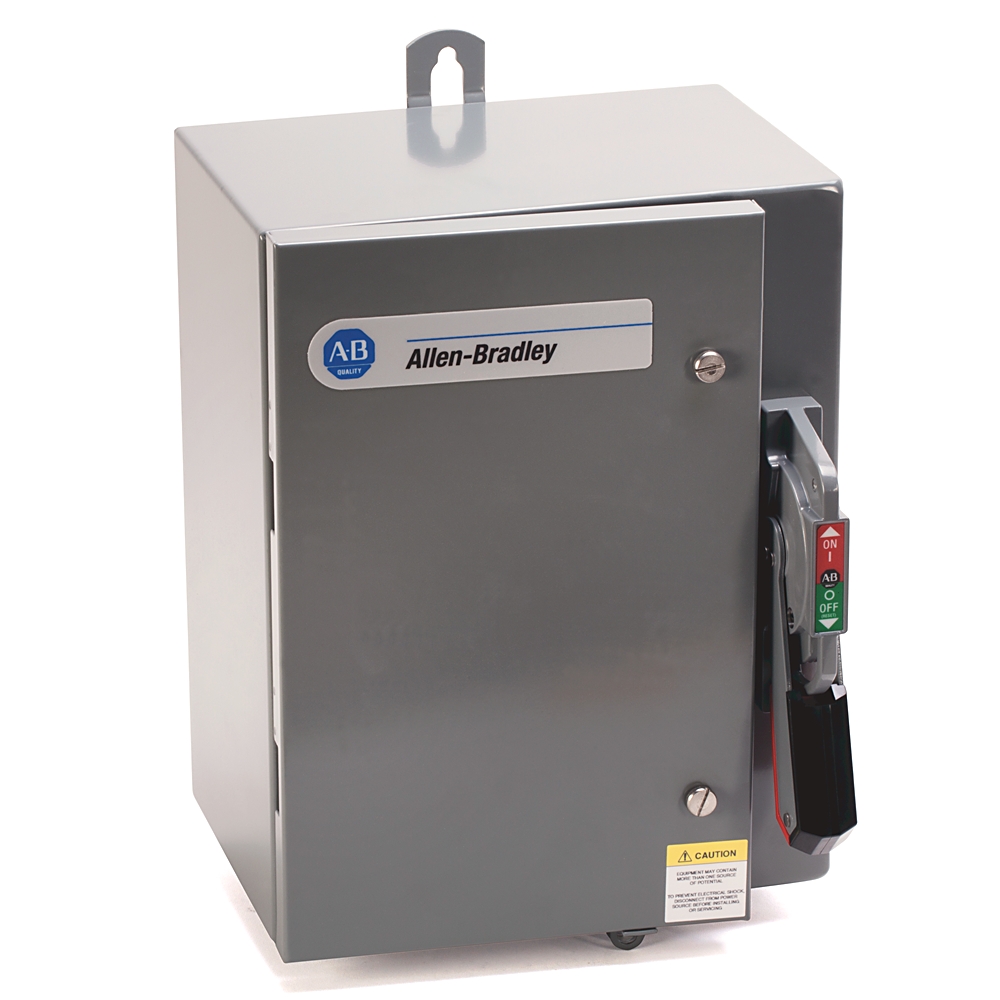

Allen-Bradley Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-BF3N-99-203W
Allen-Bradley Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-BF3R2
Allen-Bradley Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-BF3N-988
Allen-Bradley Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-BF3R6-412-414

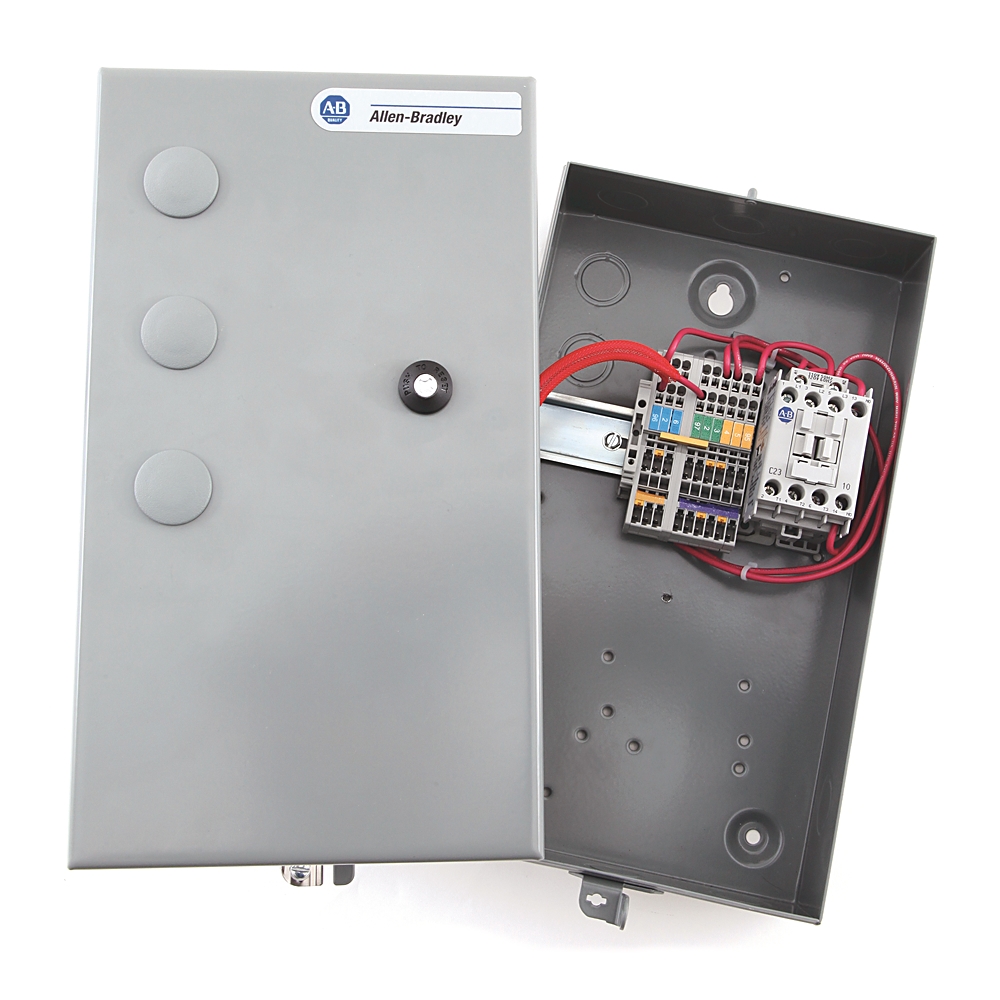

Allen-Bradley Allen-Bradley IEC Enclosed Starter 109-C30AC-A2J-4R-6P
