Allen-Bradley 200 A Flange Mtd Cable Switch 1494C-DJ622-A5-B1-D-F-G
Allen-Bradley 1494C-DJ622-A5-B1-D-F-G - industrial components - Material: Switches, mechanisms and accessory kits: zinc-plated steel, RoHS compliant finish; Relative Humidity: 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1; Degree of protection: Operating handles: Type 1, 3R, 4, 12.
The 1494C-DJ622-A5-B1-D-F-G from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Material: Switches, mechanisms and accessory kits: zinc-plated steel, RoHS compliant finish and Relative Humidity: 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1.
The specification set recorded for this part number covers Degree of protection: Operating handles: Type 1, 3R, 4, 12; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Hp rating: 60Hp @ 230V AC, 60 Hz per UL/CSA/NEMA; Type of electrical connection of main circuit: Screw connection; Altitude: 2000 m per IEC 947-1; Conductor size: #6...4 AWG (16...95 mm²); Device construction: Built-in device fixed built-in technique; Dielectric strength: 2200V @ 1min; Electrical life cycle: 6000 ops at rated current; KW rating (AC23), max: 90 kW @ 440V AC @ 50Hz per IEC. The complete technical table is shown in the Specifications tab on this page.
| Altitude | 2000 m per IEC 947-1 |
|---|---|
| Ambient enclosed temperature | -20 °C |
| Ambient open temperature | -20 °C |
| Ambient storage temperature | -40 °C |
| Build America, Buy America | No |
| Cable mechanism | Cable operated mechanism 5 ft |
| Colour control element | Black |
| Conductor size | #6...4 AWG (16...95 mm²) |
| Continuous current (Ithe) rating | 200A @ 600V AC per UL/CSA/NEMA |
| Degree of protection | Operating handles: Type 1, 3R, 4, 12 |
| Device construction | Built-in device fixed built-in technique |
| Dielectric strength | 2200V @ 1min |
| Disconnect mechanism | Right-hand mechanism |
| Electrical life cycle | 6000 ops at rated current |
| Factory option | Painted metal handle |
| Fuse/fuse clip type | Type J fuse clips |
| Hp rating | 60Hp @ 230V AC, 60 Hz per UL/CSA/NEMA |
| Insulation voltage | Rated 660V per IEC |
| KW rating (AC23), max | 90 kW @ 440V AC @ 50Hz per IEC |
| Lifecycle Status | Discontinued |
| Low level auxiliary 1 NO or 1 NC contact rating | C300, R150 per NEMA/EEMAC |
| Material | Switches, mechanisms and accessory kits: zinc-plated steel, RoHS compliant finish |
| Max. rated operation voltage Ue AC | 600 V |
| Mechanical life operations | 8000 (typical) |
| Motor drive integrated | false |
| Motor drive optional | false |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of switches | 1 |
| Rated permanent current Iu | 200 A |
| Recommended torque | Lug to terminal: 175 in-lb |
| Relative Humidity | 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1 |
| Repair Options Available | No |
| Short circuit withstand capability | 200000A @ 600V AC: with Class J or Class R fuses |
| Standard auxiliary 1 NO or 1 NC contact rating | AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC |
| Standard electrical interlock 1 NO and 1 NC contact rating | 20A @ 480V AC, 0.25A @ 250V DC per NEMA/EEMAC |
| Standard electrical interlock 2 NO and 2 NC contact rating | 20A @ 480V AC, 0.25A @ 250V DC per NEMA/EEMAC |
| Suitable for distribution board installation | true |
| Suitable for floor mounting | false |
| Suitable for front mounting 4-hole | false |
| Suitable for front mounting centre | false |
| Suitable for intermediate mounting | true |
| Switch and fuse rating (fusing) | 600V 200 A switch, 200 A clips |
| Switch body material | Glass-filled thermoset plastic |
| Switching frequency, max | 300 ops/m |
| Terminals | 3/8 in-24 screw-lug, copper |
| Type of control element | Long turning handle |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | false |
| Version as main switch | true |
| Version as maintenance-/service switch | true |
| Version as reversing switch | false |
| Version as safety switch | false |
| Voltage release optional | false |
Frequently Asked Questions
How do I get pricing for 1494C-DJ622-A5-B1-D-F-G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1494C-DJ622-A5-B1-D-F-G?
1494C-DJ622-A5-B1-D-F-G is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1494C-DJ622-A5-B1-D-F-G?
Key specifications include Altitude: 2000 m per IEC 947-1; Ambient enclosed temperature: -20 °C; Ambient open temperature: -20 °C; Ambient storage temperature: -40 °C. The full specification table on this page lists every published attribute for this part.
How quickly can 1494C-DJ622-A5-B1-D-F-G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-CK3J6-989
Allen-Bradley Allen-Bradley 200 A Flange Mtd Cable Switch 1494C-DJ622-A5-B1-D-E-F

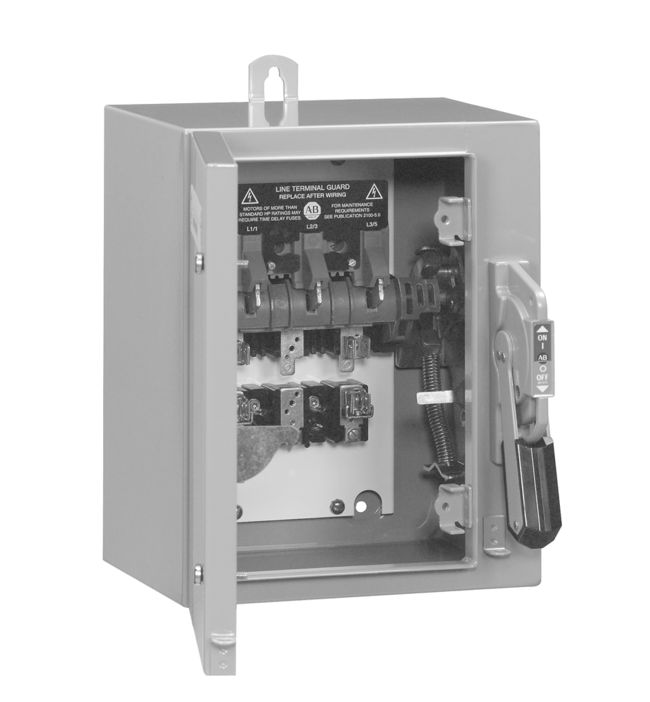

Allen-Bradley Allen-Bradley NEMA 1494G Enclosed Disconnect 1494G-CK3N-1S-98
