Allen-Bradley 140G-G6C3-C80-AJ — Molded Case Circuit Breakers MCCB
Allen-Bradley 140G-G6C3-C80-AJ - Molded Case Circuit Breakers MCCB - Width: 76.2 mm mm; Height: 130 mm mm; Weight: 2.42 lb.
The Allen-Bradley 140G-G6C3-C80-AJ is part of the Molded Case Circuit Breakers MCCB range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 76.2 mm mm and Height: 130 mm mm.
IEC 60947-2: 75% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only
Key manufacturer data on file for this item includes Weight: 2.42 lb; Storage Temperature: -40 °F; Degree of protection (IP): IP40; Depth: 70 mm; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: 8000 @ 415V AC; Mechanical life operations: 25000 /h; Motor drive optional: True; Number of poles: 3; Rated permanent current Iu: 80 A; Type of control element: Toggle. See the Specifications tab on this page for the full technical table.
| Ambient temperature without derating | 104 °F |
|---|---|
| Complete device with protection unit | True |
| Construction type | T/M-fixed thermal/fixed magnetic TMF |
| Degree of protection (IP) | IP40 |
| Depth | 70 mm |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | True |
| Electrical life cycle | 8000 @ 415V AC |
| Estimated Lead Time | 84 days |
| Factory option | 1 NO/NC auxiliary + 1 alarm 24V AC/DC |
| Frame Size | 125 A |
| Height | 130 mm mm |
| Insulation voltage (Ui) | Rated 800V per IEC |
| Integrated earth fault protection | False |
| Interrupting rating | 65kA @ 480V, 50/60 Hz per NEMA, UL, CSA |
| Magnetic trip current (Im) | 800 A |
| Mechanical life operations | 25000 /h |
| Motor drive integrated | False |
| Motor drive optional | True |
| Number of auxiliary contacts as change-over contact | 1 |
| Number of poles | 3 |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 m (9840 ft) altitude |
| Position of connection for main current circuit | Front side |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated permanent current Iu | 80 A |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 75% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 70kA @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated uninterrupted current (Iu) | 98% of current rating @ 3000 m (9840 ft) altitude |
| Shock | Peak acceleration: 150 m/s² peak, pulse duration 11 ms |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °F |
| Suitable for DIN rail (top hat rail) mounting | False |
| Thermal trip current (Ir = In (fixed)) | 80 A |
| Thermal trip rating, max | 80 A @ ambient temperature 40 °C |
| Type of control element | Toggle |
| Type of electrical connection of main circuit | Screw connection |
| UPC | 887172394607 |
| Vibration | 2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G |
| Votlage for reverse-fed circuit breaker, max | 690V AC per IEC |
| Watt loss | Thermal magnetic type: 14.4 W |
| Weight | 2.42 lb |
| Width | 76.2 mm mm |
| Wire temperature rating | Cu 75 °C |
| With integrated under voltage release | False |
| With switched-off indicator | False |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 140G-G6C3-C80-AJ?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 140G-G6C3-C80-AJ?
140G-G6C3-C80-AJ is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 140G-G6C3-C80-AJ discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 140G-G6C3-C80-AJ — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 140G-G6C3-C80-AJ?
Key specifications include Ambient temperature without derating: 104 °F; Complete device with protection unit: True; Construction type: T/M-fixed thermal/fixed magnetic TMF; Degree of protection (IP): IP40. The full specification table on this page lists every published attribute for this part.
How quickly can 140G-G6C3-C80-AJ ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 140G-G6C3-C15 — Allen-Bradley 140G 125A Frame Molded Case Ckt-Bkr 140G-G6C3-C15
- 140G-G6C3-C25 — 140G-G6C3-C25 | Allen-Bradley | US
- 140G-G6C3-C60-KA — Allen-Bradley 140G-G6C3-C60-KA Bulletin 140G molded case circuit breaker, 60A thermal-magnetic trip, 3-pole,…
- 140G-G6C3-C63-AJ — Molded Case Ckt-Bkr,125A G Frame,65 kA at 480V,T/M - Fixed Thrm /…
- 140G-G6C3-C63-KA — Molded Case Ckt-Bkr,125A G Frame,65 kA at 480V,T/M - Fixed Thrm /…
- 140G-G6C3-C70 — Allen-Bradley 140G-G6C3-C70 Bulletin 140G assembled molded case circuit breaker (MCCB) with 70A…
- 140G-G6C3-C70-AA — Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M Fixed Thrm Fixed…
- 140G-G6C3-C70-KA — Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M Fixed Thrm /…
- 140G-G6C3-C80 — Allen-Bradley 140G-G6C3-C80 Bulletin 140G molded case circuit breaker, 80A rated current, 3-pole,…

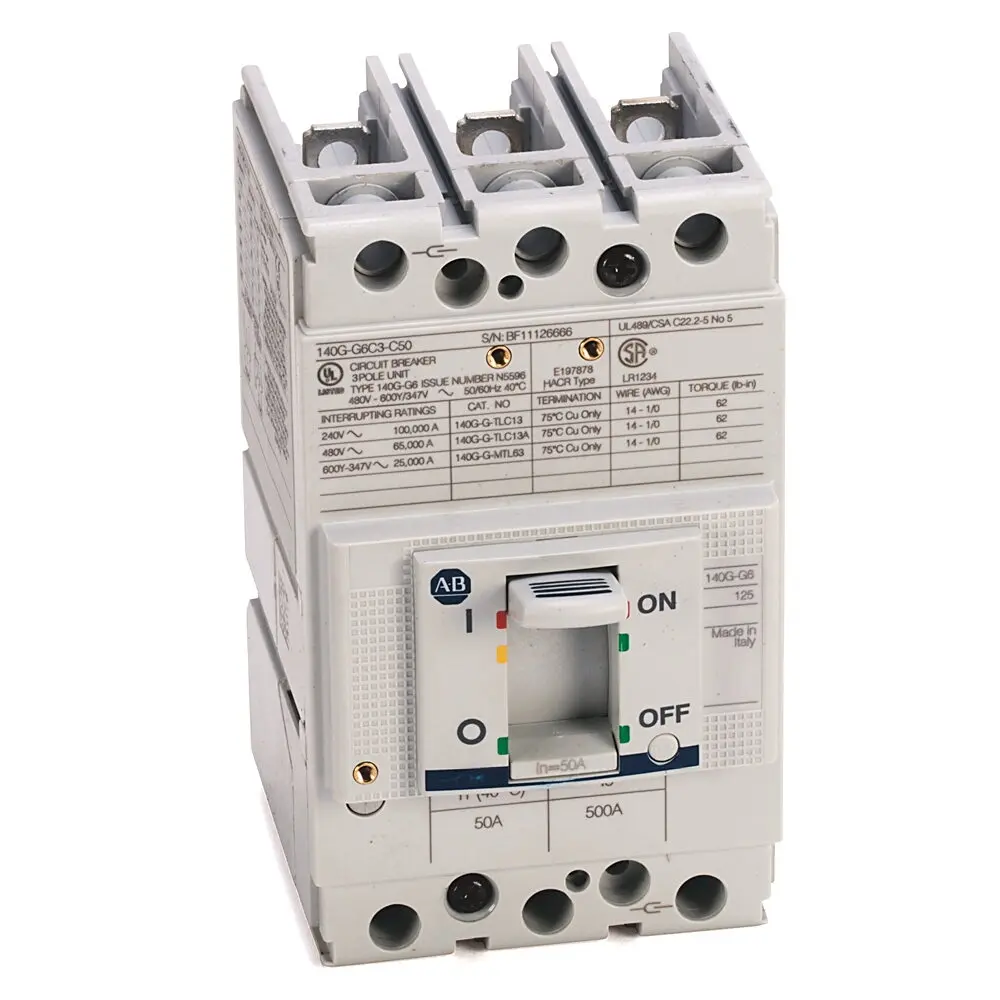

- 140G-G6C3-C80-KA — Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M Fixed Thrm Fixed…
- 140G-G6C3-C80-KJ — Allen-Bradley 140G-G6C3-C80-KJ Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M Fixed…
- 140G-G6C3-C80-KJ-MT — Allen-Bradley 140G-G6C3-C80-KJ-MT Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M Fixed…
- 140G-G6C3-C90 — Allen-Bradley 140G-G6C3-C90 Bulletin 140G assembled molded case circuit breaker, 90A thermal-magnetic trip,…
- 140G-G6C3-C90-MT — Allen-Bradley 125A G Frame Molded Case Ckt-Bkr 140G-G6C3-C90-MT
- 140G-G6C3-D10-KA — Allen-Bradley 125A G Frame Molded Case Ckt-Bkr 140G-G6C3-D10-KA
- 140G-G6C3-D10-KJ-MT — Allen-Bradley 125A G Frame Molded Case Ckt-Bkr 140G-G6C3-D10-KJ-MT
- 140G-G6C3-D40 — Allen-Bradley 140G-G6C3-D40
Related Products
Allen-Bradley Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M…
Allen-Bradley Molded Case Ckt Bkr,125A G Frame,65 kA at 480V,T/M…

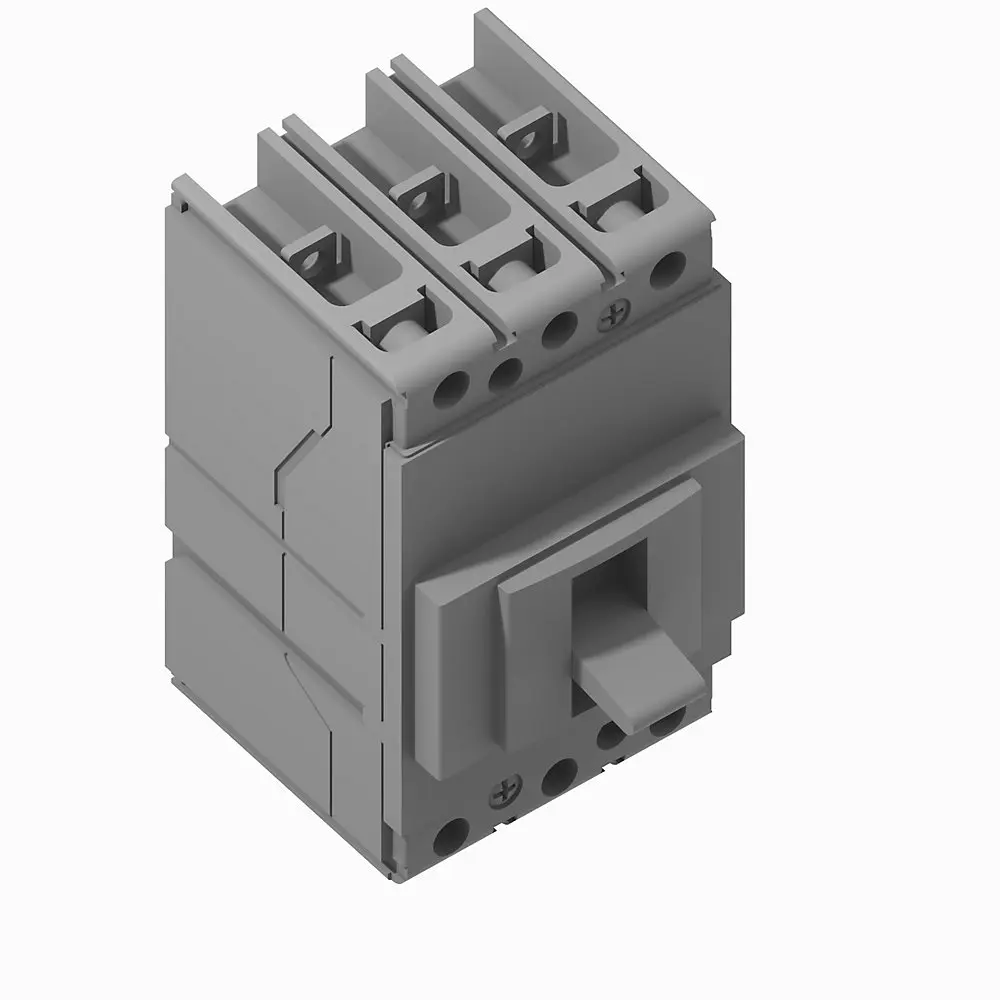

Allen-Bradley Molded Case Ckt-Bkr,125A G Frame,65 kA at 480V,T/M -…
