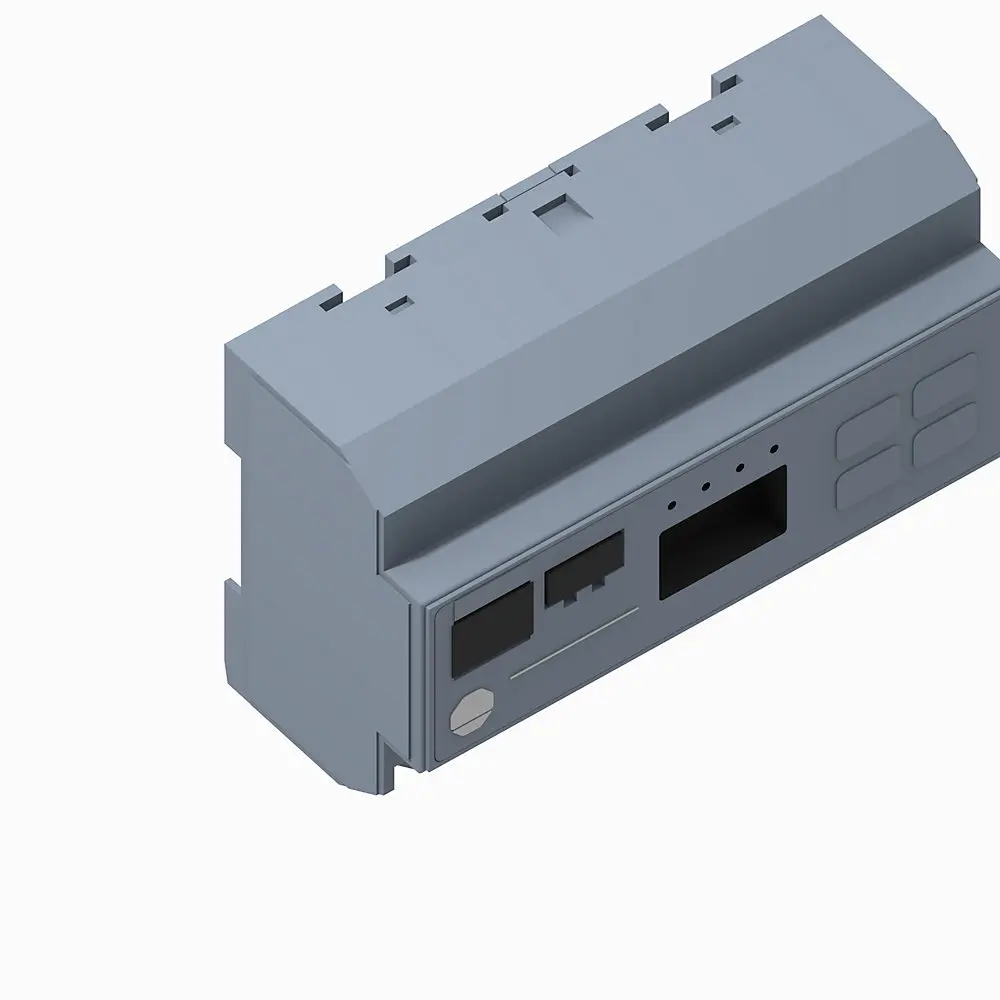

Allen-Bradley PowerMonitor 1000, Volt & Current, ENet 1408-TS3A-ENT
Allen-Bradley 1408-TS3A-ENT - Molded Case Circuit Breakers - Voltage: true V; Operating Temperature: -10 to 60 °C; Storage Temperature: -40 to 85 °C.
The Allen-Bradley 1408-TS3A-ENT is part of the Molded Case Circuit Breakers range in our industrial catalog. The manufacturer's published data for this part number specifies Voltage: true V and Operating Temperature: -10 to 60 °C.
Voltage sense inputs: ±0.5% @ 25°C, 50/60 Hz, unity Power Factor, line-neutral rms : 347V nom / 15…399V
Published specifications for this part include Storage Temperature: -40 to 85 °C; Lifecycle Status: Active; Current: true; Shock: Operating : 30 G peak each axis; Vibration: 2.0 G @ 10…500 Hz; Humidity: 5...95% noncondensing; Frequency: Hz: Yes; Dielectric withstand: UL61010, EN61010 pollution degree 2; Alarm log: true; Ampere meter: true; Apparent power consumption (kVAh): true; Apparent power (kVA): true. The complete technical table is shown in the Specifications tab on this page.
| Accuracy | Voltage sense inputs: ±0.5% @ 25°C, 50/60 Hz, unity Power Factor, line-neutral rms : 347V nom / 15…399V |
|---|---|
| Alarm log | true |
| Ampere meter | true |
| Apparent power (kVA) | true |
| Apparent power consumption (kVAh) | true |
| Blind power meter | true |
| CIP energy object | true |
| Configurable via webpage | true |
| Configuration lock wiring terminals | Wire together to help prevent configuration changes |
| Consumption + volt/current w/ Ethernet | true |
| Control power | 85…264V AC, 47…63 Hz 125…250V DC 4VA maximum |
| Control power and ground wiring terminals | 120…240V AC, 50…60 Hz |
| Current | true |
| Current sense inputs: I1, I2, I3 | Starting current : 5 mA |
| Current sensing wiring terminals | Nominal input current 5 A, Use current transformers (CTs) to connect to power system |
| Current unbalance | true |
| Description | PowerMonitor 1000 energy, demand, and PowerMonitor with serial network communication |
| Dielectric withstand | UL61010, EN61010 pollution degree 2 |
| Digital accuracy | Class1 |
| Digital output | true |
| DIN rail clips | Top and bottom clips for mounting unit on DIN rail |
| Display (integrated LCD) | true |
| Effective power measurement device | true |
| Energy log | true |
| Ethernet network port - standard RJ45 jack with status indicators | Ethernet network port hardware is included on all models. the port functions only on units ordered with or upgraded to the Ethernet network. the following protocols and functions are supported. Ethernet/IP Modbus TCP HTML webpage for configuration and data access lnk indicator solid green: IP link established OFF : no link established act indicator flashing yellow: data present on Ethernet port OFF : no data activity present |
| Frequency | Hz: Yes |
| Frequency meter | true |
| Humidity | 5...95% noncondensing |
| KYZ output | 80mA @ 240V AC / 300V DC (except BC3) |
| KYZ-output wiring terminals | DPDT solid-state relay for signaling use - not present on BC3 model |
| LCD | Unit configuration data display - not present on BC3 model |
| LCD interface buttons | Unit configuration data display navigation not present on BC3 model |
| Lifecycle Status | Active |
| Mac ID label | aa:bb:cc:dd:ee:ff, used when assigning an IP address using DHCP, X, X, X |
| Minimum/maximum log | true |
| Module and network status indicators | Module indicator GREEN: normal ops Alternating RED/GREEN: performing self-test RED (solid or blinking): initial power-up or failed self-test. network indicator GREEN: Ethernet connection established Blinking GREEN: Ethernet port looking for a connection RED: duplicate IP address detected. |
| Operating Temperature | -10 to 60 °C |
| Pulse counter | true |
| Reactive power (kVAR) | true |
| Reactive power consumption (kVARh) | true |
| Real power (kW) | true |
| Real power consumption (kWh) | true |
| Serial port - three-pin RS-485 connector | All models include RS-485 serial communication that supports the following protocols and functions. DF1 half-duplex slave, DF1 full-duplex, Modbus RTU slave, Configuration by using terminal emulation software, DH-485. |
| Serial port status indicators | Tx indicator flashes yellow when data is being transmitted Rx indicator flashes yellow when data is being received |
| Shock | Operating : 30 G peak each axis |
| Status inputs | Contact closure (internal 24V DC)(except BC3) |
| Status-input wiring terminals Restore factory defaults wiring terminals (BC3) | Two internally-powered inputs (TS3, EM3), S2 can be used for demand period synchronization (TS3, EM3), FD1 and FD2 can be used to restore factory default configuration (BC3). |
| Storage Temperature | -40 to 85 °C |
| Terminal blocks | 0.34…2.5 mm² (22 AWG), 75 °C (167 °F) min copper wire only recommended torque 0.8 N.m (7 in-lb) |
| Time of use log | true |
| True power factor | true |
| Unit status log | true |
| Vibration | 2.0 G @ 10…500 Hz |
| Voltage | true V |
| Voltage sense inputs: V1, V2, V3, max | Input current : 2 mA |
| Voltage sense inputs: V1, V2, V3, min | Input impedance : 5 MΩ |
| Voltage sensing wiring terminals | Direct connect up to 600V AC three-phase line-to-line, Maximum nominal line-to-ground voltage 347V, Use potential transformers (PTs) for higher voltages. |
| Voltage unbalance | true |
| Voltmeter | true |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1408-TS3A-ENT?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1408-TS3A-ENT?
1408-TS3A-ENT is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 1408-TS3A-ENT discontinued, and can I still get one?
Our product data lists 1408-TS3A-ENT with a manufacturer lifecycle status of "Active", so it is not recorded as discontinued — confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. Either way it does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 1408-TS3A-ENT through the quote form on this page for pricing and availability.
What are the key specifications of 1408-TS3A-ENT?
Key specifications include Accuracy: Voltage sense inputs: ±0.5% @ 25°C, 50/60 Hz, unity Power Factor, line-neutral rms : 347V nom / 15…399V; Alarm log: true; Ampere meter: true; Apparent power (kVA): true. The full specification table on this page lists every published attribute for this part.
How quickly can 1408-TS3A-ENT ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 1408-TS3A-485 — Allen-Bradley 1408-TS3A-485
Related Products
Allen-Bradley Allen-Bradley 140G Circuit-Breaker Accessory, Lug 140G-G-MTL63

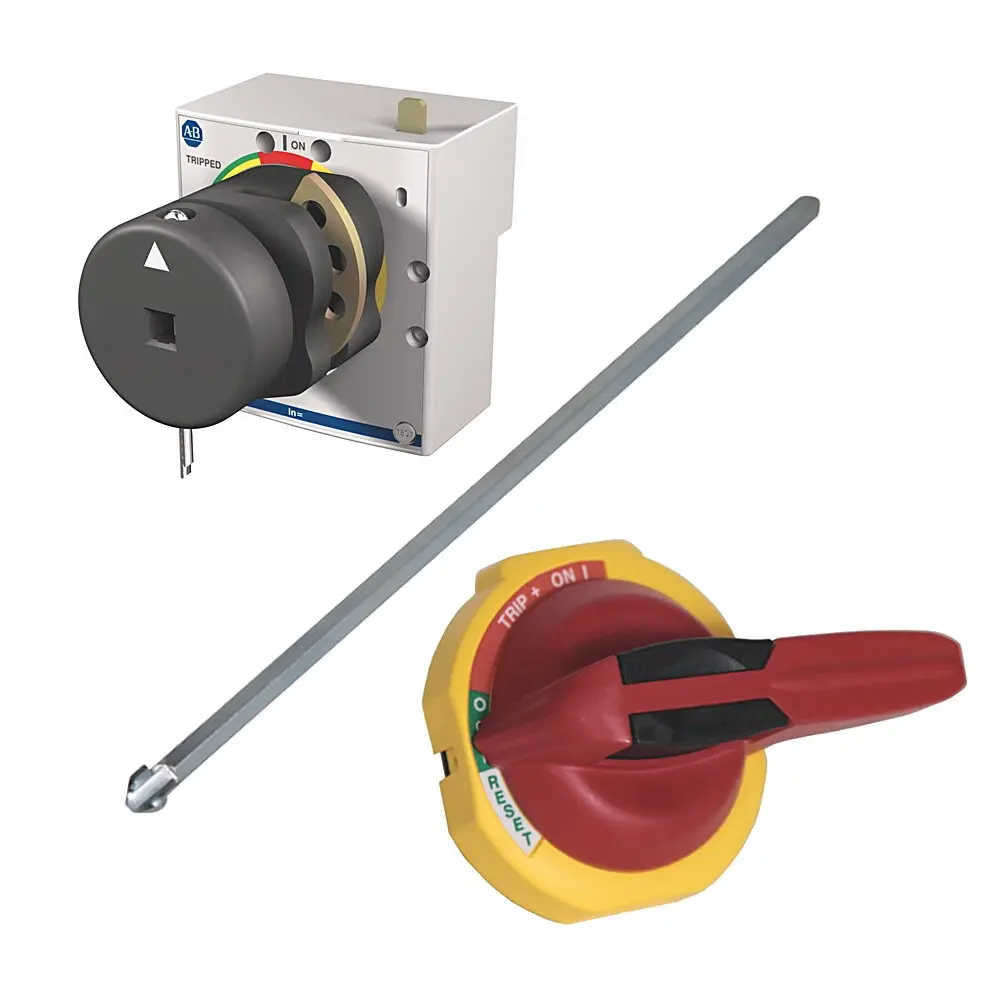

Allen-Bradley Allen-Bradley 125A G Frame Molded Case Ckt-Bkr 140G-G-RVM21R

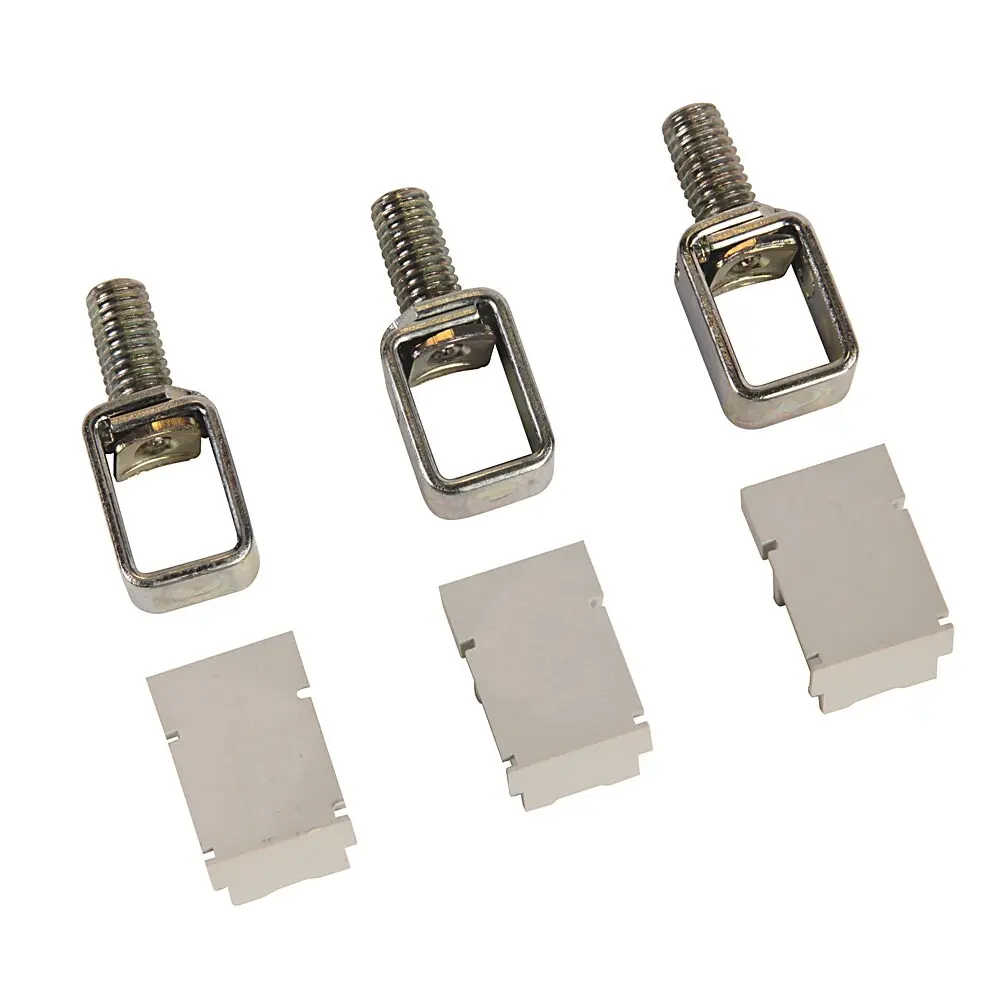

Allen-Bradley Allen-Bradley 140GCircuit-Breaker AccessoryLug kit 3pz 140G-G-TLC13
