Allen-Bradley 100-K09D01 — AC General Purpose Contactors

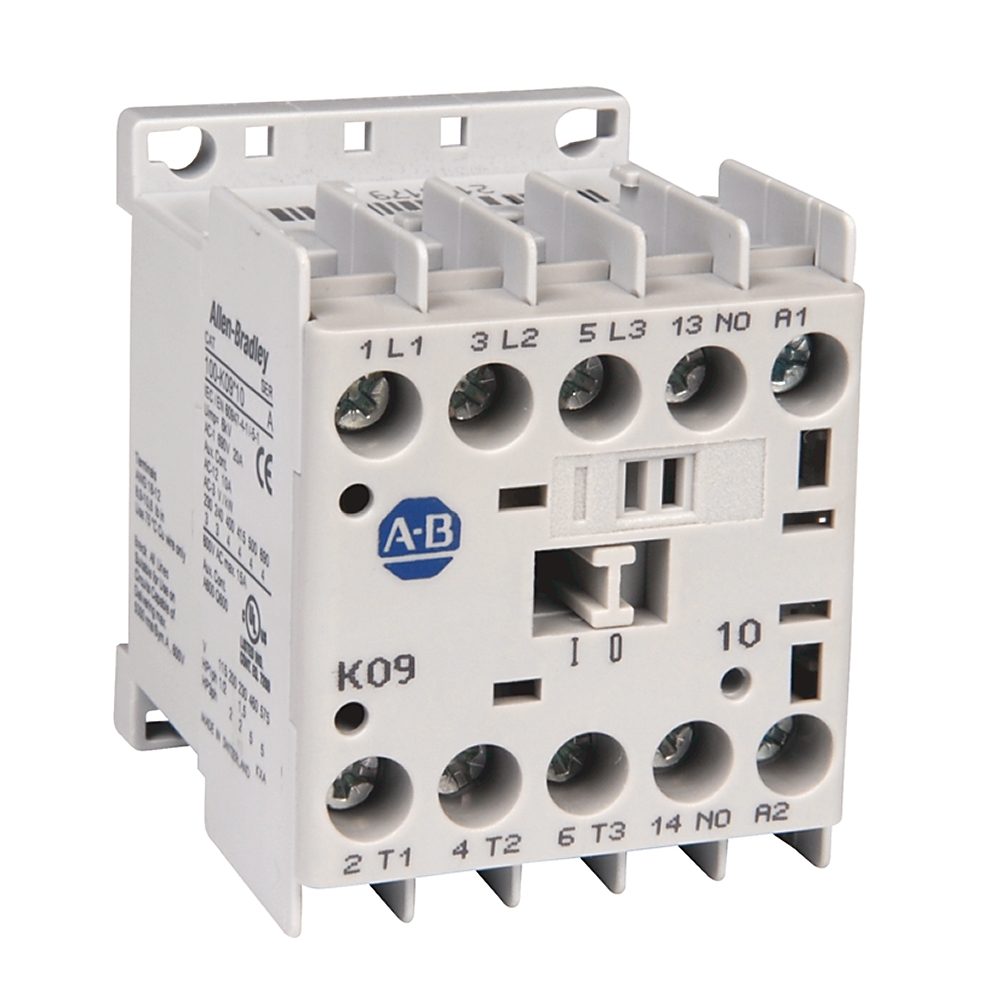

Allen-Bradley 100-K09D01 Bulletin 100 IEC contactor, 9A thermal current, 3-pole with 3 normally open power contacts, 110V AC coil. Rated 4 kW at 400V
Allen-Bradley 100-K09D01 Bulletin 100 IEC contactor, 9A, 3-pole, 3NO, 110V AC coil, 4kW at 400V AC-3, DIN rail mount
| Coil voltage | 110 V ac |
|---|---|
| Contact current rating | 9 A |
| Contact voltage rating | 690 V AC |
| Depth | 82.7mm |
| Length | 108.2mm ft |
| Maximum operating temperature | +60°C |
| Minimum operating temperature | -25°C |
| Normal state configuration | 3NO |
| Number of auxiliary contacts | 1 |
| Number of poles | 3 |
| Power Rating | 4 kW |
| Range | 100 series |
| Series | 100K |
| Terminal Type | Screw |
| Width | 44.9mm mm |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100-K09D01?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100-K09D01?
100-K09D01 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 100-K09D01 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 100-K09D01 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100-K09D01?
Key specifications include Coil voltage: 110 V ac; Contact current rating: 9 A; Contact voltage rating: 690 V AC; Depth: 82.7mm. The full specification table on this page lists every published attribute for this part.
How quickly can 100-K09D01 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
