MVDC-220-2E1-DC24-L-NPT Mindman pneumatic solenoid stacking valve
KKM Solutions is an independent parts distributor, not an authorized Mindman dealer — how we source.
Mindman pneumatic solenoid stacking valve, 2-port (2-way), 2-position, N.C., single solenoid spring return, (2) 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), Cv=0.04, 24 VDC, 2W, 11mm DIN style wiring plug.
Overview
Part number MVDC-220-2E1-DC24-L-NPT from Mindman, listed in Directional Solenoid Valves & Manifolds. Specifications on file: Power 2 W; Size 11mm; Voltage rating 24 VDC. KKM Solutions quotes this part with pricing and availability confirmed per order.
Mindman pneumatic solenoid stacking valve, 2-port (2-way), 2-position, N.C., single solenoid spring return, (2) 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), Cv=0.04, 24 VDC, 2W, 11mm DIN style wiring plug. Specifications: Working Fluid: Air; Valve Type: Solenoid directional control; Port Quantity: 2-port (2-way); Number Of Positions: 2; Valve Configuration: N.C.; Action: Single solenoid spring return; Body Material: Aluminum; Body Width: 22mm; Seal Material: Nitrile; Inlet Port: 1/8in female NPT; Outlet Port: 1/8in female NPT; Manual Override Type: Locking; Flow Coefficient: 0.04; Maximum Operating Pressure: 102 psi; Minimum Operating Pressure: 0 psi; Working Fluid Temperature: -5 to 50 deg C (23 to 122 deg F); Operating Voltage: 24 VDC; Power Rating: 2W; Electrical Connection: 11mm DIN style wiring plug; Indicating Type: LED indication.
Specifications
| Power | 2 W |
|---|---|
| Size | 11mm |
| Voltage rating | 24 VDC |
Product details
| Manufacturer | Mindman |
|---|---|
| Manufacturer part number | MVDC-220-2E1-DC24-L-NPT |
| Product category | Directional Solenoid Valves & Manifolds |
| Published specifications | 3 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does MVDC-220-2E1-DC24-L-NPT cost?
MVDC-220-2E1-DC24-L-NPT is listed at CA$47.11 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the MVDC-220-2E1-DC24-L-NPT?
MVDC-220-2E1-DC24-L-NPT is made by Mindman and is listed in our Directional Solenoid Valves & Manifolds category. KKM Solutions is an independent distributor, not an authorized Mindman dealer: we source the exact Mindman part number MVDC-220-2E1-DC24-L-NPT, and the quote confirms condition and lead time before you order.
Is the MVDC-220-2E1-DC24-L-NPT new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the MVDC-220-2E1-DC24-L-NPT, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of MVDC-220-2E1-DC24-L-NPT?
No published lifecycle status is on file for MVDC-220-2E1-DC24-L-NPT. Mindman lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of MVDC-220-2E1-DC24-L-NPT?
Key specifications include Power: 2 W; Size: 11mm; Voltage rating: 24 VDC. The full specification table on this page lists every published attribute for this part.
How quickly can MVDC-220-2E1-DC24-L-NPT ship?
Lead time for MVDC-220-2E1-DC24-L-NPT is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Related Products
NITRA NITRA pneumatic solenoid valve - CMV-B3L-4A
Mindman Mindman pneumatic solenoid stacking valve - MVDC-220-2E1-AC110-L-NPT
NITRA NITRA pneumatic solenoid valve - CMV-B2L-4A
Mindman Mindman pneumatic solenoid stacking valve - MVDC-220-3E1-DC24-L-NPT

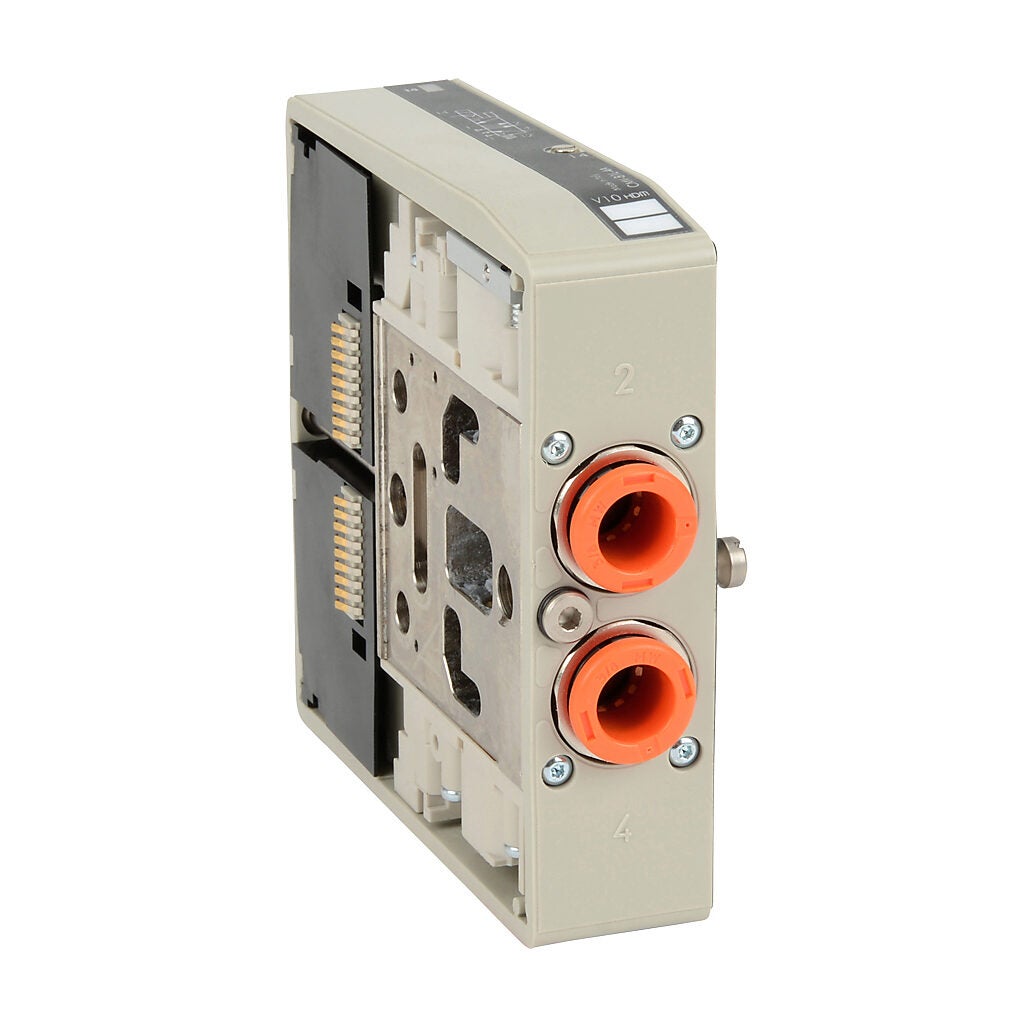

NITRA NITRA pneumatic solenoid valve - CMV-B1L-4A
