Weidmuller ZDKPE 2.5-2
Weidmuller 1805940000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 89.5 mm mm; Storage Temperature: -25 °C...55 °C.
Weidmuller 1805940000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 89.5 mm mm.

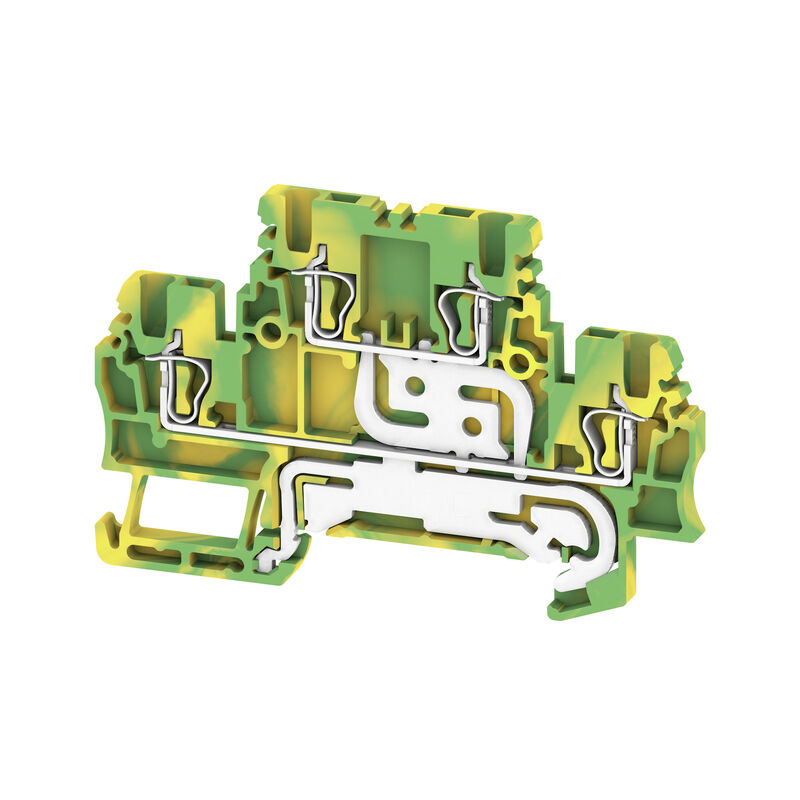

Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 24 A; Type of mounting: Snap-on; Ambient temperature: -5 °C…40 °C; Type: ZDKPE 2.5-2; Depth: 59.5 mm; Net weight: 14.32 g; Colour: dark beige; Rated voltage: 800 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -5 °C…40 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (CSA) | 200039-1236167 |
| Certificate No. (cURus) | E60693 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Colour | dark beige |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | Inclined / angled |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current at maximum wires | 24 A |
| Current size B (CSA) | 25 A |
| Current size C (cURus) | 20 A |
| Current size D (CSA) | 10 A |
| Depth | 59.5 mm |
| Depth (inches) | 2.343 inch |
| Depth including DIN rail | 60.5 mm |
| ECLASS 14.0 | 27-25-01-04 |
| ECLASS 15.0 | 27-25-01-04 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A2 |
| GTIN (EAN) | 4032248280193 |
| Height | 89.5 mm mm |
| Height (inches) | 3.524 inch |
| Levels cross-connected internally | Yes |
| Mounting rail | TS 35 |
| Net weight | 14.32 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 4 |
| Number of levels | 2 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1805940000 |
| PE connection | Yes |
| PE function | Yes |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| Rated voltage to adjoining terminal | 800 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 (-7-2) |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Type | ZDKPE 2.5-2 |
| Type of connection | Tension-clamp connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige |
| Voltage size B (CSA) | 300 V |
| Voltage size C (cURus) | 600 V |
| Voltage size D (CSA) | 300 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 30 AWG |
