Inductive sensor - II0376
IFM II0376 - Inductive sensor - Material: housing: brass white bronze coated; sensing face: PBT; Weight: 364; Ambient temperature: -25...80.
IFM II0376 is a Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: brass white bronze coated; sensing face: PBT and Weight: 364.
With combined AC/DC output stage; Large operating voltage range; Two-wire technology; Wide operating temperature range; Robust metal housing for use in harsh industrial environments
Key manufacturer data on file for this item includes Ambient temperature: -25...80; Protection class: II; Dimensions: M30 x 1.5 / L = 81; Product type: Inductive sensor; Mounting: non-flush mountable; Cable: 5 m, PVC; 2 x 0.5 mm²; Short-circuit-proof: no; Operating voltage: 20...250 AC/DC; Reverse polarity protection: no; Sensing range: 15; Overload protection: no; Output function: normally open. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...80 |
|---|---|
| Cable | 5 m, PVC; 2 x 0.5 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Dimensions | M30 x 1.5 / L = 81 |
| Housing | Threaded type |
| Hysteresis | 1...15 |
| Key Features | With combined AC/DC output stage; Large operating voltage range; Two-wire technology; Wide operating temperature range; Robust metal housing for use in harsh industrial environments |
| Material | housing: brass white bronze coated; sensing face: PBT |
| Max. leakage current | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Max. voltage drop switching output AC | 6.5 |
| Max. voltage drop switching output DC | 6 |
| Minimum load current | 5 |
| Mounting | non-flush mountable |
| MTTF | 607 |
| Operating distance | 0...12.1 |
| Operating voltage | 20...250 AC/DC |
| Output function | normally open |
| Overload protection | no |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output AC | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 15 ± 10 % |
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
| Reverse polarity protection | no |
| Sensing range | 15 |
| Short-circuit-proof | no |
| Short-time current rating of switching output | 2200; (20 ms / 0,5 Hz) |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 81 mm; Sensing range 15 mm non-flush mountable; normally open; AC/DC; 5 m PVC-Cable; IP 67; 2-wire; Ambient temperature -25...80 °C; Switching frequency 25 Hz AC / 50 Hz DC |
| Switch-point drift | -10...10 |
| Switching frequency AC | 25 |
| Switching frequency DC | 50 |
| Thread designation | M30 x 1.5 |
| Weight | 364 |
Frequently Asked Questions
How do I get pricing for II0376?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the II0376?
II0376 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of II0376?
Key specifications include Ambient temperature: -25...80; Cable: 5 m, PVC; 2 x 0.5 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Dimensions: M30 x 1.5 / L = 81. The full specification table on this page lists every published attribute for this part.
How quickly can II0376 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - II0274
IFM Inductive sensor - II5256

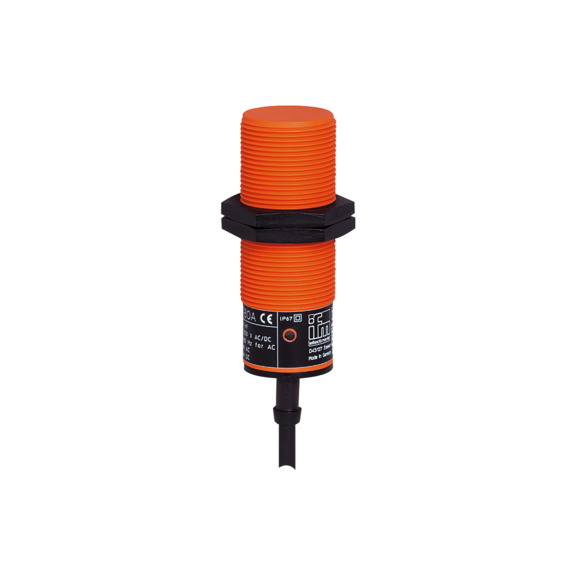

IFM Inductive sensor - II0095
