Weidmuller WDK 2.5 LD GR 1R 24VDC
Weidmuller 8010040000 - Fuse and component terminal blocks - Width: 5.1 mm mm; Height: 69 mm mm; Storage Temperature: -25 °C...55 °C.
The 8010040000 from Weidmuller is listed under Fuse and component terminal blocks in our catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 69 mm mm.
Component terminal block, Screw connection, dark beige, 2.5 mm², 24 V, 24 V, Number of connections: 3, Number of levels: 2, TS 35
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 10 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: WDK 2.5 LD GR 1R 24VDC; Depth: 62.5 mm; Current: 5 mA; Net weight: 12.27 g; Colour: dark beige; Display: LED; Rated voltage: 24 V; Stripping length: 10 mm. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…75 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.13 mm² |
| Colour | dark beige |
| Connection cross-section, finely stranded, min. | 0.13 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.13 mm² |
| Connection direction | on side |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current | 5 mA |
| Current at maximum wires | 10 A |
| Depth | 62.5 mm |
| Depth (inches) | 2.461 inch |
| Depth including DIN rail | 63 mm |
| Display | LED |
| ECLASS 14.0 | 27-25-01-14 |
| ECLASS 15.0 | 27-25-01-14 |
| Electronic component | Green LED |
| Element type | Miscellaneous |
| End cover plate required | Yes |
| ETIM 10.0 | EC000903 |
| ETIM 8.0 | EC000903 |
| ETIM 9.0 | EC000903 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4008190058708 |
| Height | 69 mm mm |
| Height (inches) | 2.717 inch |
| Levels cross-connected internally | Yes |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 12.27 g |
| Nominal current | 10 A |
| Number of clamping points per level | 2 |
| Number of connections | 3 |
| Number of levels | 2 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 8010040000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Product information | The allowed continuous operating temperature must be observed |
| Qty. | 25 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 24 V |
| Rated impulse withstand voltage | 0.8 kV |
| Rated voltage | 24 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Tightening torque (max) | 0.6 Nm Nm |
| Tightening torque, min. | 0.4 Nm |
| TS 35 offset | 35.5 mm |
| Type | WDK 2.5 LD GR 1R 24VDC |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of mounting | Snap-on |
| Type of voltage for indicator | DC |
| UL 94 flammability rating | V-0 |
| Version | Component terminal block, Screw connection, dark beige, 2.5 mm², 24 V, 24 V, Number of connections: 3, Number of levels: 2, TS 35 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.13 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.13 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.13 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.13 mm² |
Frequently Asked Questions
How do I get pricing for 8010040000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8010040000?
8010040000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 8010040000?
Key specifications include Ambient temperature: -50 °C…75 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Clamping range, max.: 4 mm². The full specification table on this page lists every published attribute for this part.
How quickly can 8010040000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller WDK 2.5 LD 1D 2R 115VAC

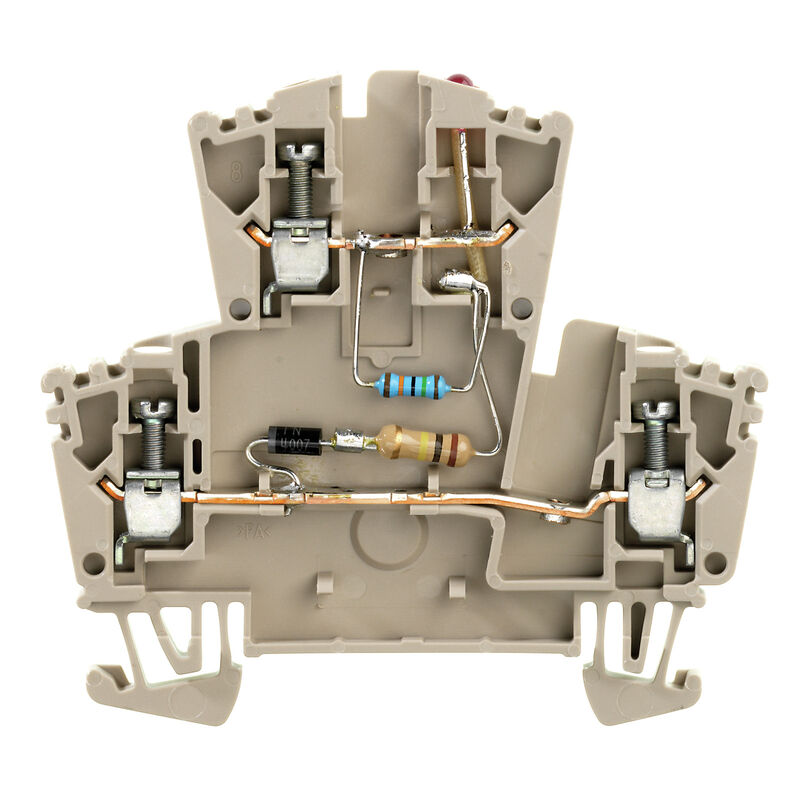

Weidmuller Weidmuller WDK 2.5 LD/RT 1D 2R 230
Weidmuller Weidmuller A2T 2.5 EM1 R 22K

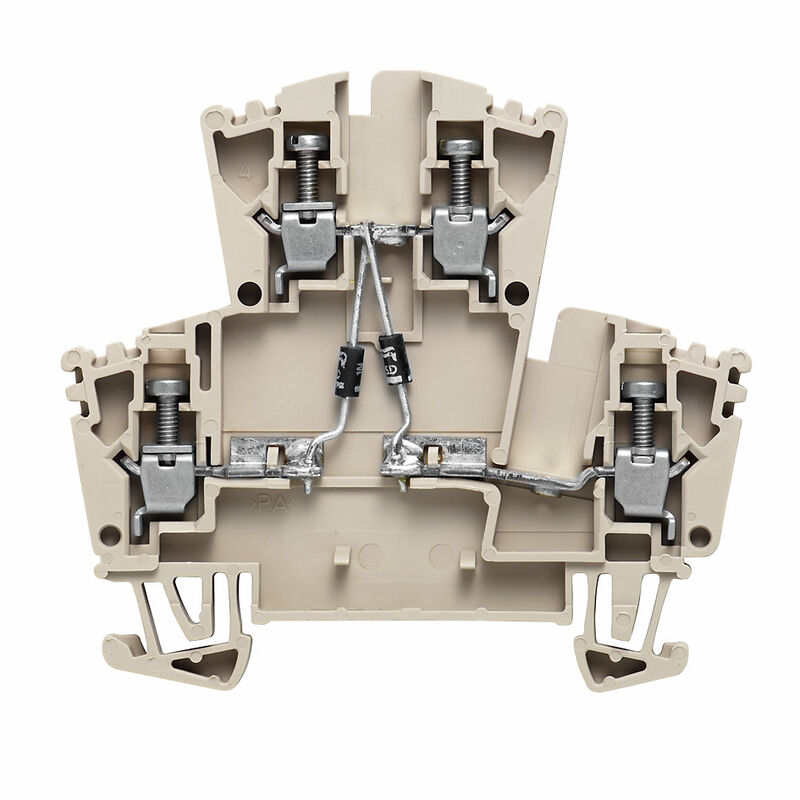

Weidmuller Weidmuller WDK 2.5 2D 1.A
