Weidmuller A2T 2.5 EM1 R 1K8
Weidmuller 3030590000 - Fuse and component terminal blocks - Width: 5.1 mm mm; Height: 90 mm mm; Storage Temperature: -25 °C...55 °C.
Weidmuller 3030590000 is a Fuse and component terminal blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 90 mm mm.
Component terminal block, PUSH IN, dark beige, 2.5 mm², 30 V, 30 V, Number of connections: 4, Number of levels: 2, TS 35
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 1 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: A2T 2.5 EM1 R 1K8; Depth: 50.5 mm; Net weight: 13.23 g; Colour: dark beige; Display: Without LED; Rated voltage: 30 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.14 mm² |
| Colour | dark beige |
| Colour of operational elements | orange |
| Component 1 | Resistance |
| Component current | 10 A |
| Component voltage | 1,300 V |
| Connection cross-section, finely stranded, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.14 mm² |
| Connection direction | top |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 1 A |
| Depth | 50.5 mm |
| Depth (inches) | 1.988 inch |
| Display | Without LED |
| ECLASS 14.0 | 27-25-01-14 |
| ECLASS 15.0 | 27-25-01-14 |
| Element type | Resistor |
| End cover plate required | Yes |
| ETIM 10.0 | EC000903 |
| ETIM 8.0 | EC000903 |
| ETIM 9.0 | EC000903 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4099986974319 |
| Height | 90 mm mm |
| Height (inches) | 3.543 inch |
| Levels cross-connected internally | Yes |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 13.23 g |
| Nominal current | 1 A |
| Number of clamping points per level | 2 |
| Number of connections | 4 |
| Number of levels | 2 |
| Number of potentials | 1 |
| Open sides | right |
| Order No. | 3030590000 |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 mW |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 30 V |
| Rated voltage | 30 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| RoHS Compliance Status | Compliant without exemption |
| Standards | In accordance with IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Surge voltage category | III |
| Type | A2T 2.5 EM1 R 1K8 |
| Type of connection | PUSH IN |
| Type of connection 2 | PUSH IN |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Component terminal block, PUSH IN, dark beige, 2.5 mm², 30 V, 30 V, Number of connections: 4, Number of levels: 2, TS 35 |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.14 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.14 mm² |
Frequently Asked Questions
How do I get pricing for 3030590000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3030590000?
3030590000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3030590000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Clamping range, max.: 4 mm². The full specification table on this page lists every published attribute for this part.
How quickly can 3030590000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

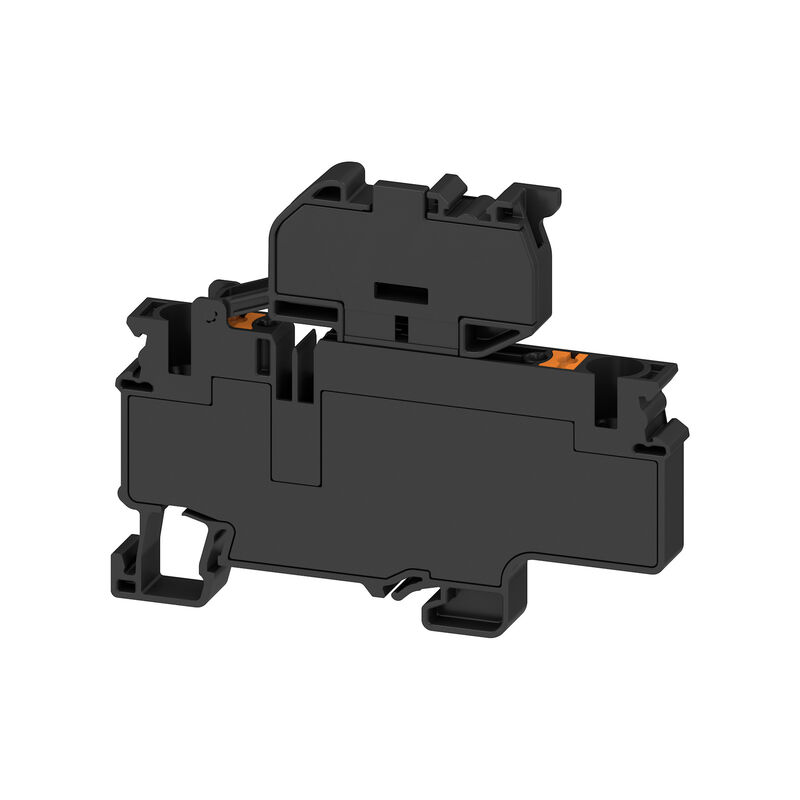

Weidmuller Weidmuller AFS 6 2C 6.3X32
Weidmuller Weidmuller A2T 2.5 EM1 R 2K7
Weidmuller Weidmuller A2T 2.5 EM1 R 22K
Weidmuller Weidmuller SFS 4 2C 100-250V BK

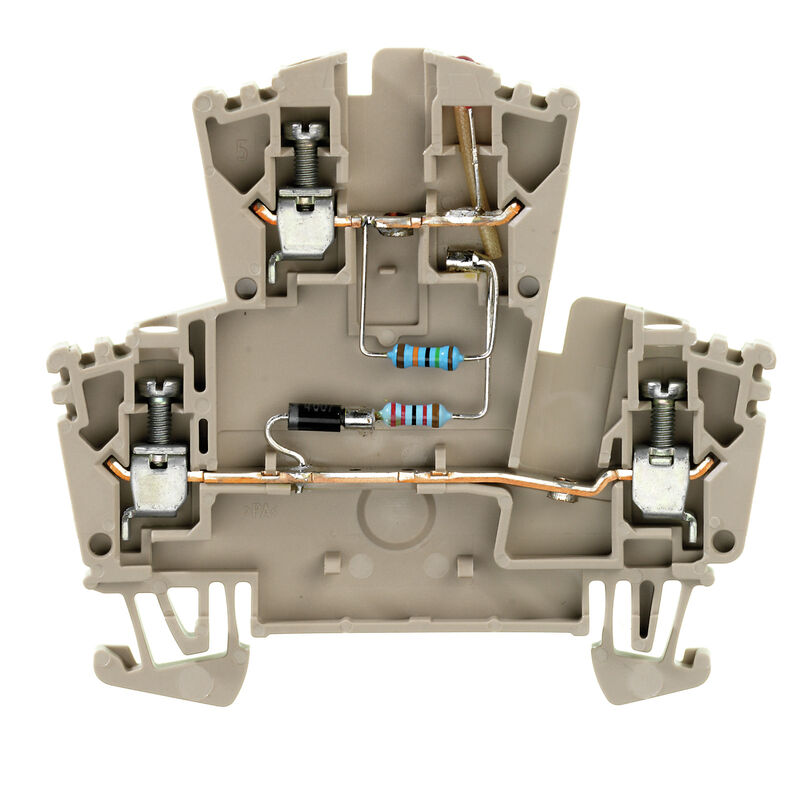

Weidmuller Weidmuller WDK 2.5 LD 1D 2R 115VAC
