Weidmuller ZDU 4-2/4AN
Weidmuller 1806980000 - Feed-through and PE terminal Blocks - Width: 6.1 mm mm; Height: 75.1 mm mm; Storage Temperature: -25 °C...55 °C.
This listing covers the Weidmuller 1806980000, a part number in the Feed-through and PE terminal Blocks category. The manufacturer's published data for this part number specifies Width: 6.1 mm mm and Height: 75.1 mm mm.
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 32 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: ZDU 4-2/4AN; Depth: 45.5 mm; Net weight: 12.731 g; Colour: dark beige; Rated voltage: 800 V; Stripping length: 10 mm; Version: Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige; Blade Size: 0.6 x 3.5 mm. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…75 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | DEMKO16ATEX1808U |
| Certificate No. (CSA) | 200039-1152892 |
| Certificate No. (IECEX) | IECEXULD16.0036U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.13 mm² |
| Colour | dark beige |
| Conductor size Factory wiring max. (UR) | 10 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 10 AWG |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Connection cross-section, finely stranded, min. | 0.13 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.13 mm² |
| Connection direction | Inclined / angled |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current (ATEX) | 29 A |
| Current (IECEX) | 29 A |
| Current at maximum wires | 32 A |
| Current size B (CSA) | 33 A |
| Current size C (CSA) | 33 A |
| Current size C (UR) | 33 A |
| Current size D (CSA) | 5 A |
| Depth | 45.5 mm |
| Depth (inches) | 1.791 inch |
| Depth including DIN rail | 46 mm |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4032248279319 |
| Height | 75.1 mm mm |
| Height (inches) | 2.957 inch |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 440 V |
| Max. voltage (IECEX) | 440 V |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 12.731 g |
| Nominal current | 32 A |
| Number of clamping points per level | 4 |
| Number of connections | 4 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1806980000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Qty. | 50 items |
| Rated cross-section | 4 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Twin wire-end ferrules, max. | 1.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type | ZDU 4-2/4AN |
| Type of connection | Tension-clamp connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Width | 6.1 mm mm |
| Width (inches) | 0.24 inch |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.13 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.13 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.13 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.13 mm² |
| Wire cross section max. (ATEX) | 6 mm² |
| Wire cross section max. (CSA) | 10 AWG |
| Wire cross section max. (IECEX) | 6 mm² |
| Wire cross section min. (CSA) | 26 AWG |
Frequently Asked Questions
How do I get pricing for 1806980000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1806980000?
1806980000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1806980000?
Key specifications include Ambient temperature: -50 °C…75 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): DEMKO16ATEX1808U. The full specification table on this page lists every published attribute for this part.
How quickly can 1806980000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller ZDU 4-2/3AN LSC
Weidmuller Weidmuller ZDU 4-2/4AN BL

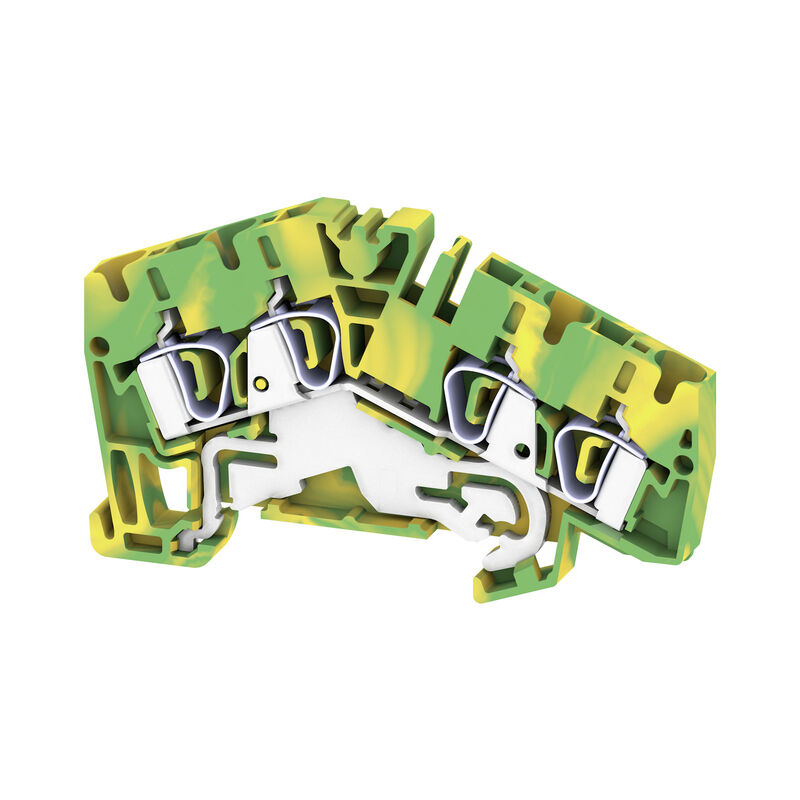

Weidmuller Weidmuller ZPE 4-2/4AN

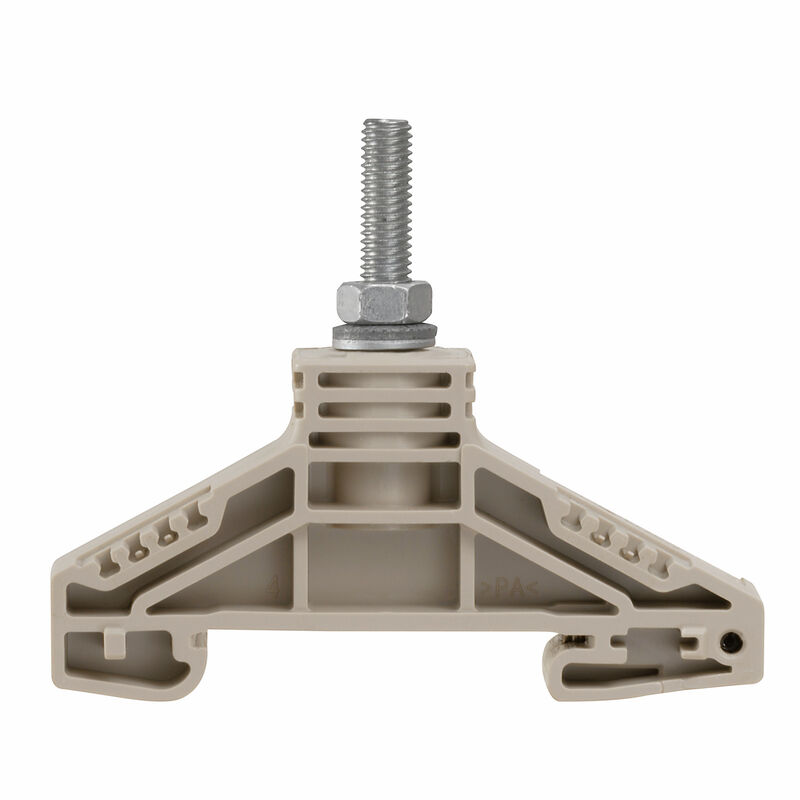

Weidmuller Weidmuller WF 5
