Weidmuller WF 10/2BZ
Weidmuller 1789790000 - Feed-through and PE terminal Blocks - Width: 33,8 mm mm; Height: 87,6 mm mm; Storage Temperature: -25 °C...55 °C.
The 1789790000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 33,8 mm mm and Height: 87,6 mm mm.
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Ambient temperature: -50 °C…75 °C; Type: WF 10/2BZ; Depth: 72,5 mm; ROHS: Conform; Order No.: 1789790000; GTIN (EAN): 4032248251162; Depth (inches): 2,854 inch; Height (inches): 3,449 inch; Width (inches): 1,331 inch; Continuous operating temp., min.: −50 °C; Continuous operating temp., max.: 120 °C. See the Specifications tab on this page for the full technical table.
| 2 x cosse DIN 46 234 | 6 – 120 mm² |
|---|---|
| 2 x cosse DIN 46 235 | 10...95 mm² |
| Ambient temperature | -50 °C…75 °C |
| Barrette de liaison équipée | TS 35 |
| Cable lug to DIN 46234 | 6...120 mm² |
| Cable lug to DIN 46235 | 10...95 mm² |
| Certificat Nº (CSA) | 200039-1244019 |
| Certificat Nº (cURus) | E60693 |
| Clamping range, max. | 120 mm² |
| Clamping range, min. | 6 mm² |
| Classe d'inflammabilité selon UL 94 | V-0 |
| Connection cross-section, stranded, max. | 120 mm² |
| Connection cross-section, stranded, min. | 6 mm² |
| Connection direction | 측면 |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | −50 °C |
| Côté ouvert | 개방 |
| Couleur | dark beige |
| Courant avec conducteur max. | 269 A |
| Courant Gr C (cURus) | 230 A |
| Courant gr. c (CSA) | 230 A |
| Courant nominal | 269 A |
| Depth | 72,5 mm |
| Depth (inches) | 2,854 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| Etages internes pontés | No |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Flasque de fermeture nécessaire | No |
| GTIN (EAN) | 4032248251162 |
| Height | 87,6 mm mm |
| Height (inches) | 3,449 inch |
| Matériau de base | Wemid |
| Mounting rail | TS 35 |
| Nombre de polarités | 1 |
| Normes | IEC 60947-7-1 |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Order No. | 1789790000 |
| Poids net | 221,75 g |
| Pollution severity | 3 |
| Puissance dissipée conformément à CEI 60947-7-x | 8,61 W |
| Qté. | 10 items |
| Raccordement PE | No |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Section de raccordement du conducteur, rigide, max. | 120 mm² |
| Section de raccordement du conducteur, rigide, min. | 6 mm² |
| Section de raccordement, souple, min. | 6 mm² |
| Section nominale | 120 mm² |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stud size for spade connection | M 10 |
| Taille du conducteur Câblage d'usine max. (cURus) | 0000 AWG |
| Taille du conducteur Câblage d'usine min. (cURus) | 0000 AWG |
| Tension de choc nominale | 8 kV |
| Tension Gr C (CSA) | 1000 V |
| Tension Gr C (cURus) | 1000 V |
| Tension nominale | 1 000 V |
| Tension nominale DC | 1 000 V |
| Tightening torque (max) | 20 Nm Nm |
| Tightening torque, min. | 10 Nm |
| Type | WF 10/2BZ |
| Type de montage | зафиксированный |
| Type of connection | Bultanslutning |
| Version | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| Version à l#92épreuve de l#92explosion | Nej |
| Volume resistance according to IEC 60947-7-x | 0,12 mΩ |
| Width | 33,8 mm mm |
| Width (inches) | 1,331 inch |
| Wire connection cross section AWG, max. | kcmil 250 |
| Wire connection cross section AWG, min. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 120 mm² |
| Wire connection cross section, finely stranded, min. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 6 mm² |
Frequently Asked Questions
How do I get pricing for 1789790000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1789790000?
1789790000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1789790000?
Key specifications include 2 x cosse DIN 46 234: 6 – 120 mm²; 2 x cosse DIN 46 235: 10...95 mm²; Ambient temperature: -50 °C…75 °C; Barrette de liaison équipée: TS 35. The full specification table on this page lists every published attribute for this part.
How quickly can 1789790000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

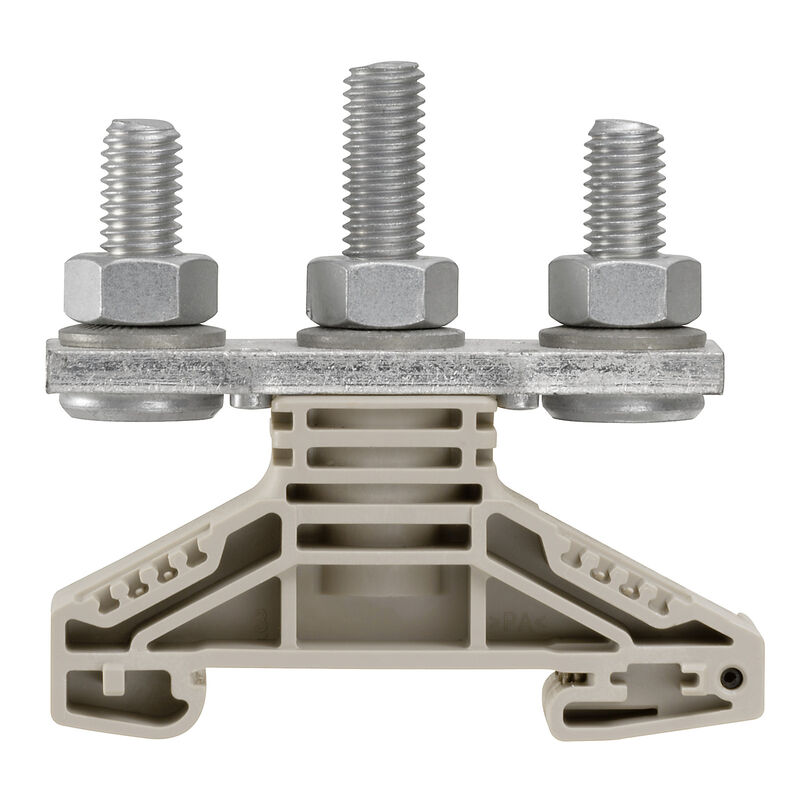

Weidmuller Weidmuller WF 8/2BZ
Weidmuller Weidmuller WF 5

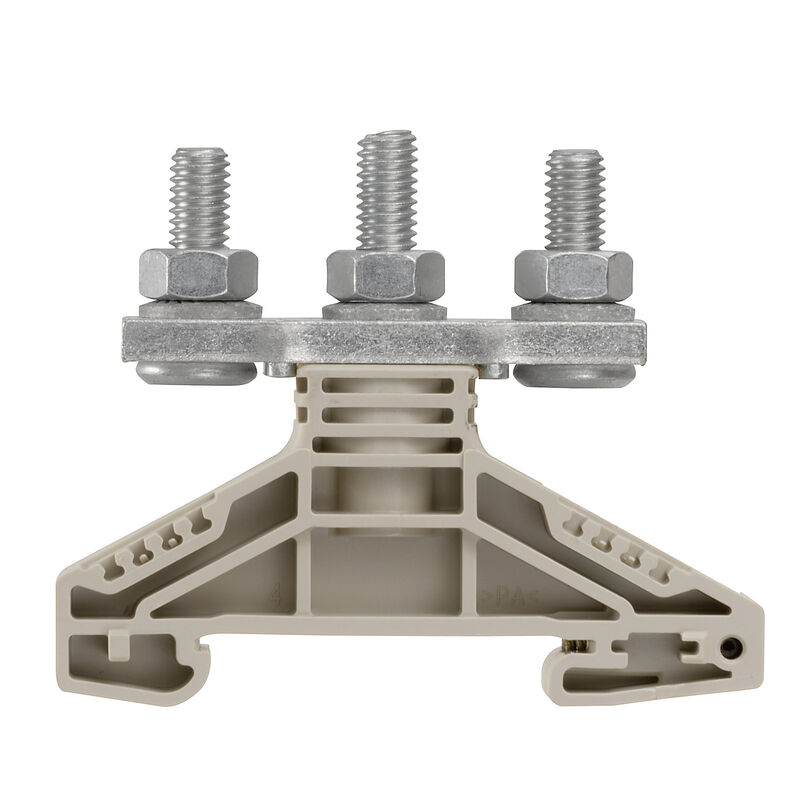

Weidmuller Weidmuller WF 6/2BZ
