US Motors CA3411 .067 HP 6-Pole TEAO 1-Phase 1125 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 18.48 |
| Breakdown Torque Uom | OZFT |
| Frme | 48 |
| Full Load Amps Primary | 1.0 |
| Hertz | 60 |
| Horsepower | .067 HP |
| Insulation Class | B |
| Kilowatts | 0.1 |
| Locked Rotor Amps | 2.12 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 5.899 |
| Motor Enclosure | TEAO |
| Motor Type | FHP |
| Mounting | STUD |
| Number Speeds | 1 |
| Opposite End Bearing | 6201 |
| Phasetype | 1_PERMANENT SPLIT CA |
| Poles | 6 |
| Rotation | CW LEAD END |
| Runcapmfd | 5 |
| Runcapvolts | 370 |
| Service Factor | 1 |
| Service Factor Amps Primary | 1.0 |
| Shaft Code | Y |
| Shaft End Bearing | 6201 |
| Shipping Weight | 7 |
| Speed | 1125 RPM |
| Stack | 0.75 |
| Stator Diameter | 5.5 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 208 |
| Volts 2 | 230 |
| Volts Primary | 208-230 V |
Frequently Asked Questions
How do I get pricing for CA3411?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CA3411?
CA3411 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CA3411?
Key specifications include Ambient: 40; Breakdown Torque: 18.48; Breakdown Torque Uom: OZFT; Frme: 48. The full specification table on this page lists every published attribute for this part.
How quickly can CA3411 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors C75P1FSCR 75 HP 2-Pole TEFC 3-Phase 3565…
US Motors US Motors CD100P2F 100 HP 4-Pole TEFC-IP55 3-Phase 1785…
US Motors US Motors C450P3WS 450 HP 6-Pole TEFC 3-Phase 1190…
US Motors US Motors CD150P1FS 150 HP 2-Pole TEFC 3-Phase 3580…

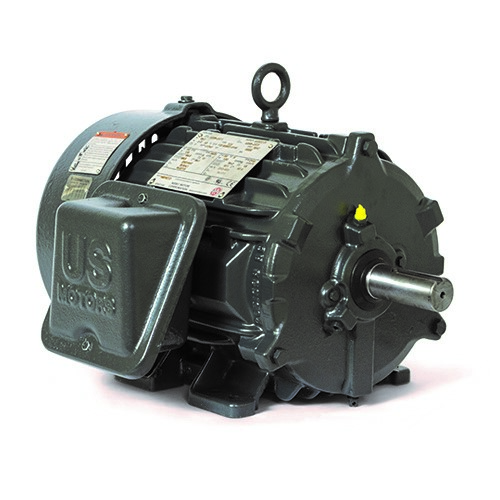

US Motors US Motors CD2P2E 2 HP 4-Pole TEFC-IP55 3-Phase 1750…
