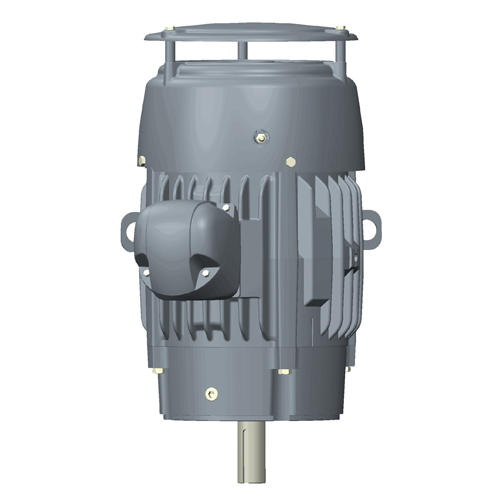

US Motors C75P1FSCR 75 HP 2-Pole TEFC 3-Phase 3565 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | NA |
| Breakdown Torque | 304 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 365 |
| Full Load Amps Primary | 83 |
| Hertz | 60 |
| Hertz 2 | 50 |
| Horsepower | 75 HP |
| Insulation Class | F |
| Kilowatts | 55.9 |
| Kva Code Letter | G |
| Locked Rotor Amps | 546 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 149 |
| Motor Enclosure | TEFC |
| Motor Type | TCEF |
| Mounting | HORZ-FOOTLESS |
| Nema Nominal Efficiency | 93.6 |
| Number Speeds | 1 |
| Opposite End Bearing | 6313-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Rotation | DUAL |
| Rpm 4 | 2955 |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 96 |
| Shaft Code | TSC |
| Shaft End Bearing | 6314-J/C3 |
| Shipping Weight | 900 |
| Speed | 3565 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 4 | 380 |
| Volts Primary | 460 |
Frequently Asked Questions
How do I get pricing for C75P1FSCR?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the C75P1FSCR?
C75P1FSCR is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of C75P1FSCR?
Key specifications include Ambient: 40; Assembly Position: NA; Breakdown Torque: 304; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can C75P1FSCR ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

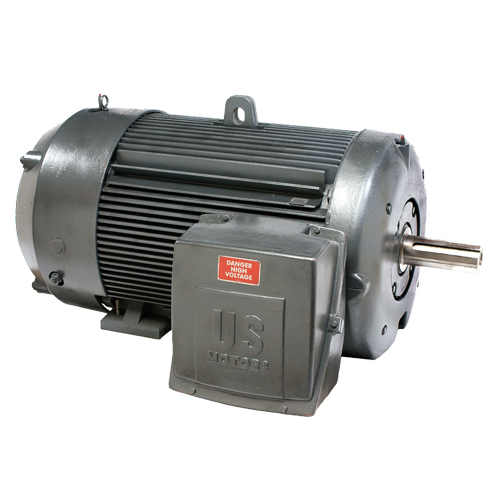

US Motors US Motors C450P3WS 450 HP 6-Pole TEFC 3-Phase 1190…

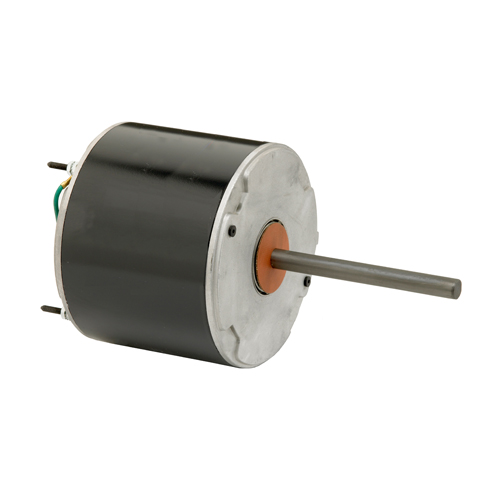

US Motors US Motors CA3411 .067 HP 6-Pole TEAO 1-Phase 1125…
US Motors US Motors C350P1WS 350 HP 2-Pole TEFC 3-Phase 3570…

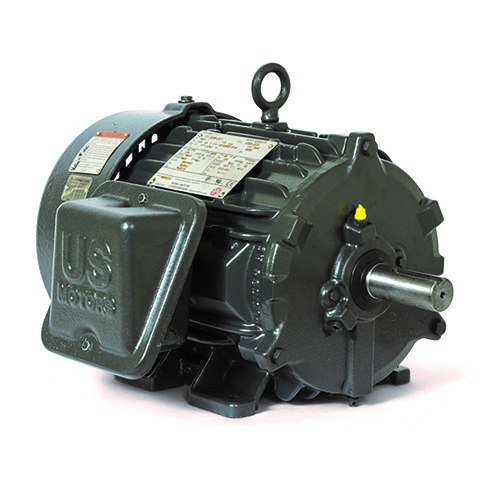

US Motors US Motors CD100P2F 100 HP 4-Pole TEFC-IP55 3-Phase 1785…

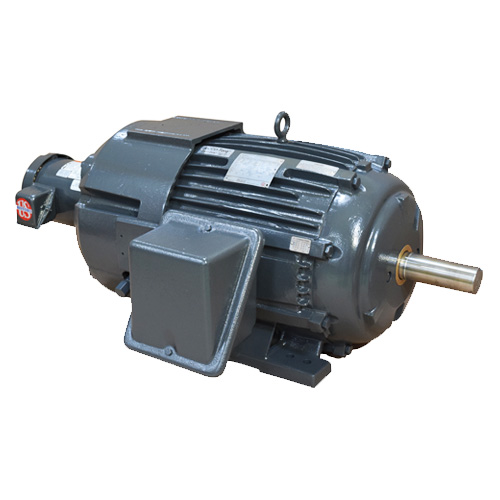

US Motors US Motors B25T3B 25 HP 6-Pole TEBC 3-Phase 1195…
