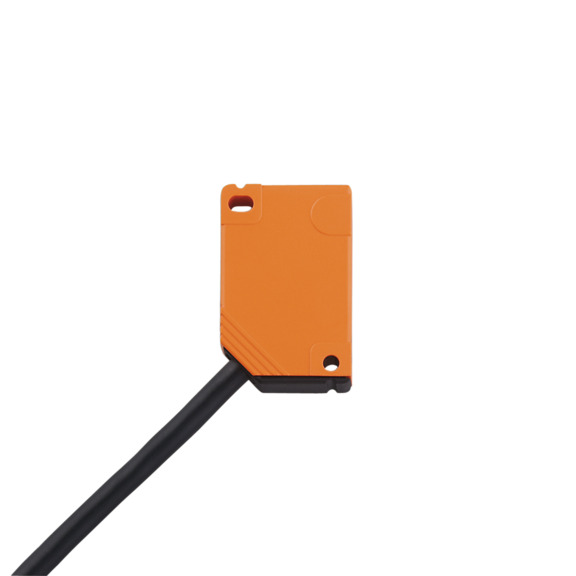

Inductive sensor - IN5121
IFM IN5121 - Inductive sensor - Material: housing: PBT; Weight: 113.1; Ambient temperature: -25...80.
This listing covers the IFM IN5121, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: PBT and Weight: 113.1.
Particularly space-saving rectangular housing; For use where space is restricted; Space-saving connection technology; Very high switching frequency; Wide operating temperature range
Published specifications for this part include Ambient temperature: -25...80; Tightening torque: < 0.5; Protection class: II; Dimensions: 40 x 12 x 26; Product type: Inductive sensor; Mounting: flush mountable; Cable: 2 m, PVC; 3 x 0.5 mm²; Operating voltage: 10...36 DC; Current consumption: 15; (24 V); Reverse polarity protection: yes; Sensing range: 2; Overload protection: yes. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...80 |
|---|---|
| Cable | 2 m, PVC; 3 x 0.5 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | 15; (24 V) |
| Dimensions | 40 x 12 x 26 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...15 |
| Key Features | Particularly space-saving rectangular housing; For use where space is restricted; Space-saving connection technology; Very high switching frequency; Wide operating temperature range |
| Material | housing: PBT |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 2577 |
| Operating distance | 0...1.6 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 2 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 2 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 40 x 12 x 26 mm; Sensing range 2 mm flush mountable; normally open; DC; PNP; 2 m PVC-Cable; IP 67; 3-wire; Ambient temperature -25...80 °C; Switching frequency 1400 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 1400 |
| Tightening torque | < 0.5 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 113.1 |
Frequently Asked Questions
How do I get pricing for IN5121?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IN5121?
IN5121 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IN5121?
Key specifications include Ambient temperature: -25...80; Cable: 2 m, PVC; 3 x 0.5 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Current consumption: 15; (24 V). The full specification table on this page lists every published attribute for this part.
How quickly can IN5121 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
