Inductive sensor - IIS208
IFM IIS208 - Inductive sensor - Weight: 105.7; Ambient temperature: -25...70; Connector: 1 x M12; coding: A; Contacts: gold-plated.
IFM IIS208 is a Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 105.7 and Ambient temperature: -25...70.
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: gold-plated; Protection class: II; Dimensions: M30 x 1.5 / L = 50; Application: Industrial applications; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 15; Overload protection: yes; Special Feature: gold-plated contacts; Increased sensing range. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...70 |
|---|---|
| Application | Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | < 10 |
| Dimensions | M30 x 1.5 / L = 50 |
| Electrical design | PNP |
| Embedded software included | no |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Robust metal housing for use in harsh industrial environments; Clearly visible indication of the switching status; Long sensing range minimizes physical damage; Permanently legible laser type label; For a precise position detection on machines |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1134 |
| Operating distance | 0...12.15 |
| Operating voltage | 10...30 DC |
| Output function | normally closed |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 15 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 15 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 50 mm; Sensing range 15 mm flush mountable; normally closed; DC; PNP; M12 Connector; IP 67; 3-wire; Ambient temperature -25...70 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Thread designation | M30 x 1.5 |
| Weight | 105.7 |
Frequently Asked Questions
How do I get pricing for IIS208?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IIS208?
IIS208 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IIS208?
Key specifications include Ambient temperature: -25...70; Application: Industrial applications; Connector: 1 x M12; coding: A; Contacts: gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
How quickly can IIS208 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

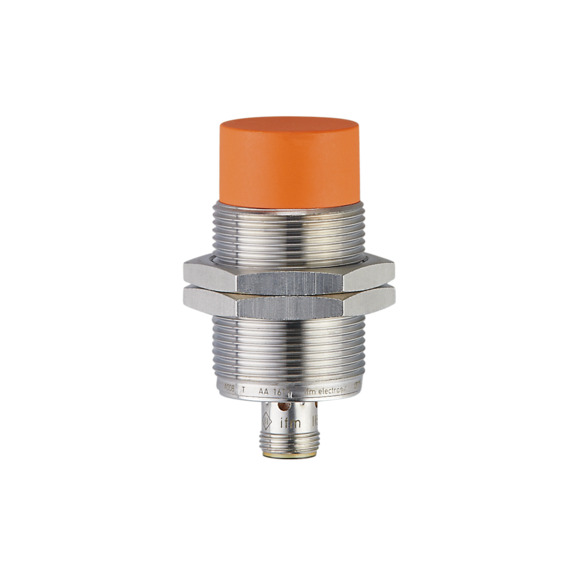

IFM Inductive sensor - IIS207
IFM Inductive sensor - IIS209

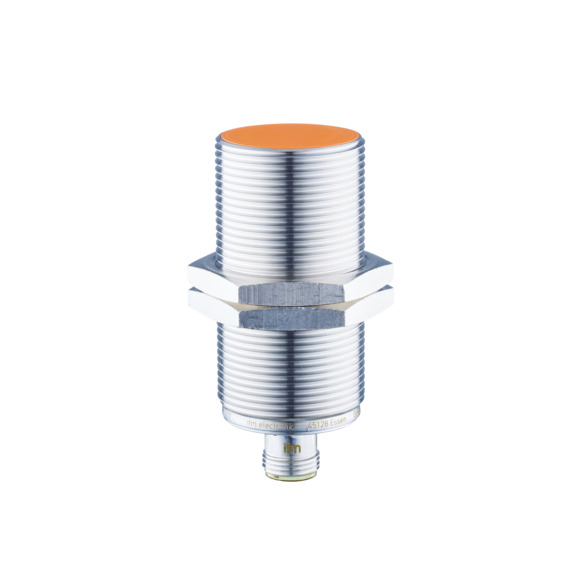

IFM Inductive sensor - IIS206
