Inductive sensor - II5733
IFM II5733 - Inductive sensor - Material: stainless steel (1.4571/316Ti ); sensing face: PBT; Weight: 150.5; Ambient temperature: -25...80.
This listing covers the IFM II5733, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Material: stainless steel (1.4571/316Ti ); sensing face: PBT and Weight: 150.5.
Robust stainless steel housing for use in the food industry; Wide operating temperature range; High protection rating for the requirements of harsh industrial environments; Output function normally open / normally closed programmable; Two-wire technology
Key manufacturer data on file for this item includes Ambient temperature: -25...80; Connector: 1 x M12; coding: A; Contacts: gold-plated; Protection class: II; Dimensions: M30 x 1.5 / L = 78; Application: Industrial applications; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...55 DC; Reverse polarity protection: yes; Sensing range: 15; Overload protection: yes; Special Feature: gold-plated contacts. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -25...80 |
|---|---|
| Application | Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M30 x 1.5 / L = 78 |
| Electrical design | PNP/NPN |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Key Features | Robust stainless steel housing for use in the food industry; Wide operating temperature range; High protection rating for the requirements of harsh industrial environments; Output function normally open / normally closed programmable; Two-wire technology |
| Material | stainless steel (1.4571/316Ti ); sensing face: PBT |
| Max. leakage current | 0.8 |
| Max. voltage drop switching output DC | 4.6 |
| Minimum load current | 4 |
| Mounting | non-flush mountable |
| MTTF | 1835 |
| Operating distance | 0...12.1 |
| Operating voltage | 10...55 DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 400 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 15 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 15 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 78 mm; Sensing range 15 mm non-flush mountable; normally open / closed; (selectable); DC; PNP/NPN; M12 Connector; IP 67; 2-wire; Ambient temperature -25...80 °C; Switching frequency 200 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 200 |
| Thread designation | M30 x 1.5 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 150.5 |
Frequently Asked Questions
How do I get pricing for II5733?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the II5733?
II5733 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of II5733?
Key specifications include Ambient temperature: -25...80; Application: Industrial applications; Connector: 1 x M12; coding: A; Contacts: gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
How quickly can II5733 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - II5729
IFM Inductive sensor - II5735

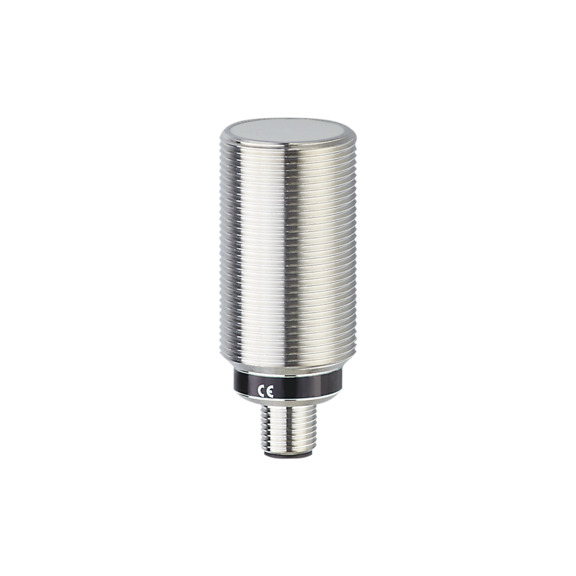

IFM Inductive sensor - II0340
IFM Inductive sensor - II5736

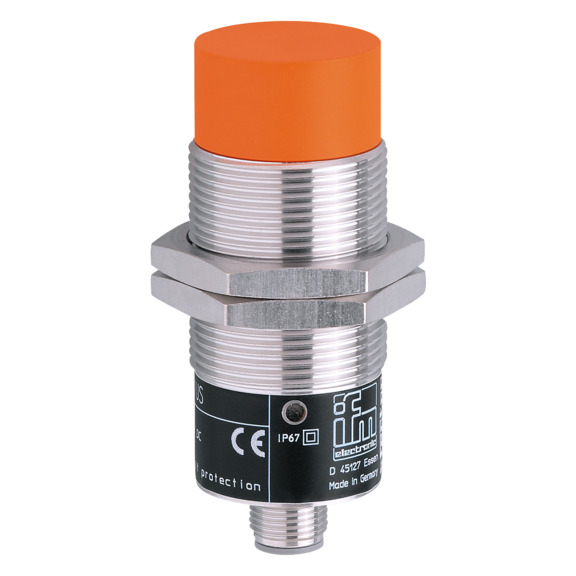

IFM Inductive sensor - II0295
