Garlock BLUE-GARD® Style 3000 Pipe Flange Gaskets

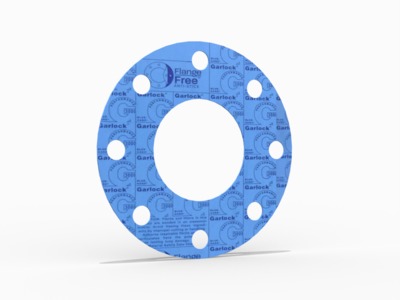

BLUE-GARD® Style 3000 Full Face Gasket, Aramid Fiber with Nitrile Binder (NBR), 4 Inch ASME B16.5 Class 300, 0.250 Inch Thick, 8 Bolt Holes
| Bolt Circle Diameter (Inch) | 7.875 |
|---|---|
| Bolt Circle Diameter (mm) | 200.03 |
| Bolt Hole Diameter (Inch) | 0.875 |
| Bolt Hole Diameter (mm) | 22.23 |
| Bolt Hole Quantity | 8 |
| Brand | BLUE-GARD® |
| Color | Blue |
| Compliances | REACH Compliant, RoHS Compliant |
| Compliances/Standards | REACH Compliant, RoHS Compliant |
| Composition | Aramid Fiber with Nitrile Binder(NBR) |
| Fiber | Aramid |
| Flange Standards/Pressure Class | ASME B16.5 Class 300 |
| Gasket Type | Full Face |
| Inside Diameter (Inch) | 4.5 |
| Inside Diameter (mm) | 114.30 |
| Max Temperature (C) | 371 |
| Max Temperature (F) | 700 |
| Min Temperature (C) | -73 |
| Min Temperature (F) | -100 |
| Nominal Pipe Size (inch) | 4.000 |
| Nominal Pipe Size DN (mm) | 100.0 |
| Nominal Pipe Size Fraction (Inch) | 4 |
| Outside Diameter (inch) | 10.000 |
| Outside Diameter (mm) | 254.00 |
| Pipe Standard and Class | ASME B16.5 Class 300 |
| Pressure Class | 300 |
| Pressure Max (bar) | 70 |
| Pressure Max (psi) | 1000 |
| Primary Dimensional Unit of Measure | Imperial |
| Primary Nominal Thickness | 1/4 in |
| Rubber Chemical Name | Acrylonitrile Butadiene |
| Rubber Material | Nitrile(NBR) |
| Shipping Weight | 0.951 lbs |
| Sort Priority | 600 |
| Style/Model | Style 3000 |
| Temperature Range (C) | -73°C - 371°C |
| Temperature Range (F) | -100°F - 700°F |
| Thickness (inch) | 0.250 |
| Thickness (mm) | 6.35 |
Frequently Asked Questions
How do I get pricing for 36906-5138?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 36906-5138?
36906-5138 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 36906-5138?
Key specifications include Bolt Circle Diameter (Inch): 7.875; Bolt Circle Diameter (mm): 200.03; Bolt Hole Diameter (Inch): 0.875; Bolt Hole Diameter (mm): 22.23. The full specification table on this page lists every published attribute for this part.
How quickly can 36906-5138 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
