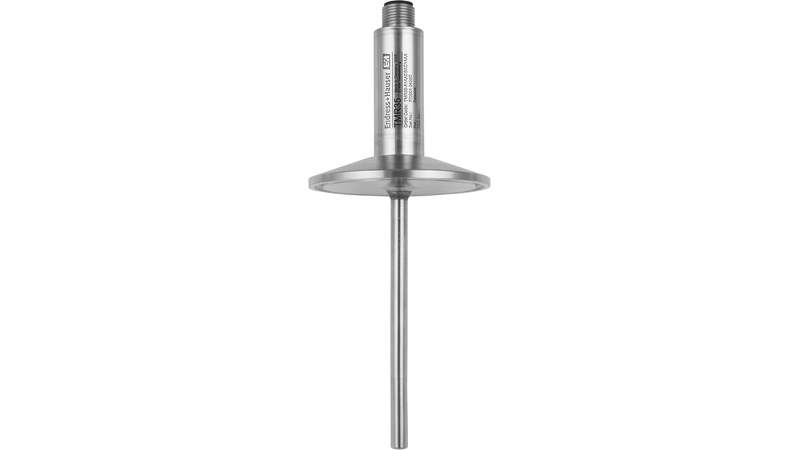

Endress+Hauser TMR35Compact thermometer
Endress+Hauser TMR35 - Temperature - Accuracy: class A acc. to IEC 60751; Response time: t50 = 1 s t90 = 2 s; Measuring principle: Resistance Temperature Detector.
In our catalog, the TMR35 from Endress+Hauser is listed under the Temperature category. The manufacturer's published data for this part number specifies Accuracy: class A acc. to IEC 60751 and Response time: t50 = 1 s t90 = 2 s.
hygienic: conical sealing system G1/2" (metal) clamp connections acc. to ISO 2852 / DIN 32676 screwed pipe joint acc. to DIN 11851 Varivent
The specification set recorded for this part number covers Measuring principle: Resistance Temperature Detector; Certification: 3A Marine approval UL 3111-1; Insert / probe: pipe version, isolated wires, not flexible; Outer diameter protection tube / Insert: 3,0 mm (0,12'') 6,0 mm (0,24''); Max. immersion length on request: up to 600,00 mm (23,62''); Material protection tube/ thermowell: 1.4404 (316L); Tip shape: straight; Surface roughness Ra: 0,4 μm (16 μin.) 0,8 μm (32 μin.); Operating temperature range: PT 100: -50 °C ...200 °C (-58 °F ...392 °F); Max. process pressure (static): at 20 °C: 100 bar (1.450 psi); Integration head transmitter: no (4…20mA Signal). See the Specifications tab on this page for the full technical table.
| Accuracy | class A acc. to IEC 60751 |
|---|---|
| Certification | 3A Marine approval UL 3111-1 |
| Characteristic / Application | metric style compact temperature probe fast response time hygienic design hygienic process connection with or without neck |
| Insert / probe | pipe version, isolated wires, not flexible |
| Integration head transmitter | no (4…20mA Signal) |
| Material protection tube/ thermowell | 1.4404 (316L) |
| Max. immersion length on request | up to 600,00 mm (23,62'') |
| Max. process pressure (static) | at 20 °C: 100 bar (1.450 psi) |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT 100: -50 °C ...200 °C (-58 °F ...392 °F) |
| Outer diameter protection tube / Insert | 3,0 mm (0,12'') 6,0 mm (0,24'') |
| Process Connection | hygienic: conical sealing system G1/2" (metal) clamp connections acc. to ISO 2852 / DIN 32676 screwed pipe joint acc. to DIN 11851 Varivent |
| Response time | t50 = 1 s t90 = 2 s |
| Surface roughness Ra | 0,4 μm (16 μin.) 0,8 μm (32 μin.) |
| Thermowell / protection tube | without (not intended to be used with thermowell) to be used with thermowell incl. Tee-/elbow thermowell |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TMR35?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TMR35?
TMR35 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TMR35?
Key specifications include Accuracy: class A acc. to IEC 60751; Certification: 3A Marine approval UL 3111-1; Characteristic / Application: metric style compact temperature probe fast response time hygienic design hygienic process connection with or without neck; Insert / probe: pipe version, isolated wires, not flexible. The full specification table on this page lists every published attribute for this part.
How quickly can TMR35 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

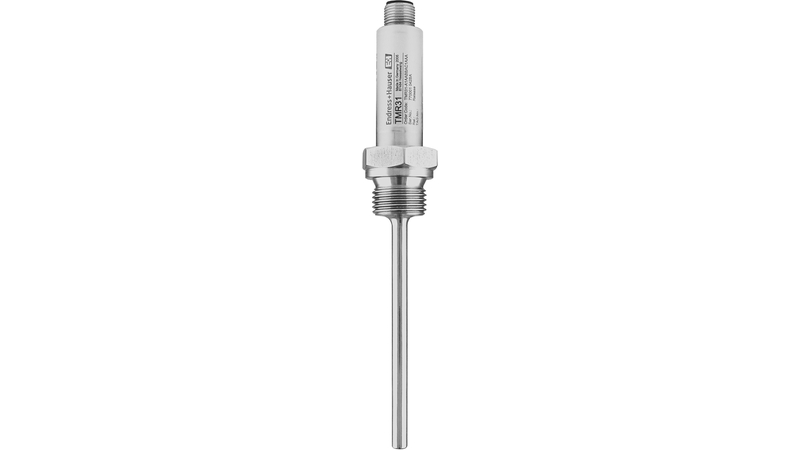

Endress+Hauser Endress+Hauser TMR31Compact thermometer

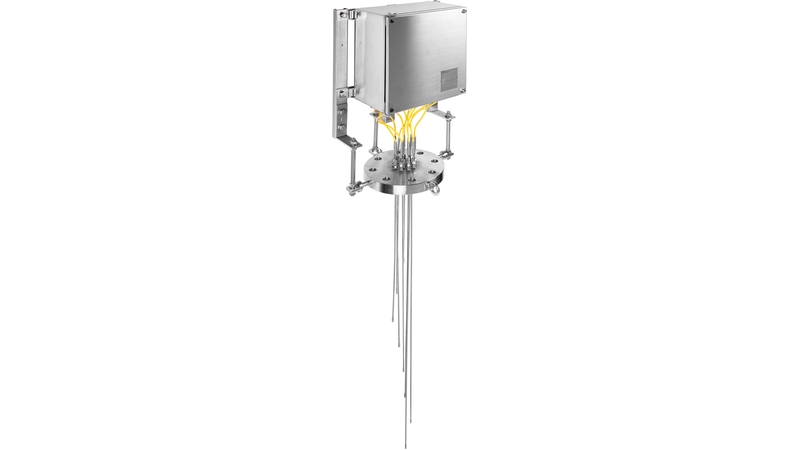

Endress+Hauser Endress+Hauser iTHERM MultiSens Flex TMS01Multipoint thermometer

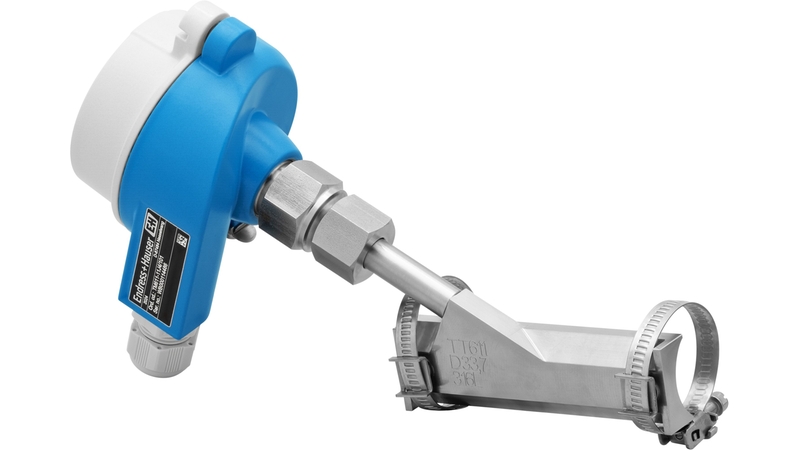

Endress+Hauser Endress+Hauser iTHERM SurfaceLine TM611Surface thermometer
