Endress+Hauser iTHERM TrustSens TM372Compact thermometer
Endress+Hauser TM372 - Temperature - Response time: t50 = 2,5 s t90 =9,5s; Measuring principle: Resistance Temperature Detector; Thermowell / protection tube: without incl. thermowell incl. Tee-/elbow thermowell.
This listing covers the Endress+Hauser TM372, a part number in the Temperature category. The manufacturer's published data for this part number specifies Response time: t50 = 2,5 s t90 =9,5s and Measuring principle: Resistance Temperature Detector.
Weld-in adapter Tri-clamp Clamp-connections according to ISO2852 G3/4" Liquiphant G1" Liquiphant Varivent T- and elbow thermowell
Published specifications for this part include Thermowell / protection tube: without incl. thermowell incl. Tee-/elbow thermowell; Insert / probe: pipe version, isolated wires, not flexible; Outer diameter protection tube / Insert: 1/4'' (6,35 mm) 3/8'' (9,53 mm) 1/2" (12,7 mm); Max. immersion length on request: up to 28'' (711 mm) others on request; Material protection tube/ thermowell: 316L; Tip shape: straight reduced; Surface roughness Ra: 30 μin (0,76 μm) 15 μin (0,38 μm ) 15 μin (0,38 μm ) electropolished; Operating temperature range: PT 100: -40 °C …160 °C (-40 °F …320 °F), optional up to 190 °C (374 °F); Max. process pressure (static): at 20 °C: 40 bar (580 psi); Integration head transmitter: no (4…20mA Signal); Ex - approvals: ATEX IECEx Ex ia CSA C/US IS. The complete technical table is shown in the Specifications tab on this page.
| Characteristic / Application | self-calibrating imperial style compact temperature probe hygienic design hygienic process connection |
|---|---|
| Ex - approvals | ATEX IECEx Ex ia CSA C/US IS |
| Insert / probe | pipe version, isolated wires, not flexible |
| Integration head transmitter | no (4…20mA Signal) |
| Material protection tube/ thermowell | 316L |
| Max. immersion length on request | up to 28'' (711 mm) others on request |
| Max. process pressure (static) | at 20 °C: 40 bar (580 psi) |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT 100: -40 °C …160 °C (-40 °F …320 °F), optional up to 190 °C (374 °F) |
| Outer diameter protection tube / Insert | 1/4'' (6,35 mm) 3/8'' (9,53 mm) 1/2" (12,7 mm) |
| Process Connection | Weld-in adapter Tri-clamp Clamp-connections according to ISO2852 G3/4" Liquiphant G1" Liquiphant Varivent T- and elbow thermowell |
| Response time | t50 = 2,5 s t90 =9,5s |
| Surface roughness Ra | 30 μin (0,76 μm) 15 μin (0,38 μm ) 15 μin (0,38 μm ) electropolished |
| Thermowell / protection tube | without incl. thermowell incl. Tee-/elbow thermowell |
| Tip shape | straight reduced |
Frequently Asked Questions
How do I get pricing for TM372?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TM372?
TM372 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TM372?
Key specifications include Characteristic / Application: self-calibrating imperial style compact temperature probe hygienic design hygienic process connection; Ex - approvals: ATEX IECEx Ex ia CSA C/US IS; Insert / probe: pipe version, isolated wires, not flexible; Integration head transmitter: no (4…20mA Signal). The full specification table on this page lists every published attribute for this part.
How quickly can TM372 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser iTHERM TrustSens TM371Compact thermometer
Endress+Hauser Endress+Hauser iTHERM ModuLine TM401Hygienic modular thermometer
Endress+Hauser Endress+Hauser iTHERM CompactLine TM311Compact thermometer

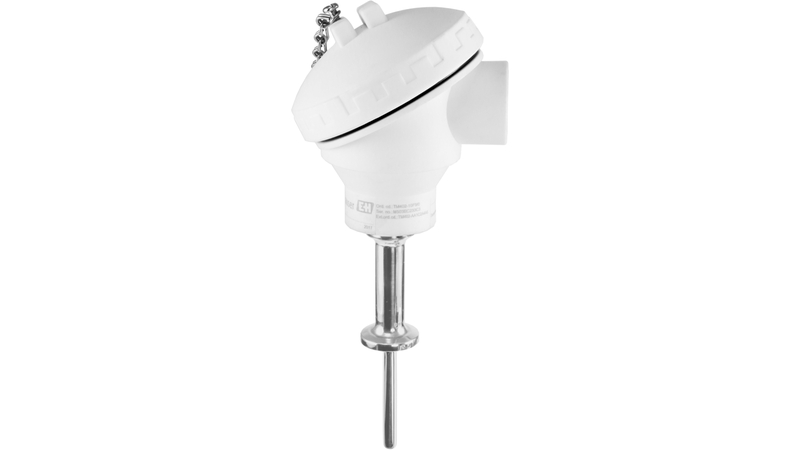

Endress+Hauser Endress+Hauser iTHERM ModuLine TM402Hygienic modular thermometer
