Endress+Hauser iTHERM ModuLine TM152Industrial modular thermometer
| Accuracy | Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2 |
|---|---|
| Certification | SIL (Transmitter), CRN |
| Characteristic / Application | imperial style modular temperature assembly universal range of application suitable for hazardous areas suitable for high process pressures with neck or iTHERM QuickNeck incl. thermowell / protection tube (metal) or to be installed into thermowell can be used with iTHERM StrongSens |
| Ex - approvals | ATEX Ex ec ATEX IECEx Ex ia CSA C/US IS, NI, XP, DIP INMETRO Ex ia |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 316/316L 304/304L Alloy600 AlloyC276 A182 F22 A182 F11 A182 F91 A105 Duplex |
| Max. immersion length on request | 84" |
| Max. process pressure (static) | depending on the configuration up to 500 bar |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT100 TF iTHERM StrongSens: -50 °C ...500 °C (-58 °F ...932 °F) PT100 TF iTHERM QuickSens: -50 °C …200 °C (-58 °F …392 °F) PT100 WW: -200 °C ...600 °C (-328 °F ...1.112 °F) PT100 basic TF: -50 °C ...200 °C (-58 °F ...392 °F) Typ K: max. 1.100 °C (max. 2.012 °F) Typ J: max. 800 °C (max. 1.472 °F) Typ N: max. 1.100 °C (max. 2.012 °F) |
| Optional coating | PTFE coated Tantalum sleeve |
| Outer diameter protection tube / Insert | 5/8" (15.88 mm) 3/4" (19.05 mm) 7/8" (22.2 mm) 1" (25.4 mm) 1.050" (26.7 mm) 1-1/16" (27 mm) 1-1/8" (28.58 mm) 1-1/4" (31.75 mm) 1.315" (33.4 mm) 1-3/8" (34.93 mm) 1-1/2" (38.1 mm) 1.660" (42.16 mm) 1.900" (48.26 mm) |
| Process Connection | Male thread: G1/2", G3/4" NPT1/2", NPT3/4", NPT 1", NPT 1-1/4", NPT 1-1/2" Innen-Gewinde: NPT1/2" Flansche: ASME 1" 150 RF ASME 1" 300 RF ASME 1" 600 RF ASME 1" 900/1500 RF ASME 1 1/2" 150 RF ASME 1 1/2" 300 RF ASME 1 1/2" 600 RF ASME 1 1/2" 900/1500 RF ASME 2" 150 RF ASME 2" 300 RF ASME 2" 600 RF zum Einschweißen: NPS 3/4" (26.7 mm) NPS 1" (33.4 mm) NPS 1-1/4" (42.2 mm) NPS 1-1/2" (48.3 mm) 1-3/8" (34.92 mm) |
| Response time | depending on configuration |
| Surface roughness Ra | 0,76 μm (30 μin.) 1,6 μm (63,0 μin.) |
| Thermowell / protection tube | barstock (drilled) or to be used with thermowell |
| Tip shape | straight tapered stepped |
Frequently Asked Questions
How do I get pricing for TM152?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TM152?
TM152 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TM152?
Key specifications include Accuracy: Class AA acc. to IEC 60751 Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class special or standard acc. to ASTM E230 Class 1 or 2 acc. to IEC 60584-2; Certification: SIL (Transmitter), CRN; Characteristic / Application: imperial style modular temperature assembly universal range of application suitable for hazardous areas suitable for high process pressures with neck or iTHERM QuickNeck incl. thermowell / protection tube (metal) or to be installed into thermowell can be used with iTHERM StrongSens; Ex - approvals: ATEX Ex ec ATEX IECEx Ex ia CSA C/US IS, NI, XP, DIP INMETRO Ex ia. The full specification table on this page lists every published attribute for this part.
How quickly can TM152 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser iTHERM ModuLine TM151Industrial modular thermometer
Endress+Hauser Endress+Hauser iTHERM CompactLine TM311Compact thermometer

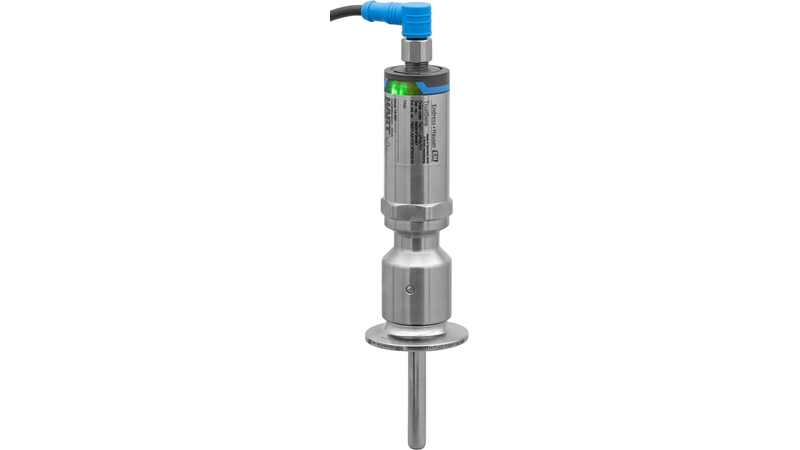

Endress+Hauser Endress+Hauser iTHERM TrustSens TM371Compact thermometer

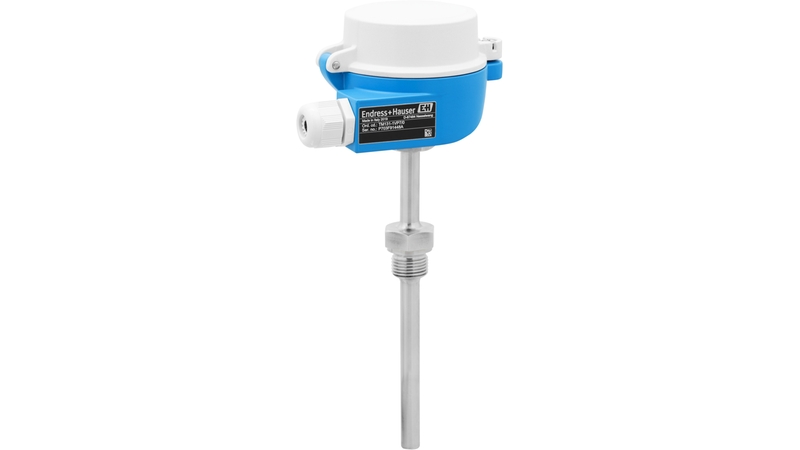

Endress+Hauser Endress+Hauser iTHERM ModuLine TM131Industrial modular thermometer
