Endress+Hauser T54Explosion proof TC thermometer, US style
| Accuracy | Standard acc. to ASTM E-230 Special acc. to ASTM E-230 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | Explosion Proof US style modular temperature assembly for heavy duty applications flanged process connection with extension incl. Thermowell |
| Ex - approvals | FM XP CSA XP FM/CSA XP CSA GP |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 316/316L auf Anfrage |
| Max. immersion length on request | up to 22.5" (571 mm) others on request |
| Max. process pressure (static) | at 20°C : 500bar (7.252 psi) depends on configuration |
| Measuring principle | Thermocouple |
| Operating temperature range | Type T: -270 °C ...400 °C (-454 °F ...752 °F) Type J: -210 °C ...1200 °C (-346 °F ...2.192 °F) Type E: -270 °C ...1.000 °C (-454 °F ...1.832 °F) Type K: -270 °C ...1.372 °C (-454 °F ...2.500 °F) Type N: -270 °C ...1.300 °C (-454 °F ...2.372 °F) |
| Optional coating | available on request |
| Outer diameter protection tube / Insert | 7/8'' (22,23 mm) 17/16'' (26,99 mm) |
| Process Connection | flange: ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1,5" 150 RF (B16.5) ASME 1,5" 300 RF (B16.5) ASME 1,5" 600 RF (B16.5) ASME 2" 150 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) |
| Response time | depending on configuration 63% rt = 15 s |
| Surface roughness Ra | 32 μin (0.80 μm) |
| Thermowell / protection tube | bar stock (drilled) |
| Tip shape | straight tapered |
Frequently Asked Questions
How do I get pricing for T54?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the T54?
T54 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of T54?
Key specifications include Accuracy: Standard acc. to ASTM E-230 Special acc. to ASTM E-230; Certification: SIL (transmitter only); Characteristic / Application: Explosion Proof US style modular temperature assembly for heavy duty applications flanged process connection with extension incl. Thermowell; Ex - approvals: FM XP CSA XP FM/CSA XP CSA GP. The full specification table on this page lists every published attribute for this part.
How quickly can T54 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

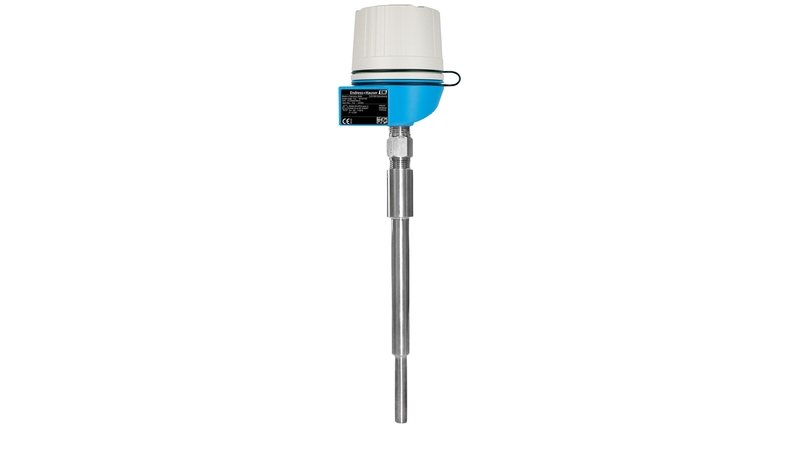

Endress+Hauser Endress+Hauser T53Explosion proof TC thermometer, US style
Endress+Hauser Endress+Hauser T55Explosion proof TC thermometer, US style

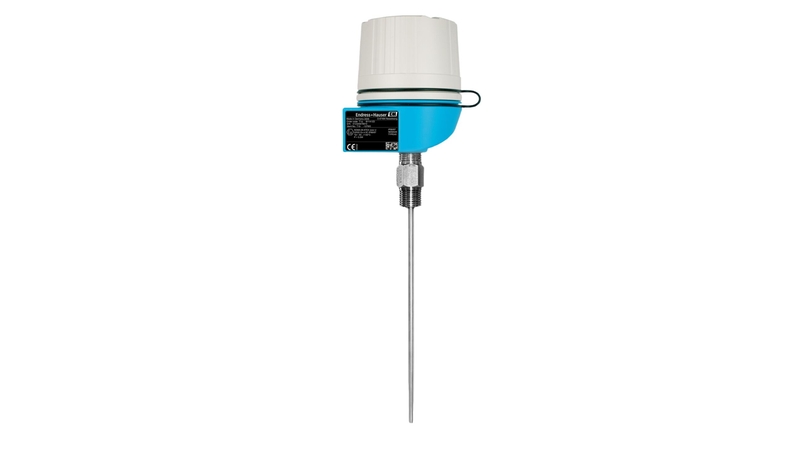

Endress+Hauser Endress+Hauser T15Explosion proof RTD thermometer, US style
Endress+Hauser Endress+Hauser TA550Barstock thermowell

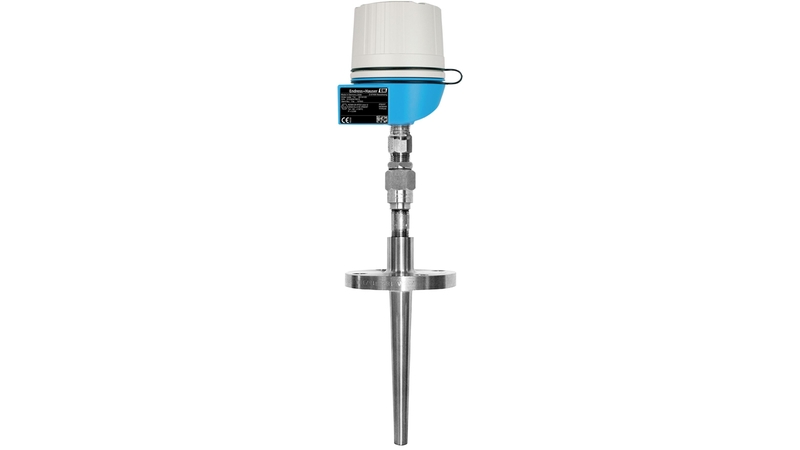

Endress+Hauser Endress+Hauser T14Explosion proof Pt100 thermometer, US style
