Endress+Hauser T15Explosion proof RTD thermometer, US style
| Accuracy | class A acc. to IEC 60751 class B acc. to IEC 60751 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic / Application | Explosion Proof US style modular temperature assembly for heavy duty applications with extension to be used with existing thermowell |
| Ex - approvals | FM XP DIP FM XP NI DIP CSA XP DIP CSA XP NI DIP FM/CSA XP DIP FM/CSA XP NI DIP CSA C/US XP, DIP cCSAus General Purpose |
| Insert / probe | mineral insulated (MI), flexible PTFE-insulated, rigid |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | Sensor sheath 316/316L |
| Max. immersion length on request | up to 100" (2540 mm) others on request |
| Max. process pressure (static) | Not applicable |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT100 WW: -200 °C … 600 °C (-328 °F … 1.112 °F) PT100 TF: -50 °C … 200 °C (-58 °F … 392 °F) |
| Optional coating | Not defined |
| Outer diameter protection tube / Insert | Not applicable |
| Process Connection | male thread: NPT1/2" |
| Response time | 63% rt = 3 s |
| Surface roughness Ra | Not defined |
| Thermowell / protection tube | to be used with thermowell |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for T15?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the T15?
T15 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of T15?
Key specifications include Accuracy: class A acc. to IEC 60751 class B acc. to IEC 60751; Certification: SIL (transmitter only); Characteristic / Application: Explosion Proof US style modular temperature assembly for heavy duty applications with extension to be used with existing thermowell; Ex - approvals: FM XP DIP FM XP NI DIP CSA XP DIP CSA XP NI DIP FM/CSA XP DIP FM/CSA XP NI DIP CSA C/US XP, DIP cCSAus General Purpose. The full specification table on this page lists every published attribute for this part.
How quickly can T15 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser T14Explosion proof Pt100 thermometer, US style
Endress+Hauser Endress+Hauser T53Explosion proof TC thermometer, US style

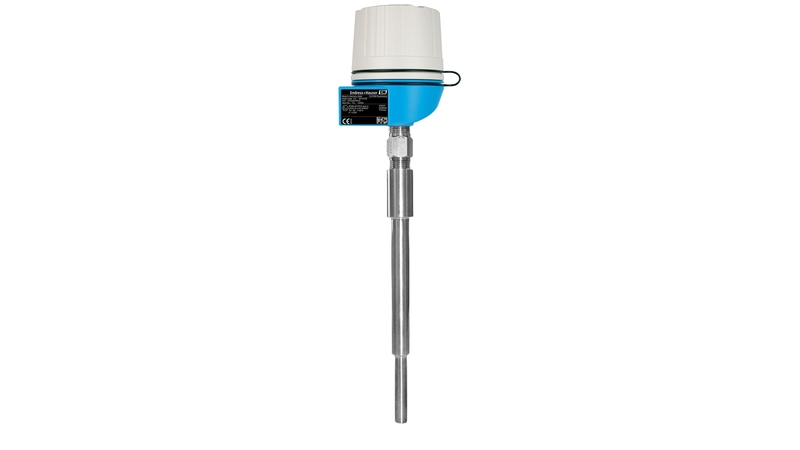

Endress+Hauser Endress+Hauser T13Explosion proof Pt100 thermometer, US style
