Endress+Hauser TA555Barstock thermowell
| Characteristic / Application | metric style various process connections round extension |
|---|---|
| Head connection | internal thread: 1/2" NPT |
| Max. immersion length on request | 5.000 mm (196,85") |
| Max. process pressure (static) | 500 bar (7252 psi) |
| Max. process pressure at 400 °C | 300 bar (4351 psi) |
| Maximum standard immersion length | 900 mm (35,43") |
| Measuring principle | Bar stock Thermowell |
| Medium contact material | 1.4401 (316) 1.4404 (316L) 1.4571 (316Ti) 2.4819 (Alloy C276) 2.4360 (Alloy 400) |
| Process Connection | thread: 1/2" NPT 1" NPT flange: ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1 1/2" 150 RF (B16.5) ASME 1 1/2" 300 RF (B16.5) ASME 1 1/2" 300 RTJ (B16.5) ASME 1 1/2" 600 RF (B16.5) ASME 1 1/2" 600 RTJ (B16.5) ASME 2" 150 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) ASME 2" 300 RTJ (B16.5) ASME 2" 600 RTJ (B16.5) |
| Temperature range | -200...700 °C (-328...1.292 °F) |
| Thermowell root diameter | 24 mm (0,94") |
| Tip shape | straight conical |
| Wetted part finishing (Ra) | < 0.8 μm (31.50 μin) < 1.6 μm (63.00 μin) |
Frequently Asked Questions
How do I get pricing for TA555?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TA555?
TA555 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TA555?
Key specifications include Characteristic / Application: metric style various process connections round extension; Head connection: internal thread: 1/2" NPT; Max. immersion length on request: 5.000 mm (196,85"); Max. process pressure (static): 500 bar (7252 psi). The full specification table on this page lists every published attribute for this part.
How quickly can TA555 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

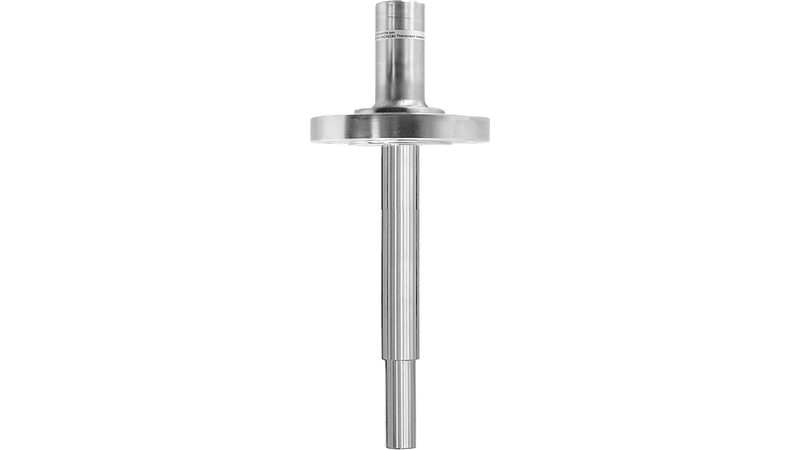

Endress+Hauser Endress+Hauser TA556Barstock thermowell

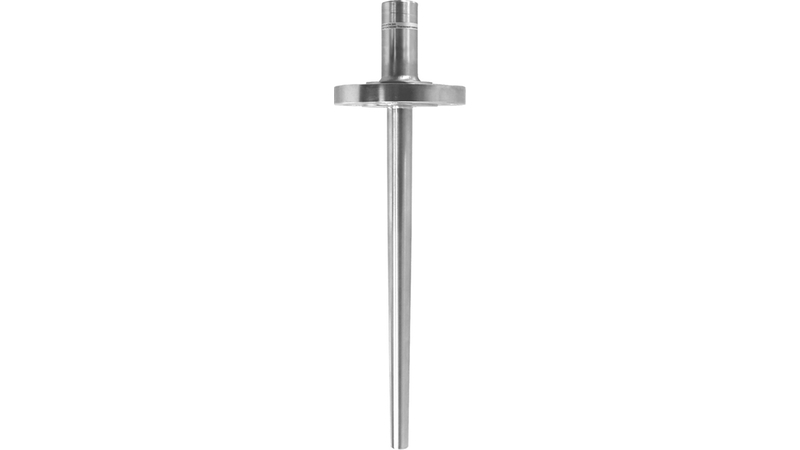

Endress+Hauser Endress+Hauser TA550Barstock thermowell

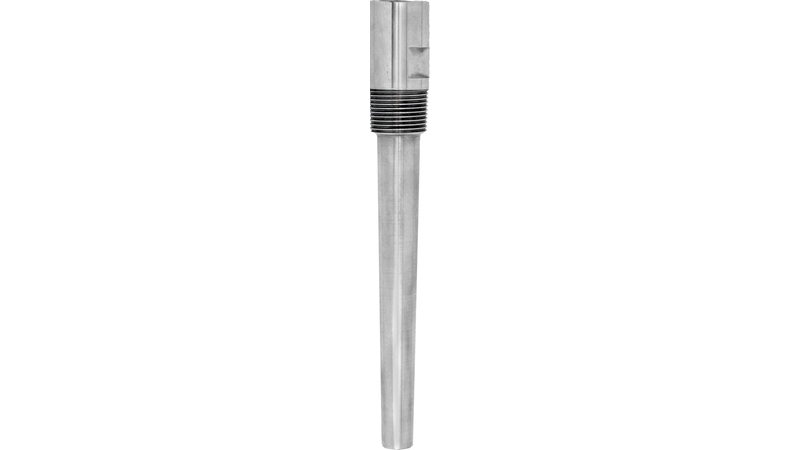

Endress+Hauser Endress+Hauser TA557Barstock thermowell

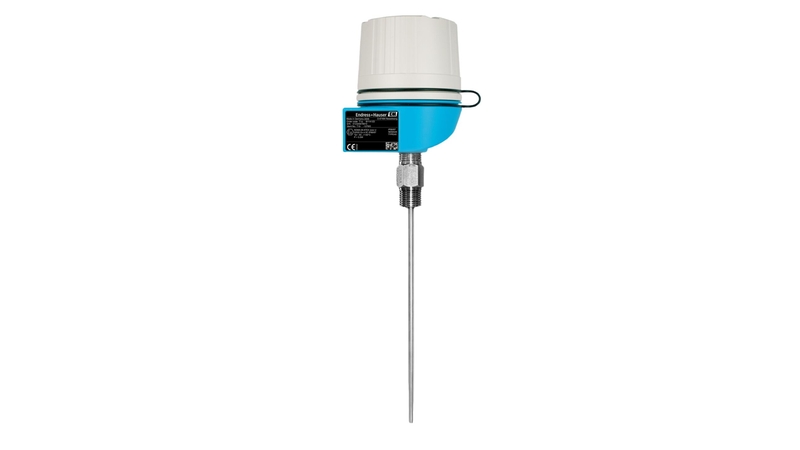

Endress+Hauser Endress+Hauser T55Explosion proof TC thermometer, US style

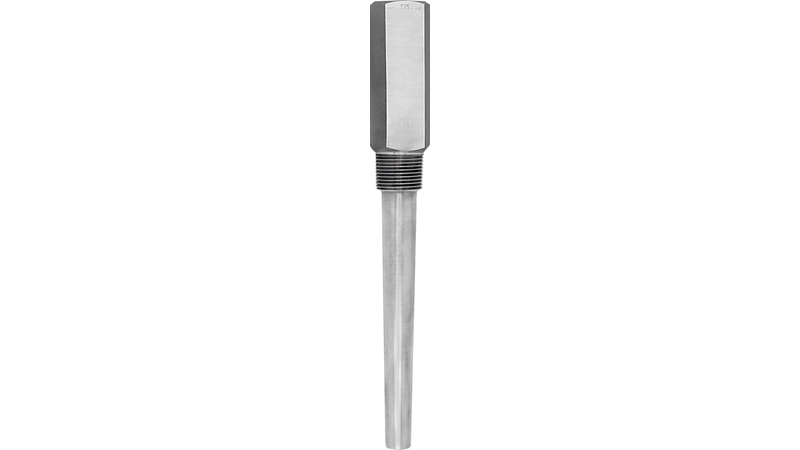

Endress+Hauser Endress+Hauser TA560Barstock thermowell
