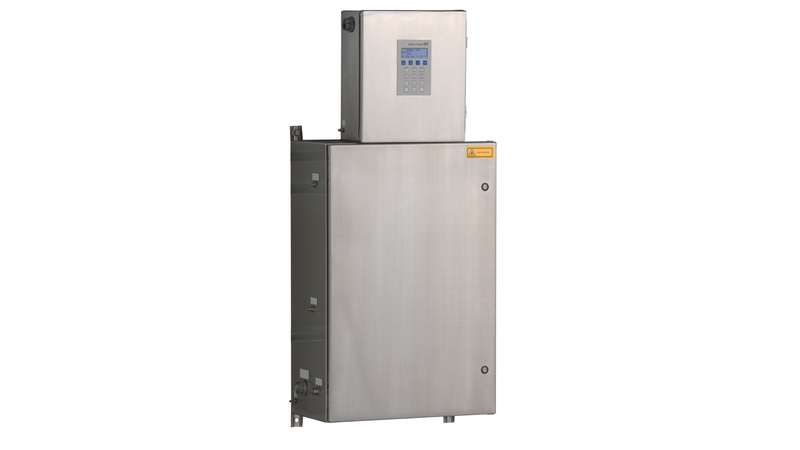

Endress+Hauser SS3000E
Endress+Hauser SS3000E - Optical analysis - Degree of protection: Type 4X; Channels: 2; Measuring principle: TDLAS.
The Endress+Hauser SS3000E is part of the Optical analysis range in our industrial catalog. The manufacturer's published data for this part number specifies Degree of protection: Type 4X and Channels: 2.
Analog Output: Two 4-20mA Isolated, 1200 ohms at 24 VDC max load Serial: RS232C - standard, RS485 and Ethernet - optional Protocol: Modbus Gould RTU or Daniel RTU or ASCII Digital Outputs: 2, General Fault and Concentration/Assignable Alarm
Key manufacturer data on file for this item includes Measuring principle: TDLAS; Hazardous area approvals: CSA Class I, Division 2 CSA Class I, Zone 2; Measured variables: Concentration Moisture Dew Point Cell Pressure Cell Temperature; Ambient temperature range: -20 to 50°C (-4 to 122°F) Optional: -10 to 60°C (14 to 140°F); Analyte and measurement ranges: H2O (Moisture): 0 to 100 ppmv (minimum) 0 to 5000 ppmv (maximum); Analyzer wetted materials: 316L stainless steel FKM O-Rings Glass. See the Specifications tab on this page for the full technical table.
| Ambient temperature range | -20 to 50°C (-4 to 122°F) Optional: -10 to 60°C (14 to 140°F) |
|---|---|
| Analyte and measurement ranges | H2O (Moisture): 0 to 100 ppmv (minimum) 0 to 5000 ppmv (maximum) |
| Analyzer wetted materials | 316L stainless steel FKM O-Rings Glass |
| Channels | 2 |
| Communication | Analog Output: Two 4-20mA Isolated, 1200 ohms at 24 VDC max load Serial: RS232C - standard, RS485 and Ethernet - optional Protocol: Modbus Gould RTU or Daniel RTU or ASCII Digital Outputs: 2, General Fault and Concentration/Assignable Alarm |
| Degree of protection | Type 4X |
| Hazardous area approvals | CSA Class I, Division 2 CSA Class I, Zone 2 |
| Housing materials | Electronics: 304 or 316L stainless steel Sample System Enclosure: 304 or 316L stainless steel |
| Measured variables | Concentration Moisture Dew Point Cell Pressure Cell Temperature |
| Measuring principle | TDLAS |
| Operating Pressure Range | Inlet Pressure: 140 to 350 kPa (20 to 50 psig) Sample Cell: 700 to 1400 mbara or 700 to 1700 mbara (optional) |
| Power Supply | 100 to 240 VAC, 50 to 60 HZ or 18 to 24 VDC - optional 1 Amp maximum at 120 VAC, 1.6 Amps at 24 VDC (unheated) 2 Amps maximum at 120 VAC (heated) |
| Product headline | Dual channel gas analyzer for two moisture (H2O) channels. The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream. Includes a heated enclosure for the sample conditioning system. |
Frequently Asked Questions
How do I get pricing for SS3000E?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SS3000E?
SS3000E is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SS3000E?
Key specifications include Ambient temperature range: -20 to 50°C (-4 to 122°F) Optional: -10 to 60°C (14 to 140°F); Analyte and measurement ranges: H2O (Moisture): 0 to 100 ppmv (minimum) 0 to 5000 ppmv (maximum); Analyzer wetted materials: 316L stainless steel FKM O-Rings Glass; Channels: 2. The full specification table on this page lists every published attribute for this part.
How quickly can SS3000E ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser SS3000

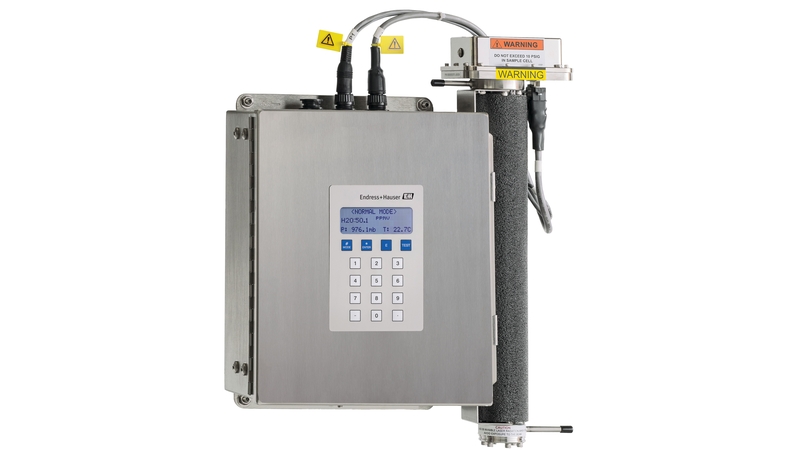

Endress+Hauser Endress+Hauser SS500 moisture analyzer
Endress+Hauser Endress+Hauser SS2100i gas analyzer

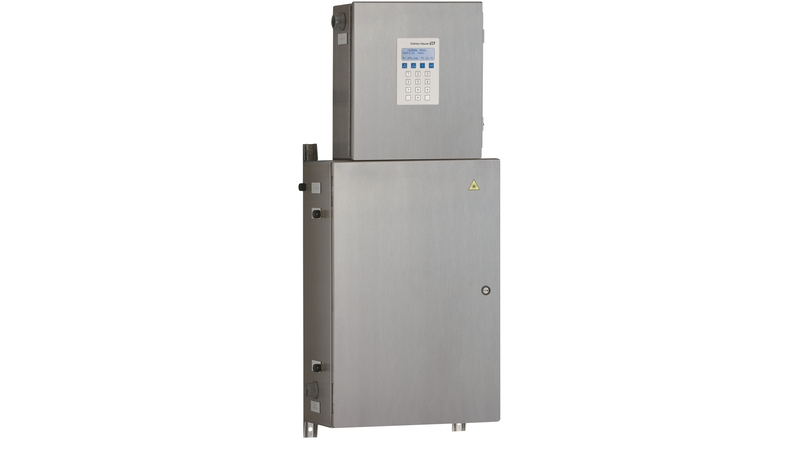

Endress+Hauser Endress+Hauser SS500E
