Endress+Hauser Micropilot FMR62B – 80 GHz radar sensor
| Accuracy | +/-1 mm (0.04 in) |
|---|---|
| Ambient temperature | -40 … +85 °C (-40 … +185 °F) |
| Application limits | Strong turbulences and foam, long stilling wells (>12 m) and bypass -> FMR5x,FMP5x |
| Certificates / Approvals | IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex |
| Characteristic / Application | Premium device for continuous non-contact level measurements, where aggressive media are used; For vessels with many internals |
| Communication | 4...20 mA HART Additional analog or switch output PROFIBUS PA PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
| Design approvals | Acceptance test certificate 3.1, EN10204; NACE MR0175 / ISO 15156; NACE MR0103 / ISO 17945; Declaration of Conformity ASME B31.3; Conformity to cGMP; AD2000; PMI test; CRN approval; Helium leak test; Liquid penetrant test AD2000-HP5-3(PT); Liquid penetrant testing ISO23277-1 (PT); Liquid penetrant testing ASME VIII-1 (PT); Welding documentation (according to ISO or ASME) |
| Frequency | W-Band (~80 GHz) |
| Hygienic approvals | EU Food Contact Material (EC) 1935/2004; US Food Contact Material FDA CFR 21 |
| Main wetted parts | 316L or PTFE (clad 316L flanges) |
| Marine approval | ABS, LR, BV, RINA, DNV |
| Max. measurement distance | 80 m (262 ft) |
| Measuring principle | Level radar |
| Options | Display, Customized settings, App 'SmartBlue' for commissioning and operation via Bluetooth Gas-tight implementation; Overvoltage protection; PWIS free |
| Process Connection | Flange: DN50 ... DN150 ASME 2" ... 8" |
| Process pressure / max. overpressure limit | Vacuum...160 bar (2320 psi) |
| Process temperature | -196 … +450 °C (-321 … +842 °F) |
| Safety approvals | Overfill protection WHG; SIL 2/ SIL 3 |
| Specialities | Heartbeat Technology; SIL 2/3 according to IEC 61508; Bluetooth® commissioning; Operation and maintenance with SmartBlue App; HistoROM; RFID TAG for easy identification; Very narrow beam angle |
| Supply / Communication | 2-wire (HART/ PROFIBUS PA) PROFINET with Ethernet-APL Bluetooth® wireless technology |
Frequently Asked Questions
How do I get pricing for FMR62B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the FMR62B?
FMR62B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of FMR62B?
Key specifications include Accuracy: +/-1 mm (0.04 in); Ambient temperature: -40 … +85 °C (-40 … +185 °F); Application limits: Strong turbulences and foam, long stilling wells (>12 m) and bypass -> FMR5x,FMP5x; Certificates / Approvals: IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex. The full specification table on this page lists every published attribute for this part.
How quickly can FMR62B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Radar measurementMicropilot FMR62
Endress+Hauser Endress+Hauser Micropilot FMR63B – 80 GHz radar sensor
Endress+Hauser Endress+Hauser Micropilot FMR60B – 80 GHz radar sensor

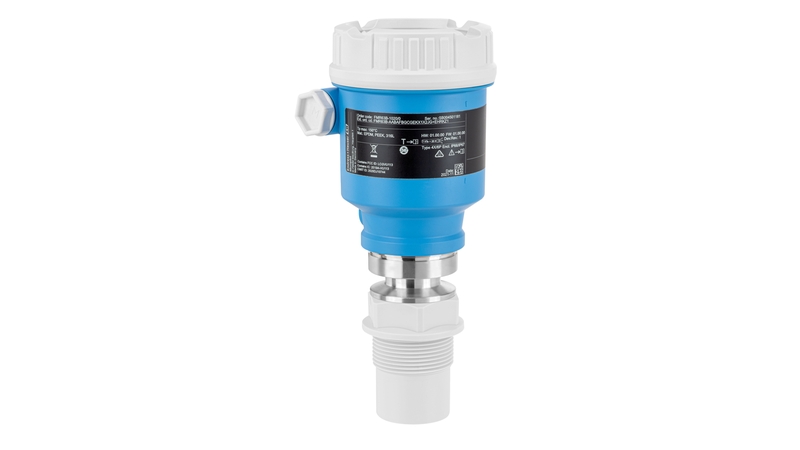

Endress+Hauser Endress+Hauser Micropilot FMR66B – 80 GHz radar sensor
